| Nomen notam |
BAFFERO |
| Usus |
30+Annus |
| MOQ |
1 Set |
| Delivery Time |
25 diebus |
| Warantum Tempus |
XII Menses |
| Certification |
CE/ ISO9001/ BV/ SGS |
| Shipping Portus |
Shanghai vel Ningbo |
| Locus Origin |
China |
Gearbox Information
| Product Name |

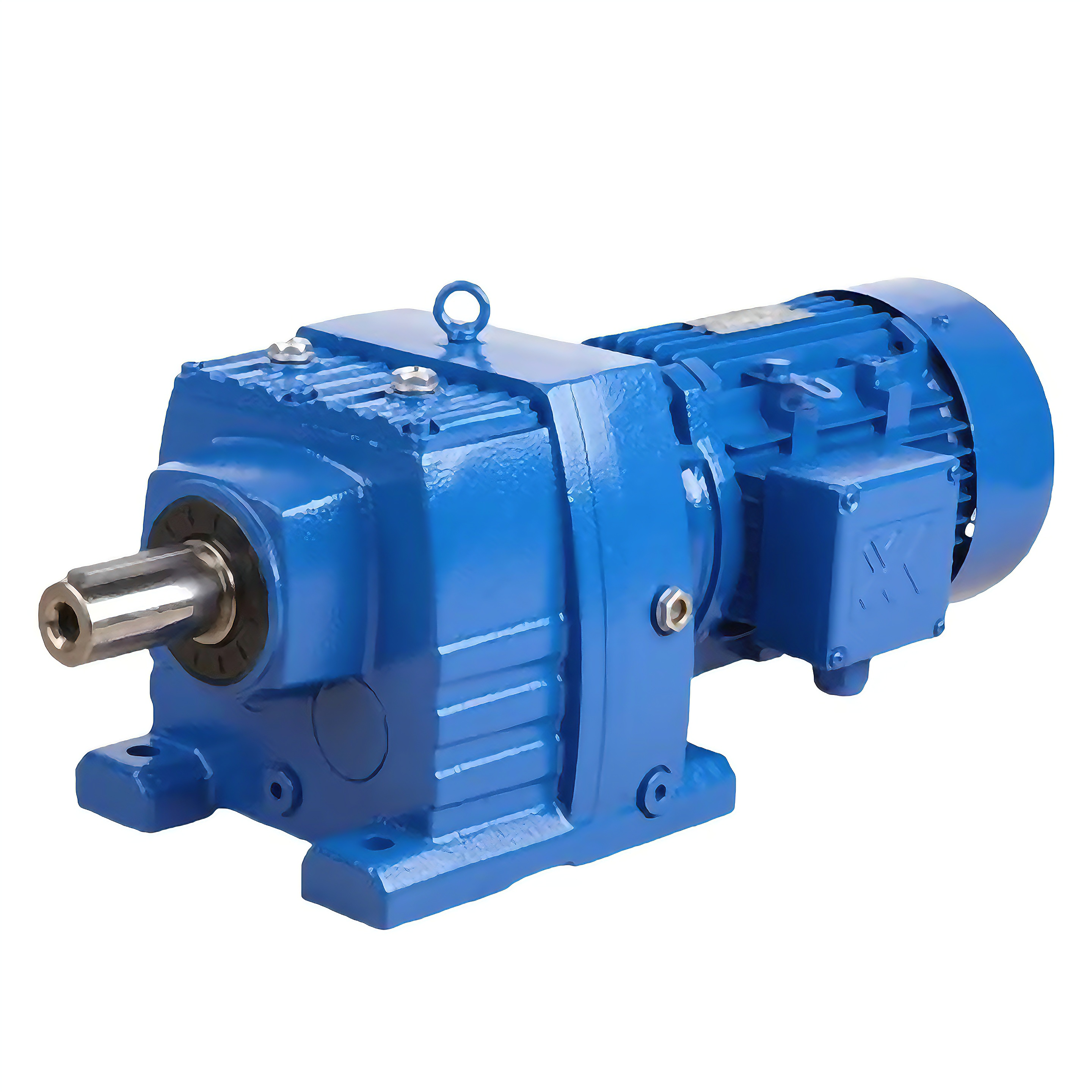

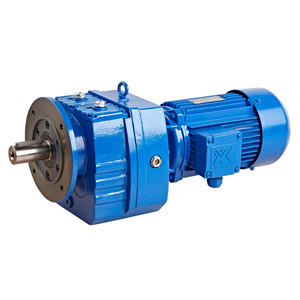

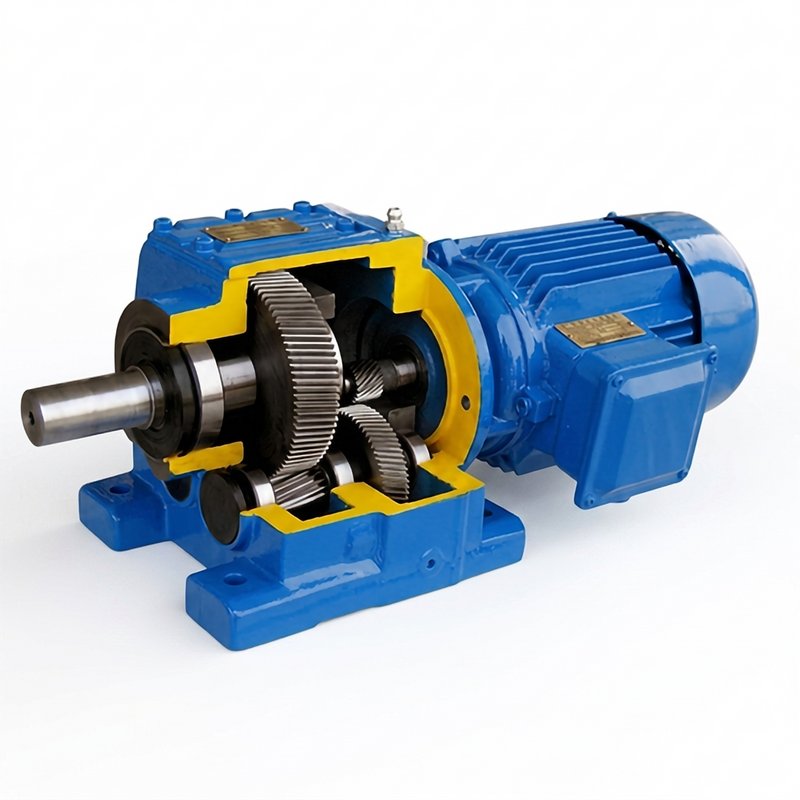

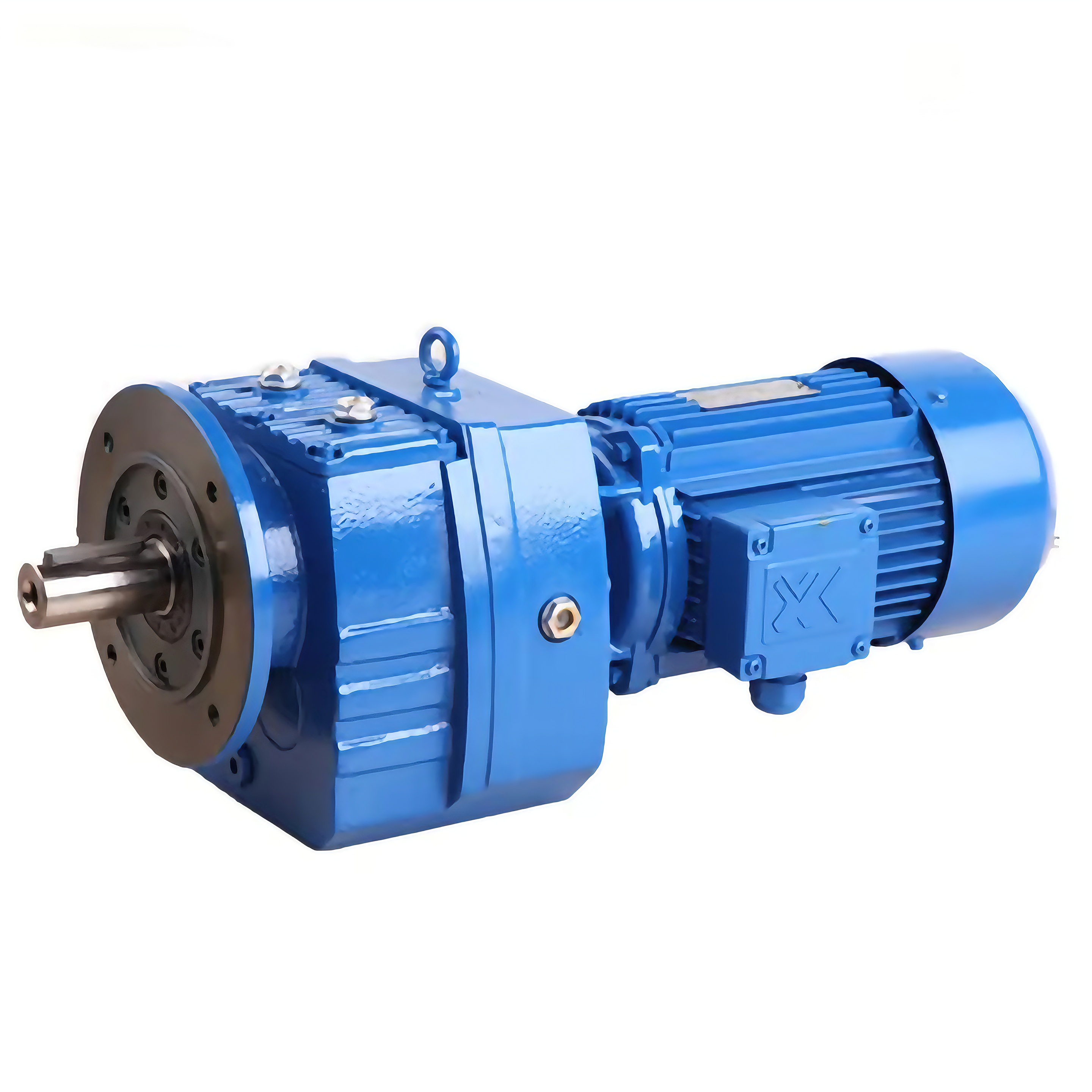

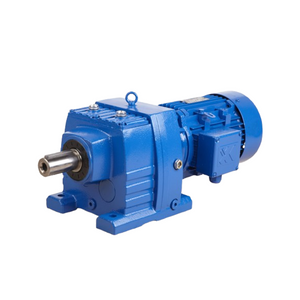

Iunges Helical Apparatus Volo reducers ad Motors |
| Exemplar Number |

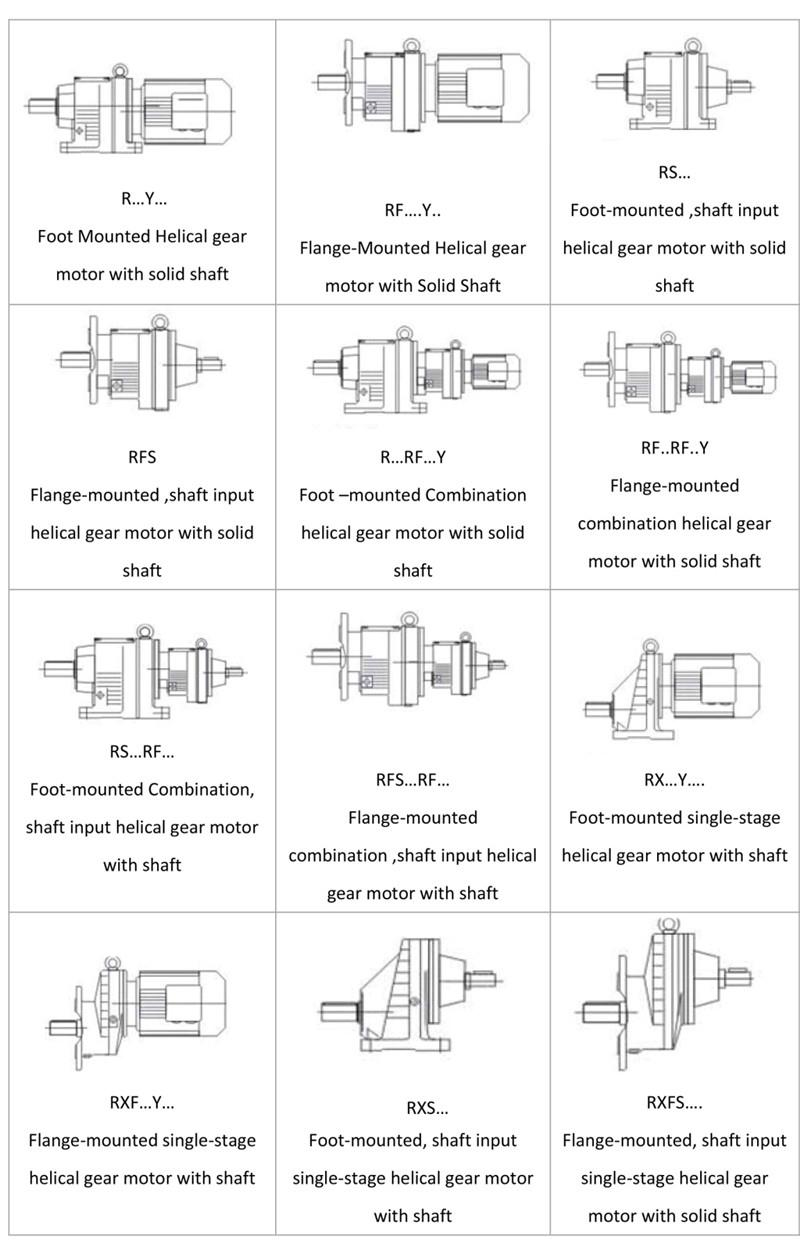

R17~R167/ RF17-RF167/RS17-RS167 |
| Input Power |
0.18~160KW |
| Ratio |
3.37~164.42 |
| Output Torque |
85~18000 Nm |
| Calor Curatio |
Carburizing et exstinguere |
| Apparatus Material |
20CrMnTi |
habitationi Material |
HT200/HT250 validus ferrum |
hastile Material |
40Cr |
Superficiem duritiam anni |
HRC58-62 |
Notam de Bearings |
HRB gravis officium portans, C&U portans |
Machining Precision of Gears |
DIN6 (Ground ) |
Lubricans oleum |
calces oleum |
Input Power Rating And Max Torque
| Magnitudo |
17 |
27 |
37 |
47 |
57 |
67 |
77 |
87 |
97 |
107 |
137 |
147 |
167 |
Structure |
R/RF/RS |
Input potentia rating (kw) |
0.18-0.75 |
0.18-3 |
0.18-3 |
0.18-5.5 |
0.18-7.5 |
0.18-11 |
0.55-22 |
0.55-22 |
0.55-30 |
2.2-45 |
5.5-55 |
11-90 |
11-160 |
Ratio |
3- 75 |
3-135 |
3-135 |
3-167 |
4-186 |
4-165 |
5-195 |
5-246 |
4-264 |
5-245 |
5-223 |
5 -163 |
8-196 |
Max Aureus (Nm) |
85 |
130 |
200 |
300 |
450 |
600 |
820 |
1550 |
3000 |
4300 |
8000 |
13000 |
18000 |
Apparatus Unit Pondus
| Magnitudo |
R17 |
R27 |
R37 |
R47 |
R57 |
R67 |
R77 |
R87 |
R97 |
R107 |
R137 |
R147 |
R167 |
Pondus (kg) |
4 |
5.5 |
8.5 |
10 |
18 |
25 |
36 |
63 |
101 |
153 |
220 |
400 |
700 |
Features Redecer:
Highly Standard Modular Designed
Qualitas materia efficit ut productum reliability
Princeps Fortitudo, Foedus Dimensio
Long Service Vita
Humilis sonitus
Princeps Efficens
Magna radialis loading facultatem
Axial onus facultatem ad V% de radialis onus
Transmissio Efficientia: 2 scaena (ratio: 5-24.8) = 96%
3 scaena (Ratio: 27.2-264) = 94%
R Series Helical Gear reducer FAQ
R Series helicarum calces reducens ordinatur ad altam efficientiam et certas operationes in applicationibus industrialibus ut metallurgia, caementa, soleatus, fans, et materia tractandi systemata. Apta gravi officio continua operatio.
1. Quomodo eligere rectum R series calces helicas reducere?
Exemplar rectam eligere, quaeso provide:
Motor potentia (kW vel HP)
Celeritas input (rpm)
Requiritur output celeritate vel calces ratio
Output torque postulationem
Adscendens genus (pes vel LABIUM)
Applicatio (vehendi, mixer, sentinam, etc.)
Non certa? Contact us gratis exemplar lectionis intra 12 horas.
2. Quaenam est efficientia R series calceorum helicarum?
R series calces reducers utuntur anni helicis, cum efficientia usque ad 95%-98%, superior quam vermis calces reducers.
Specimen industriae salutaris applicationes industriae
3. Quid industriae R series calces reducers utatur?
Late in:
Una solutio pro summa industriae tradendae necessitates
De Us
Zhejiang Baffero Coiens Equipment Co., Ltd. est primarius machinae reducens fabricam cum plus XXVI annis experientiae, specialiter in praecisione calces helicae celeritatis reducentium. Societas cum 300 operariis, 5% R&D dicatis operatur, provectae automationis utitur ad efficientiam qualitatem et sumptus efficaces. Certificatus cum ISO9001 et CE, diversae industriae inservit inter textilia et processus cibi.
Plus quam 34 annos, notionem innovationis humanae ordinandae et scientificae tenendo, semper ingenio condendi et investigationis et progressionis novorum productorum dediti sumus, continenter in investigationibus et evolutionibus investiendis, primum genus instrumenti transmissionis pro clientibus praebere nitentes. Egregia qualitate omnes producti notam BAFFERO prima electione clientium facti sunt et longe venditi sunt in Europam, Americam, Asiam Australem, etc.
