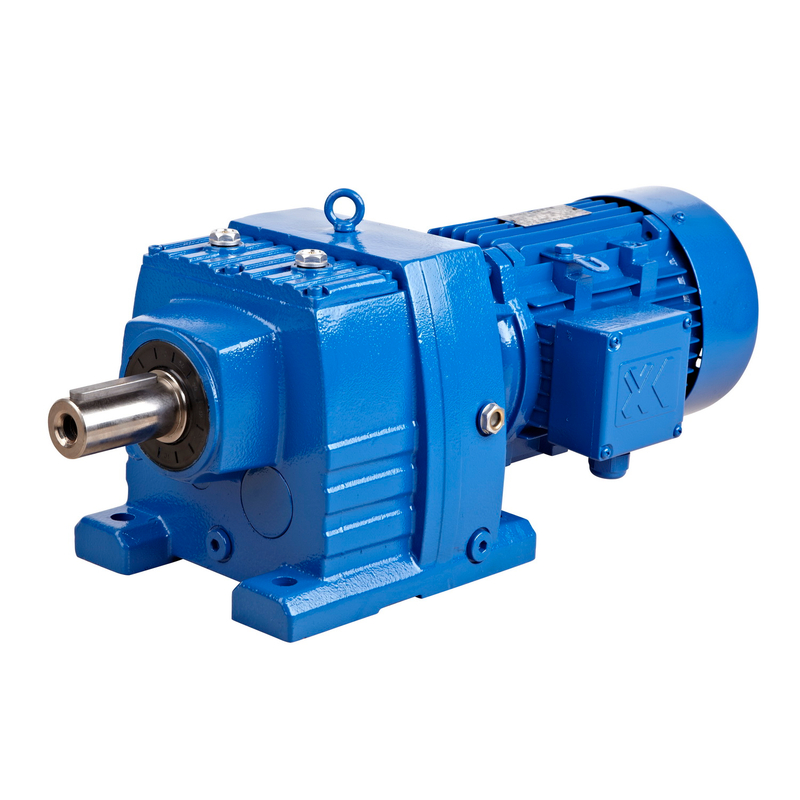

BAFFERO R series coaxial gearbox is in highly standard modular designed. Our gearbox is in China Origin with CE, ISO9001 Certification. The factory which BV real manufacturer Approval is located in Lishui City, Zhejiang Province, China. R series coaxial gearbox use quality material ensures the product reliability: High Strength, Compact Dimension, Long Service Life, Low Noise, High Efficiency, Large Radial Loading Ability, etc. The gear reducer is widely used in Conveyor & Material handling, Mining & Quarry, Crusher & Cement, Automatic Production Line, Transport & Packaging, Food processing & Beverage, Construction & Metal processing, Plastic & Chemical industry, etc.
OVERVIEWS
R series Coaxial gearbox | |
Model | R37/47/57/67/77/87/97/107/137/147/167 RX31/51/61/71/81/91/101/121/151 |
Mounting Position | Flange Mounting, Foot Mounting |
Efficiency | 94%-96% 2 stage (ratio: 5-24.8) = 96% 3 stage (Ratio: 27.2-264) = 94% |
Housing material | HT200/HT250 high-strength cast iron |
Gear material | 20CrMnTi |
Surface hardness of gears | HRC58°-62 ° |
Input / Output shaft material | 40Cr |
Machining precision of gears | Accurate grinding, DIN6 (Ground ) |
Lubricating oil | Gear oil (VG220, VG320, VG460) |
Heat treatment | Carburizing and quenching |
Brand of bearings | C&U bearing |
Brand of oil seal | NAK or other brand |
Noise | less than 75Db |
Temp. rise (MAX) | 40 ℃ |
Temp. rise (Oil)(MAX) | 50 ℃ |
High Strength Low Noise Coaxial Gearbox for Material Handling/Mining/Food Processing/Construction/Chemical Industry
Supply Ability
Supply Ability: 5000 sets per month
Packaging & Delivery
Packaging Details:
Small size: standard export packing (carton)
Big size: standard export plywood case
Port : Main ports in China
Lead Time : Within 20-25 working days after receiving advance payment
INPUT POWER RATING AND MAX TORQUE
Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure | R RF | ||||||||||||
Input power rating (kw) | 0.18- 0.75 | 0.18- 3 | 0.18 3 | 0.18- 5.5 | 0.18- 7.5 | 0.18- 7.5 | 0.18- 11 | 0.55- 22 | 0.55- 30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
(Ratio) | 3.83- 74.84 | 3.37- 135.09 | 3.41- 134.82 | 3.83- 167.65 | 4.39- 189.69 | 4.29- 165.48 | 5.21- 195.24 | 5.36- 246.54 | 4.49- 264.42 | 5.06- 245.5 | 5.15- 223.34 | 5.00- 163.46 | 8.77- 196.41 |
Max torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
