Heavy-duty industrial environments present brutal operational realities daily. Sudden torque spikes frequently push heavy equipment far beyond its designed limits. These abrupt physical forces routinely cause catastrophic mechanical failure in standard gearing systems. Traditional speed reducers simply cannot handle such violent kinetic energy. Plant managers face a constant battle against unexpected equipment breakdowns. Planetary systems often reach their absolute operational limits under extreme mechanical stress. Their standard involute gear teeth suffer from highly concentrated force. This concentrated stress leads directly to sudden shearing and severe mechanical breakdowns. Operators experience complete production halts when these gear teeth snap. Conversely, advanced cycloidal technology relies on a highly unique load-sharing mechanism. It distributes immense impact energy safely across multiple internal components. Engineers and procurement teams desperately need an objective, evidence-based evaluation framework. You must make smart, highly reliable specification decisions for your industrial facilities. This technical guide explores exactly when you should specify a cycloidal gearbox over a standard planetary unit for high-impact applications. You will learn the core mechanical differences between these systems. We will evaluate distinct shock load capacities in detail. Finally, you will understand crucial integration and implementation strategies.
Key Takeaways
Superior Load Distribution: Cycloidal drives keep up to 67% of their components in contact simultaneously, compared to 5–10% in planetary gears, allowing them to withstand shock loads up to 500% of their rated capacity.
Zero-Shear Risk: The rolling action of cycloidal pins and lobes eliminates the vulnerable gear teeth found in traditional gearboxes, drastically reducing catastrophic failure risks.
Compact Footprint: A compact cycloidal drive can achieve high reduction ratios in a single stage, saving significant space compared to multi-stage planetary equivalents.
The Engineering Problem: Why Standard Gearing Fails Under Heavy Shock Loads
Unplanned downtime cripples heavy industry profits and schedules consistently. Sudden torque overloads frequently destroy conventional machinery in seconds. Facilities face massive replacement costs when essential equipment breaks down unexpectedly. We must define this industrial baseline problem clearly. Mining operations, steel milling plants, and bulk material handling systems generate violent kinetic energy. Conveyor belts jam abruptly. Rock crushers swallow uncrushable materials suddenly. These violent events send massive shockwaves straight back into the drive train. The speed reducer absorbs the brunt of this destructive energy. Standard industrial gearboxes simply fail under these brutal conditions. They lack the necessary internal architecture to survive. Planetary gearboxes rely heavily on concentrated point-contact stress. Their involute gear teeth carry massive operational loads constantly. Only a few small gear teeth engage simultaneously during standard operation. All the rotational force concentrates entirely on these few engagement points. When shock loads suddenly exceed the yield strength of the gear material, disaster strikes. The metal teeth shear off completely from the gear body. This catastrophic event causes immediate and total mechanical failure. The entire production line stops instantly. Maintenance teams must then spend days replacing the destroyed components. You urgently need a highly resilient high shock load gearbox. An ideal mechanical solution must deliver exceptional momentary torque tolerance continuously. It must exhibit minimal backlash degradation over its entire operational lifetime. Furthermore, it requires a physical footprint suitable for your existing infrastructure. Standard planetary models simply cannot meet these strict durability criteria. They break down too easily under sudden mechanical duress. Engineers must look toward alternative transmission technologies. You must specify a speed reducer designed explicitly for extreme operational survival.
Mechanism Breakdown: How a Cycloidal Speed Reducer Absorbs Impact
Let us carefully detail the unique internal mechanics of this system. The internal eccentric roller and the cycloidal disc utilize smooth rolling friction. This brilliant design minimizes internal component wear significantly. It also reduces frictional heat generation immensely under extreme mechanical load. A conventional planetary gear constantly slides against its mating teeth. This sliding action generates massive heat and accelerates material wear. A modern cycloidal speed reducer rolls smoothly instead. The internal pins engage the cycloidal lobes seamlessly. This rolling action preserves the integrity of the internal steel materials. Multi-point contact serves as the absolute core technological differentiator. Internal mechanical stress disperses across multiple steel pins and heavy-duty rollers. It never concentrates violently on a single fragile gear tooth. Nearly 67% of the internal cycloidal components maintain simultaneous contact constantly. This massive contact area distributes violent impact energy evenly throughout the heavy iron housing. Planetary systems only keep 5% to 10% of their teeth engaged simultaneously. This drastic difference in surface contact explains the superior durability. Impact forces dissipate safely through the rigid outer ring pins. This fail-safe internal architecture provides incredible mechanical resilience. Even under extreme, completely unpredicted industrial impact, cycloidal components resist sudden breakage. They might deform slightly under immense physical pressure. They absolutely do not shear catastrophically like traditional gear teeth. This inherent flexibility prevents sudden system-wide failures effectively. Equipment operators gain precious time to shut down the machinery safely. The speed reducer survives the initial violent overload intact. Maintenance personnel can inspect the unit without facing a totally destroyed gear train. This unique architectural advantage saves massive amounts of capital.
Comparison Chart: Internal Load Mechanics
Feature
Planetary Gearbox
Cycloidal Speed Reducer
Friction Type
Sliding Friction
Rolling Friction
Component Engagement
5% to 10% simultaneously
Up to 67% simultaneously
Failure Mode
Catastrophic Tooth Shearing
Gradual Material Deformation
Heat Generation
High under heavy loads
Low due to smooth rolling
Head-to-Head: Cycloidal Gearbox vs. Planetary Gearbox in High-Impact Scenarios
Overload Capacity and Durability
Planetary units typically max out at 200% to 300% shock load ratings. They simply cannot survive force beyond this specific threshold. Cycloidal units safely absorb brutal shock loads up to 500% of their rated capacity. This represents a massive advantage for heavy industrial applications. Continuous operational vibration degrades planetary sun gears rapidly over time. Sudden torque spikes literally snap their rigid planetary teeth in half. Cycloidal drives digest continuous harsh vibration easily. They absorb massive momentary torque spikes without any internal fracturing. Their rolling lobes flex and distribute the extreme kinetic energy seamlessly.
Wear and Precision Retention
Mechanical backlash degrades robotic and positional accuracy severely over time. Planetary gears increase internal backlash rapidly as their sliding teeth wear down. This widening gap reduces system precision continuously. Conversely, cycloidal drives maintain their original precision flawlessly over decades. They often retain less than 1 arcmin of backlash over a significantly longer lifecycle. Distributed wear across multiple rolling pins ensures true long-term accuracy. The cycloidal disc profile wears evenly across its entire outer circumference. The system remains tight and highly responsive throughout its entire service life. You do not lose crucial positioning precision.
Form Factor and Space Constraints
Engineers must evaluate the critical size-to-ratio benefit very carefully. An advanced industrial cycloidal reducer achieves incredible ratios up to 119:1 in a single stage. A standard planetary unit requires bulky stacking to achieve this exact same reduction. A compact cycloidal drive fits effortlessly into very tight machinery spaces. Multiple gear stages make planetary gearboxes excessively long and cumbersome. This added length creates significant mounting challenges in cramped industrial facilities. The shortened physical footprint of a cycloidal unit simplifies machine design drastically. It reduces the overhung load on the supporting structural frames.
Implementation Risks and Rollout Considerations

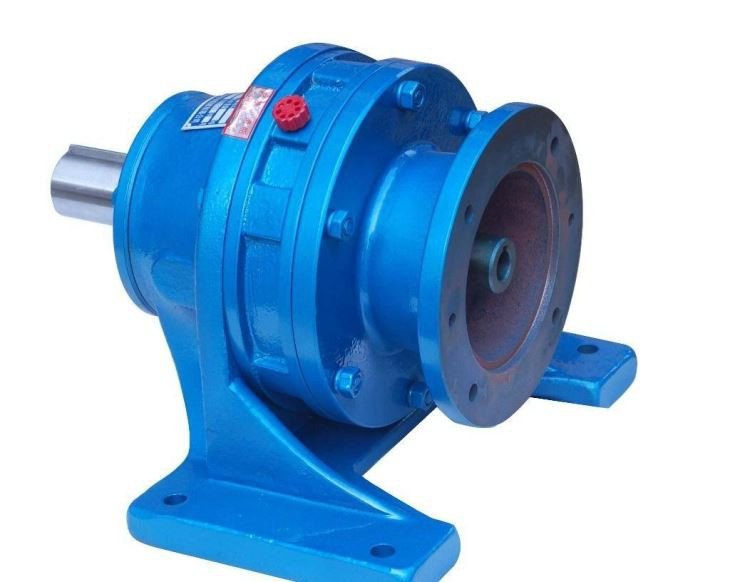

Acknowledge the higher upfront procurement cost immediately. A heavy-duty cycloidal gear motor requires a slightly larger initial capital investment. However, you must frame this expenditure against brutal operational realities. An hour of unplanned downtime costs heavy industry thousands of dollars easily. Preventing just one catastrophic transmission failure justifies the initial procurement expense completely. Plant managers save massive amounts of capital by avoiding emergency replacement parts. You eliminate the expensive rush-shipping fees for massive industrial gears. The upfront premium buys absolute operational peace of mind. Maintain strict engineering objectivity regarding specific application limits. Cycloidal drives are not universally ideal for every single task. They exhibit noticeably higher input inertia than standard planetary models. They also carry a potential for internal vibration at very high input speeds. They are strictly best suited for high-torque, lower-speed, high-impact tasks. Do not specify them for ultra-high-speed continuous rotation applications. Planetary gears still dominate those specific low-torque, high-velocity environments. You must match the transmission technology to the exact kinetic profile of your machinery. Consider mechanical integration realities closely before finalizing your facility designs. Drop-in mechanical replacements require precise mounting alignments. Lubrication requirements vary significantly based on the specific application parameters. Some vertical setups need specialized synthetic extreme-pressure grease. Others demand a complete oil bath for optimal thermal dissipation. You must plan the maintenance access points carefully during the initial installation phase. Do not bury the speed reducer inside an inaccessible machine cavity. Mechanics need clear access to check fluid levels and inspect external seals periodically.
Integration Best Practices
Verify motor shaft alignment thoroughly before final base bolting.
Match the lubrication method strictly to your ambient operating temperature.
Account for the slightly heavier solid iron weight of the cycloidal housing.
Install flexible couplings to mitigate external motor vibrations effectively.
Procurement Framework: Specifying the Right Industrial Cycloidal Reducer
You must calculate the correct application service factor meticulously. Continuous shock load applications demand significantly higher safety margins constantly. A standard operational service factor of 1.0 will fail quickly here. Aim for protective service factors between 1.5 and 2.0 ideally. This elevated rating ensures adequate survival under violent, repetitive industrial impacts. It protects the internal eccentric bearings from premature fatigue failure. Consult the manufacturer directly to confirm the exact service factor calculation. Do not guess these vital mathematical safety margins. Specify the external housing materials and bearing seals carefully. Harsh, particulate-heavy operational environments destroy standard rubber seals rapidly. Mining sites and steel mills contain highly abrasive airborne dust constantly. Choose heavy-duty taconite seals or dual-lip Viton seals explicitly. Request solid ductile iron housings for maximum exterior physical durability. Standard cast aluminum housings crack under extreme structural stress. Upgrading the exterior defenses protects the delicate internal rolling mechanics perfectly. The right seals keep destructive abrasive contaminants out of the lubricating oil bath. Advise your engineering teams on immediate, actionable next steps. Request detailed lifecycle testing data from potential equipment manufacturers. Do not rely solely on standard marketing catalog specifications. Ask for custom torque sizing charts based on your precise load profiles. Demand evidence of successful deployment in similar brutal heavy industries. A reliable manufacturer will provide extensive empirical testing documentation gladly. They should assist your team actively in specifying the correct frame size. Never rush the technical specification phase of a heavy machinery upgrade.
Common Mistakes to Avoid in Procurement
Ignoring momentary peak torque values when determining the final frame size.
Selecting a reducer unit based solely on the nominal running torque.
Overlooking the absolute necessity of high-grade labyrinth seals in dusty environments.
Failing to request empirical lifetime testing data for similar industry applications.
Conclusion
Planetary gearboxes certainly have their rightful place in modern engineering. They perform admirably in high-speed, steady-state robotic applications everywhere. However, heavy industrial applications demand much tougher power transmission solutions. Cycloidal gearboxes remain the highly verifiable choice for heavy shock load survival. Their incredibly unique rolling mechanics eliminate point-contact shear risks entirely. They distribute massive kinetic energy safely across multiple steel pins. You eliminate the constant threat of sudden catastrophic gear failure completely. Your production lines keep running despite violent operational impacts. Take immediate action to secure your critical industrial operations today. Consult directly with a qualified power transmission application engineer. Request a comprehensive lifecycle performance evaluation for your heavy equipment. Download a detailed technical specification sheet tailored to your specific load requirements. Protect your vital manufacturing facility from devastating mechanical failures. Upgrade your vulnerable planetary systems to highly resilient cycloidal technology. You will drastically improve your overall machinery reliability and production uptime.
FAQ
Q: Can a cycloidal gearbox directly replace a planetary gearbox in an existing setup?
A: Yes, direct physical replacement is frequently possible. You must match the specific footprint, shaft sizing, and adapter flange availability closely. Many manufacturers offer custom transitional mounting flanges. These adapters allow a cycloidal gearbox to bolt directly onto existing machinery mounts seamlessly without extensive modifications.
Q: What is the typical lifespan of a cycloidal speed reducer under frequent shock loads?
A: The operational lifespan varies based on impact frequency and maintenance schedules. Under continuous heavy shock loads, well-maintained units easily exceed 20,000 operational hours. Intermittent impact applications often push this lifespan far beyond 50,000 hours. Proper extreme-pressure lubrication remains absolutely critical for maximizing longevity.
Q: Do cycloidal gearboxes require special lubrication?
A: Standard industrial maintenance procedures generally apply here. However, high-friction internal load sharing requires careful lubrication management. Manufacturers usually recommend specific extreme-pressure (EP) grease or high-grade synthetic oil. An oil bath provides the absolute best thermal protection for continuous heavy-duty industrial cycles.
Q: Why is a compact cycloidal drive capable of higher single-stage ratios than a planetary drive?
A: Planetary reduction relies strictly on the mathematical limits of the sun and ring gears. You must stack multiple gear stages physically to achieve high ratios. A cycloidal drive uses an eccentric disc and internal pin mechanism instead. This unique mathematical geometry allows massive reduction ratios up to 119:1 in one single stage.
