| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| Experience | 30+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
Gearbox Information

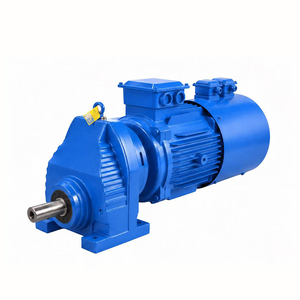

| Product Name | Helical gear reduction motor |
| Model Number | R17~R167/RF17-RF167/RS17-RS167/RM17~RM167 |
| Input Power | 0.18~160KW |
| Ratio | 3.37~264.42 |
| Output Torque | 85~18000 N.m |
| Heat Treatment | Carburizing and quenching |
| Gear Material | 20CrMnTi |
Housing Material | HT200/HT250 high-strength cast iron |
Shaft Material | 40Cr |
Surface Hardness of Gears | HRC58-62 |
Brand of Bearings | HRB heavy-duty bearing, C&U bearing |
Machining Precision of Gears | DIN6 (Ground ) |
Lubricating Oil | Gear oil |
Input Power Rating And Max Torque
| Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure | R/RF/RS/RM | ||||||||||||
Input power rating (kw) | 0.18-0.75 | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.18-7.5 | 0.18-11 | 0.55-22 | 0.55-22 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
Ratio | 3- 75 | 3-135 | 3-135 | 3-167 | 4-186 | 4-165 | 5-195 | 5-246 | 4-264 | 5-245 | 5-223 | 5 -163 | 8-196 |
Max torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
Gear Unit Weight
| Size | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
| Weight(kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 400 | 700 |
Reduecer Features:
Highly Standard Modular Designed
Quality material ensures the product reliability
High Strength, Compact Dimension
Long Service Life
Low Noise
High Efficiency
Large radial loading ability
Axial load ability of up to 5% of radial load
Transmission Efficiency: 2 stage (Ratio: 5-24.8) = 96%
3 stage (Ratio: 27.2-264) = 94%
Application Examples:
Belt conveyor drives
Bucket elevator drives
Agitator drives
Hoisting gear drives
Travelling gear drives
Paper machine drives
Dryer drives
Water screw drives
R Series Helical Gear Reducer FAQ
The R series helical gear reducer is designed for industrial applications requiring stable torque transmission and high operational efficiency. With optimized gear design and precision manufacturing, it ensures reliable performance in continuous working environments.
1. Can you supply motor + gearbox (gearmotor)?
Yes, we provide complete solutions:
IEC standard motors
Variable frequency motors
Explosion-proof motors
Brake motors
2. What mounting options are available?
Foot-mounted
Flange-mounted
Inline installation
Supports multiple mounting positions (M1–M6)
3. What output shaft types are available?
Solid shaft
Hollow shaft
Custom shaft size and keyway supported
4. Why choose your company as supplier?
35+ years manufacturing experience
Strict quality control system
Competitive factory price
Fast response (within 2 hours)
Exported to Europe, USA, Southeast Asia
CE & ISO Certified
Fast Delivery
Still not sure which model fits your application?
Send us your requirements now — we will recommend the best solution with price within 12 hours.
About Zhejiang Baffero
Zhejiang Baffero Driving Equipment Co., Ltd. is a leading manufacturer specializing in high-performance power transmission solutions. Based in Zhejiang, China, we integrate R&D, precision manufacturing, and global sales to provide robust industrial gearboxes.
Our core expertise lies in HB Series high-power gearboxes, DP / NSeries planetary units, and R/K/F/S modular geared motors. Utilizing advanced CNC technology and modular design, we deliver reliable, efficient, and cost-competitive drive solutions for industries such as mining, material handling, and automation worldwide.
