Industrial hydraulic systems depend heavily on reliable power transmission. Engineers designing hydraulic drives often face a practical decision when selecting a gearbox configuration: should they choose a planetary gearbox or a helical gearbox? Both technologies are proven solutions widely used in industry, and each has advantages depending on the working environment and mechanical requirements. However, when compact structure, high torque density, and integration with hydraulic motors are critical, a Hydraulic Planetary Gearbox often becomes the preferred choice. Understanding the differences between planetary and helical gear systems helps engineers and equipment manufacturers design drive systems that deliver the right balance of performance, reliability, and efficiency.
The fundamental difference between planetary and helical gearboxes lies in how they transmit torque and how their gears are arranged within the housing.
Helical gearboxes use gears mounted on parallel shafts. Power flows from one shaft to another through angled gear teeth that mesh smoothly during rotation. This design is common in many industrial machines because it is simple, reliable, and easy to maintain.
Planetary gearboxes operate differently. Instead of using parallel shafts, planetary systems use a central sun gear surrounded by multiple planet gears that rotate inside a ring gear. The planet gears revolve around the sun gear while also spinning on their own axes.
Because several gears share the load simultaneously, planetary gear systems distribute torque more evenly across multiple contact points.
Helical gearboxes often require longer housings because gears are arranged sequentially along shafts. When multiple reduction stages are required, the gearbox length increases.
Planetary gearboxes place multiple gears around a central axis, allowing several gear stages to be stacked in a compact arrangement. This structure enables higher torque output without significantly increasing gearbox size.
Hydraulic equipment often requires gearboxes that fit into compact machine structures while delivering strong torque output. The coaxial layout of planetary gearboxes allows direct integration with hydraulic motors, making them particularly suitable for mobile machinery and high-torque applications.
Planetary gear systems offer several advantages that are especially valuable in hydraulic applications.
Torque density refers to the amount of torque a gearbox can transmit relative to its physical size. Planetary gearboxes achieve high torque density because torque is distributed across multiple planet gears rather than concentrated on a single gear pair.
This allows planetary gear systems to transmit high torque levels while maintaining compact dimensions.
Hydraulic motors are commonly mounted directly to gearboxes. Planetary gearboxes share the same central axis as the motor shaft, which simplifies installation and reduces the overall footprint of the drive system.
In contrast, helical gearboxes may require additional couplings or intermediate shafts to connect with hydraulic motors.
Mobile machinery, mining equipment, and heavy-duty industrial systems often experience sudden load spikes. Planetary gearboxes handle these shock loads more effectively because the load is shared across multiple gears.
This improves durability and reduces the risk of gear tooth damage under extreme operating conditions.
Despite the advantages of planetary gear systems, helical gearboxes remain widely used in many industrial applications.
Helical gearboxes have relatively straightforward mechanical layouts, making them suitable for stationary industrial machinery such as conveyors, pumps, and mixers.
These applications often have fewer space constraints and more predictable operating loads.
Because helical gearboxes use parallel shafts and simpler internal arrangements, maintenance and inspection can sometimes be easier compared with more compact planetary gear systems.
This can be beneficial in industrial plants where maintenance accessibility is important.
In applications where there is sufficient installation space, a larger helical gearbox may be acceptable. For example, fixed equipment in processing plants may prioritize accessibility and ease of servicing over compactness.
Both gearbox types offer high mechanical efficiency, but their performance characteristics differ depending on operating conditions.
Planetary gearboxes maintain multiple gear contacts simultaneously, distributing torque across several gear teeth. This balanced load sharing reduces stress on individual components and improves durability.
Helical gears feature angled teeth that engage gradually during rotation. This design produces smooth and quiet operation, which can be beneficial in some industrial settings.
While both gearbox types can achieve high efficiency, real-world performance depends on factors such as load conditions, lubrication quality, and mechanical alignment. The most efficient gearbox is often the one best matched to the specific operating environment.
Understanding how these gearboxes perform in actual hydraulic systems helps clarify when each type is most appropriate.
Mobile machines such as excavators, compact track loaders, and drilling equipment require compact drivetrains capable of delivering high torque. Planetary gearboxes are commonly used in these systems because they combine strong torque output with compact design.
Applications that require slow rotational speeds and high torque often benefit from planetary gear systems. Winches, lifting equipment, and heavy-duty mixers are typical examples.
Hydraulic systems in fixed industrial plants may have more available installation space. In these cases, helical gearboxes may provide a suitable solution due to their simpler construction and easier accessibility.
Choosing between planetary and helical gearboxes requires careful consideration of several engineering factors.
Many buyers focus only on nominal torque ratings when comparing gearboxes. However, factors such as shock loads, duty cycles, and environmental conditions can significantly affect gearbox performance.
The physical dimensions of the gearbox must fit within the equipment layout. A gearbox that appears suitable on paper may not integrate easily into the machine structure.
Machines operating in construction, mining, or heavy processing environments often experience unpredictable load changes. Gearboxes must be capable of handling these variations without excessive wear.
For many hydraulic drive systems, planetary gear technology offers practical advantages.
Machines with limited installation space benefit from the compact coaxial structure of planetary gearboxes.
Planetary gear systems transmit high torque efficiently due to load sharing across multiple gears.
Equipment operating under severe duty cycles requires gearboxes capable of handling shock loads and continuous heavy operation.
ZHEJIANG BAFFERO DRIVING EQUIPMENT CO., LTD. has specialized in the development and manufacturing of transmission equipment for more than three decades. Since 1991, the company has focused on providing reliable reducers for industries such as metallurgy, mining, lifting machinery, environmental engineering, petrochemical processing, and heavy industrial production.

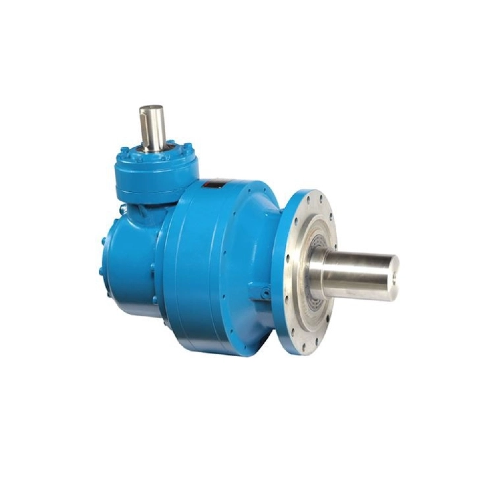

BAFFERO planetary gear reducers are designed with modular configurations that cover a wide range of torque capacities. This allows engineers to select gearbox solutions suitable for different hydraulic drive systems.
Compact planetary gear designs can often replace larger gearbox systems while maintaining the same torque performance. Custom interfaces and mounting configurations allow the gearbox to integrate directly with hydraulic motors.
Each industrial machine has unique operating conditions. Selecting the appropriate gearbox requires careful evaluation of torque requirements, space limitations, and working environments.
BAFFERO focuses on providing gearbox solutions tailored to real operating conditions, ensuring reliable performance in demanding applications.
Comparison Factor | Planetary Gearbox | Helical Gearbox | Better Choice When |
Torque density | Very high due to load sharing | Moderate | High torque required |
Size | Compact coaxial design | Larger footprint | Limited installation space |
Load distribution | Multiple gears share load | Single gear pair per stage | Heavy-duty applications |
Maintenance access | More compact internal structure | Easier visual inspection | Accessibility preferred |
Typical applications | Mobile machinery, winches, track drives | Conveyors, pumps, plant equipment | Depends on system design |
Both planetary and helical gear systems remain essential technologies in modern industrial transmission design. However, hydraulic equipment often requires compact drive systems capable of delivering high torque and resisting harsh operating conditions. In these situations, planetary gear technology provides significant advantages in terms of torque density, structural efficiency, and integration with hydraulic motors. For engineers designing demanding hydraulic systems, a planetary reduction gearbox developed by ZHEJIANG BAFFERO offers a reliable solution that combines strong mechanical performance with flexible configuration options. Contact us to learn more about our planetary gearbox solutions and how they can support your hydraulic equipment applications.
Planetary gearboxes distribute load across multiple planet gears, while helical gearboxes transmit power through gears mounted on parallel shafts.
Their compact structure and high torque density allow them to convert hydraulic motor speed into strong output torque efficiently.
Both gearbox types can achieve high efficiency. The best choice depends on the application, installation space, and operating conditions.
Hydraulic systems that require compact design and strong torque output often benefit from planetary gear technology.
