Shaft-mounted helical gear motors are a vital component in many industrial applications, where power transmission and space efficiency are of utmost importance. These specialized gear units are mounted directly onto the driven shaft, eliminating the need for additional couplings and baseplates. This design offers several operational and installation benefits, including reduced maintenance, compactness, and high torque transmission. In this article, we will explore what shaft-mounted gear units are, how they work, their key advantages, and their importance in industrial systems like conveyors, material handling, and bulk processing.
Shaft-mounted gear units are a departure from traditional gear systems in several important ways. Traditional gearboxes often require baseplates and couplings to connect the motor to the gearbox and the gearbox to the load. These components can take up valuable installation space and add to the system's overall complexity. In contrast, shaft-mounted helical gear motors eliminate these components by mounting directly onto the driven shaft, simplifying the setup and reducing space requirements.
This direct mounting feature is particularly advantageous in environments where space is limited and efficiency is key. By eliminating the need for additional parts, shaft-mounted gear units also reduce the chances of mechanical failure and maintenance costs, making them a more reliable and cost-effective choice.
At the heart of a shaft-mounted helical gear motor is the helical gear arrangement. Unlike traditional spur gears, which have teeth that engage directly with one another, helical gears have angled teeth that mesh more smoothly. This design not only allows for higher torque transmission but also reduces noise and vibration, making them ideal for heavy-duty applications. The helical gear design enables efficient power transfer while maintaining smooth, consistent operation.
In a shaft-mounted unit, the gear arrangement is optimized for performance, allowing the system to handle substantial loads with minimal wear and tear. This makes shaft-mounted helical gear motors particularly well-suited for material handling systems, mining operations, and other industries that require high torque and long operational lifetimes.

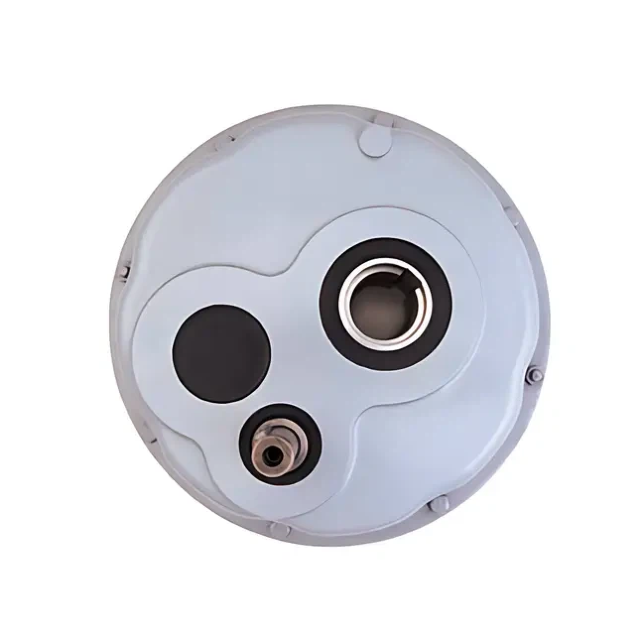

One of the most important features of a shaft-mounted helical gear motor is its mounting system. Instead of relying on baseplates and couplings, these gear units are mounted directly onto the driven shaft. The shaft is inserted into a hollow output shaft of the gear unit, where it is secured using a torque arm that prevents rotation. This direct connection between the motor and the shaft ensures efficient power transmission with minimal energy loss.
This direct mounting approach offers several benefits. It eliminates the need for additional components, reduces installation time, and allows for a more compact system that fits into tight spaces. Furthermore, the shaft-mounted helical gear motor minimizes the risk of misalignment, which can lead to inefficient operation and increased wear.
Shaft-mounted gear units excel at power transmission because of their ability to efficiently transfer high levels of torque. The helical gear arrangement ensures that torque is transmitted smoothly, even in heavy-duty applications. Additionally, these gear units are designed to handle both radial and axial loads, providing excellent support for systems that require high torque and reliability.
In material handling and conveyor systems, for example, shaft-mounted helical gear motors play a crucial role in moving heavy loads. Their efficient torque handling capabilities ensure that the system operates smoothly without unnecessary energy loss or heat buildup. This makes them ideal for applications that demand high reliability and long-term performance.
To better understand the advantages of shaft-mounted helical gear motors, let’s compare them to traditional baseplate and coupling systems. The table below highlights the key benefits of using shaft-mounted gear units:
Feature | Shaft-Mounted Gear Unit | Baseplate + Coupling System |
Installation Space | Minimal | Larger footprint |
Power Transmission | Direct & efficient | Slight losses due to components |
Maintenance | Easier and faster | More parts to inspect |
Torque Handling | Excellent | Depends on alignment |
As shown in the table, shaft-mounted helical gear motors offer significant benefits in terms of installation space, efficiency, and ease of maintenance. By eliminating the need for additional parts, these gear units simplify the setup process and provide more reliable torque transmission. This makes them ideal for environments where space is at a premium and uptime is critical.
One of the most common applications of shaft-mounted helical gear motors is in conveyor systems. These systems often operate in confined spaces where installation flexibility and compactness are essential. The ability to mount the gear unit directly onto the shaft eliminates the need for a baseplate, allowing for a more streamlined and efficient setup.
In addition, conveyors typically require a consistent torque output to move materials efficiently. Shaft-mounted gear units excel in this regard by providing high torque handling while reducing maintenance needs. This makes them a preferred choice for industries like logistics, food processing, and manufacturing, where conveyors play a critical role in moving goods.
In industries such as mining, cement, and bulk processing, shaft-mounted helical gear motors are essential for moving large, heavy materials. These systems must be able to handle high loads without failure, which is why high torque and durability are key considerations. The robust design of shaft-mounted gear motors ensures that they can reliably handle these demanding applications.
With the direct mounting system, the gear unit remains securely in place, even under the high stresses of material handling. This eliminates issues like misalignment and ensures the system operates smoothly for longer periods.
In mining and cement industries, where the environment is harsh and the loads are heavy, shaft-mounted gear motors provide the durability and efficiency needed. The compact design and high torque handling capabilities make these gear units ideal for systems that require continuous operation under extreme conditions.
The ruggedness of these gear units allows them to perform reliably in tough environments, such as underground mining or cement production facilities, where equipment failure can lead to costly downtime.
When installing a shaft-mounted helical gear motor, it is crucial to properly set up the torque arm. The torque arm prevents the gear unit from rotating and ensures that it stays securely in place during operation. If the torque arm is not properly aligned, it could result in inefficient power transmission or potential damage to the gear unit.
To avoid these issues, it is essential to follow best practices for torque arm installation. Ensuring that the torque arm is correctly positioned and aligned will maximize the efficiency and longevity of the shaft-mounted helical gear motor.
Alignment is critical when installing a shaft-mounted helical gear motor. Proper alignment ensures that the gears mesh correctly, reducing friction and wear on the components. Misalignment can lead to increased energy loss, higher maintenance costs, and premature failure of the gear unit.
To achieve optimal alignment, ensure that the shaft fits snugly within the gear unit and that there is minimal gap or play between the components. Regular checks and maintenance can also help maintain the alignment, extending the lifespan of the gear unit.
While shaft-mounted helical gear motors offer distinct advantages in terms of installation space, power transmission efficiency, and ease of maintenance, it’s important to know when to choose this solution over other gear types. Shaft-mounted gear units are particularly suited for conveyor-centric designs where space is limited and high torque handling is required.
Compared to inline gearboxes or right-angle gearboxes, shaft-mounted units provide a more streamlined design, making them ideal for applications where space constraints and ease of installation are paramount.
Shaft-mounted helical gear motors are a highly efficient, reliable, and compact solution for a wide range of industrial applications. Their direct mounting design eliminates the need for additional couplings and baseplates, reducing installation complexity and improving overall system efficiency. Whether for conveyors, material handling, or heavy-duty industrial operations, shaft-mounted gear motors provide the durability and torque capacity necessary for reliable performance in demanding environments. For more information on how shaft-mounted helical gear motors can enhance your industrial systems, feel free to contact us today!
Q1: What industries use shaft-mounted gear motors?
A1: Shaft-mounted helical gear motors are commonly used in bulk material handling, mining, cement, and processing plants, particularly for conveyor drives.
Q2: How do I choose the right gearbox size?
A2: Selection depends on torque requirements, shaft diameter, and mounting specifications. Contact our team for assistance in choosing the correct size for your application.
Q3: Can shaft-mounted gear motors handle heavy-duty loads?
A3: Yes, shaft-mounted helical gear motors are designed to handle high torque transmission, making them suitable for demanding applications such as material handling and mining.
Q4: What are the maintenance requirements for shaft-mounted gear motors?
A4: Shaft-mounted gear motors require minimal maintenance. Periodic checks and lubrication are recommended to ensure optimal performance and extend their service life.
