Brand Information
| Brand Name | BAFFERO |
| Experience | 35+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
Gearbox Information

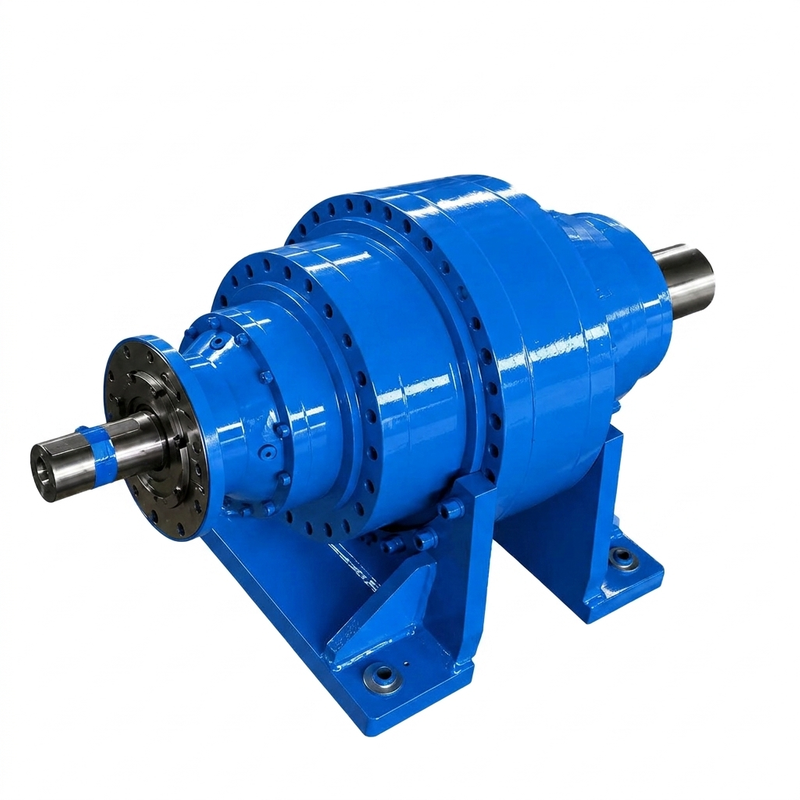

| Product Name | Planetary Gear Speed Reducer |
| Model Number | N200~N885/MN200~MN885 |
| Input Power | 6~200KW |
| Ratio | 3.0~10,000 |
| Output Torque | 1500~420,000 N.m |
| Heat Treatment | Carburizing and quenching |
| Gear Material | 20CrMnTi |
Housing Material | HT200/HT250 high-strength cast iron |
Shaft Material | 40Cr |
Surface Hardness of Gears | HRC58-62 |
Brand of Bearings | HRB heavy-duty bearing, C&U bearing |
Machining Precision of Gears | DIN6 (Ground ) |
Lubricating Oil | Gear oil |
Motor Options
IEC / NEMA standard AC motor
Hydraulic motor
Optioal Output Shaft
Hollow shaft
Solid spline shaft
Hollow shaft +Shrink disc
Hollow spline shaft
Inline Industrial Planetary Gearbox Application
Conveying machinery
Papermaking Machinery
Hoisting Machinery
Chemical industry
Cooling Tower
Sucrose production
Beet sugar production
Ropeway cable car
Cement industry
Dredgers
Metal Working mills
Inline Industrial Planetary Speed Reducer - FAQ
Our N series planetary Rossi Small planetary gearbox & gearmotor is a complete range of modular design gearboxes, and combined high performance with low cost and compact size. The many years of commercial success achieved by BAFFERO planetary gearboxes testify to their excellent quality and reliability, simple installation and limited maintenance.
BAFFERO's N series industrial planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.
1. Can your N series planetary gearbox replace Flender models?
Yes. Our dimensions and performance can be customized to match many international gearbox brands, helping customers reduce procurement costs.
2. Do you support OEM customization?
Yes. We support customized:
Gear ratios
Output shafts
Flanges
Housing structures
Special mounting requirements
3. Which motors can be matched?
Our N series planetary reducers can be matched with:
IEC standard motors
Servo motors
Variable frequency motors
4. What is the advantage of choosing Zhejiang Baffero?
35+ years gearbox manufacturing experience
Strong OEM capability
Stable export quality
Fast delivery support
Professional technical team
Competitive factory pricing
Tell us your requirements and get a fast solution
Power / Torque / Ratio / Application
Contact Zhejiang Baffero for professional gearbox solutions.
About Us
As a member of the China Transmission Association, Zhejiang Baffero Driving Equipment Co., Ltd. a professional gearbox manufacturer with over 30 years of experience in transmission equipment. The company specializes in the design and production of planetary gearboxes, helical gear reducers, and industrial gear units, has been focusing on gearbox innovation and manufacturing for over three decades.
With ISO9001-certified quality management and CE-compliant production, Baffero delivers high-performance transmission solutions for demanding industrial environments worldwide.
