| Quantity: | |
|---|---|
Brand Information
Brand Name | BAFFERO |
| Experience | 34+Years |
MOQ | 1 Set |
Warranty | 12 months |
Delivery Time | 25 Days |
Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | Zhejiang, China (Mainland) |
General Information
Model | B3SH3-B3SH26 |
Input Power | 2.2-5366KW |
| Ratio | 1.25 - 450 |
| Input Speed | Up to 2000r/min |
| Output Speed | 1.7-1200r/min |
| Output Torque | Up to 470000Nm |
Gear Arrangement | Helical Bevel gear |
Gear Precision | DIN6 |
Gear Hardness | HRC58 ~62 |
| Shaft Structure | Right angle shaft, 90 degree shaft |
| Gear Type | Helical Bevel gear |
Gear Heat treatment Processing | Carburizing and Quenching |
Technical Data
| Gear Unit Type | Stages | Ratio | Rated torque(KNm) |
Helical gear unit H | 1,2,3 and 4-stage | 1.25 - 450 | 1 - 900 |
Helical gear unit B | 2,3 and 4-stage | 5 - 400 | 1 - 900 |

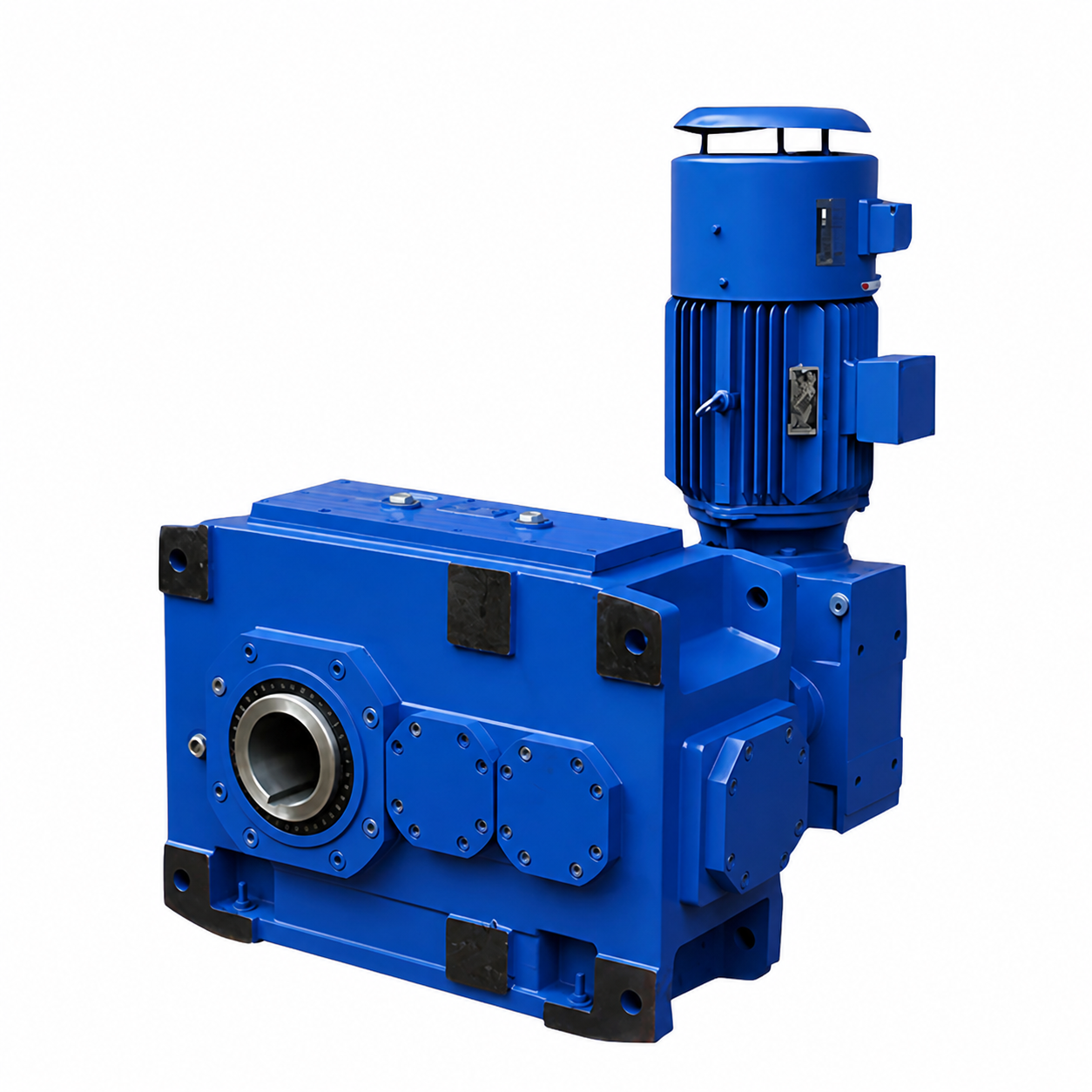

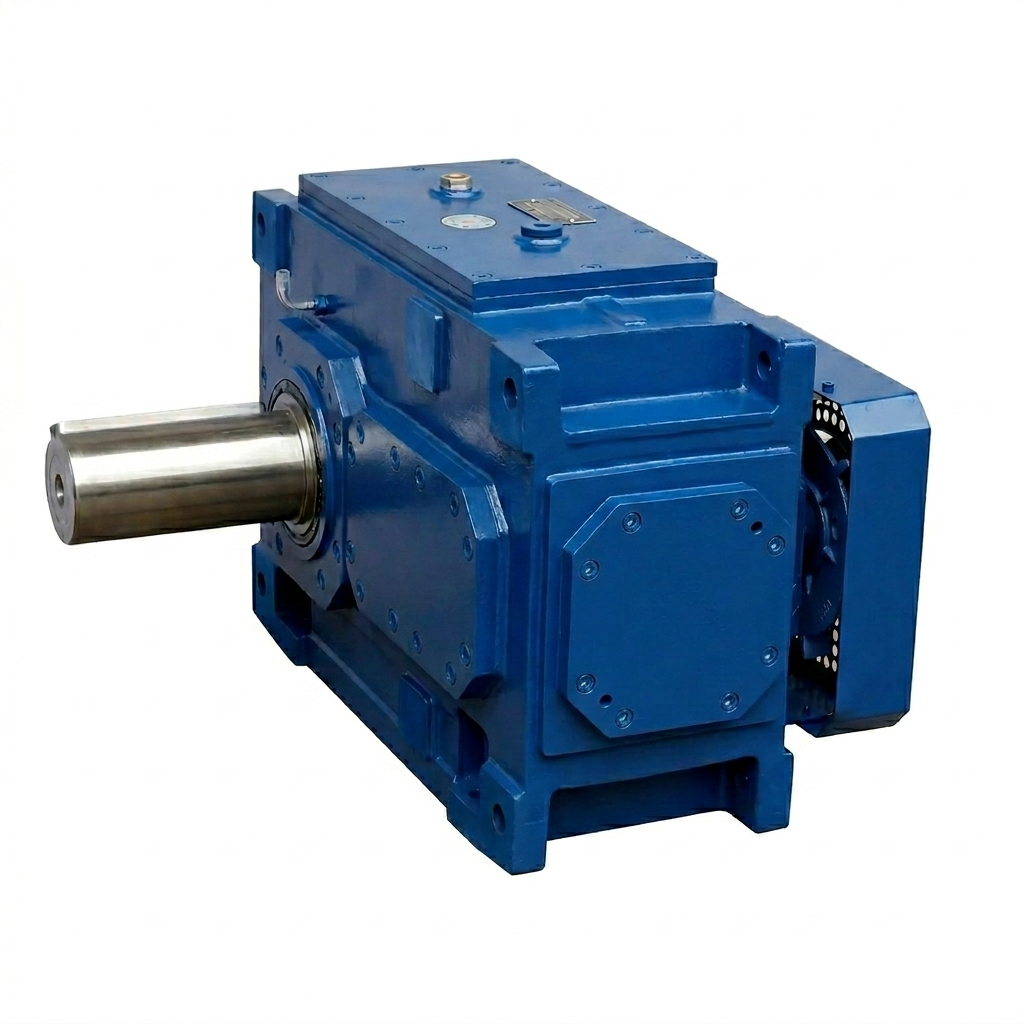

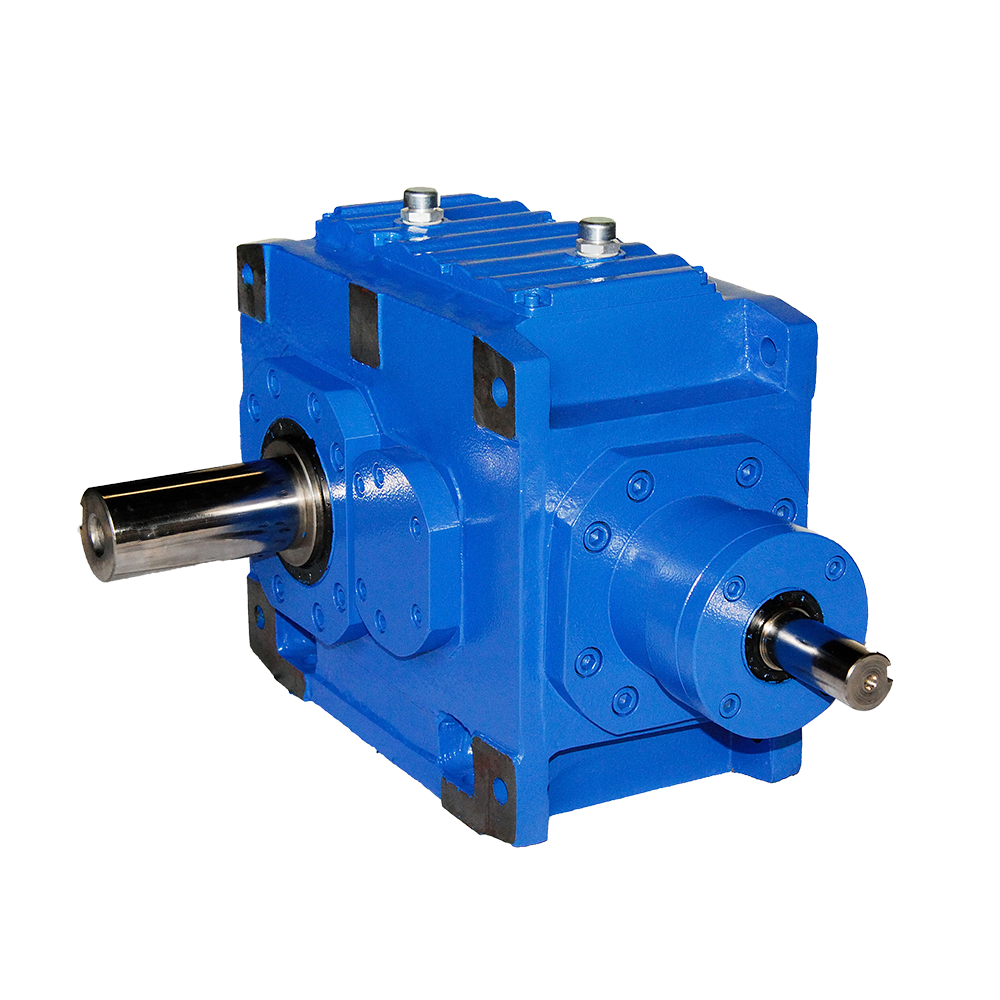

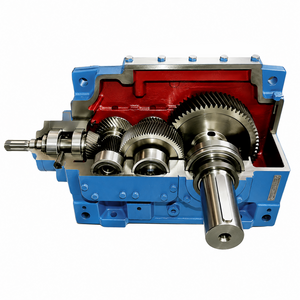

What is B Series Right Angle Helical Gearmotor?
B series is right angle helical gearmotor, which is standardized gear unit solutions for higher power rating ranges condition. It uses the Modular design system and High-stainless cast iron case.
1. Compacted structure and higher strength.
2. Reliable operation, higher transmission efficiency.
3. Providing the output shaft with Flange disc, which can meet mounting requirement of narrow space.
B Series Right Angle Helical Gearmotor - FAQ
HB series gearboxes are heavy-duty industrial gear units designed for high torque and continuous operation in harsh environments
1. What are the key advantages of HB gearboxes?
High torque capacity up to heavy-duty applications
Modular design for flexible configuration
Long service life and high reliability
Suitable for harsh working environments
2. What mounting types are available?
H Series – Horizontal mounting
B Series – Vertical mounting
Supports solid shaft, hollow shaft, and flange mounting options.
3. Can HB gearboxes be customized?
Yes. Zhejiang Baffero provides customization including:
Gear ratio
Shaft size
Cooling system (fan, oil cooler)
Special materials for harsh environments
4. What industries use HB gearboxes?
Widely used in:
Cement industry
Mining & quarry
Metallurgy & steel plants
Power generation
Bulk material handling
Looking for a Reliable Gearbox Supplier?
CE & ISO Certified
Competitive Factory Price
Fast Delivery
Tell us your requirements and get a fast solution:
Power / Torque / Ratio / Application
Contact Zhejiang Baffero today for professional gearbox solutions.
