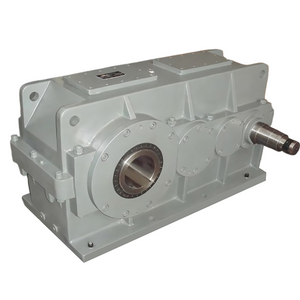

Right Angle Gear Reducer

Horizontal: Bevel helical Right angle gear units gearbox gearmotor reducer B2SH, B2HH, B2DH, B2HM, B2DM, B3SH, B3HH, B3DH, B3HM, B3DM, B4SH, B4HH, B4DH, B4HM, B4DM
Vertical: Bever-helical gear units Right angle gearbox 90 degree shaft mounted reducer B2SV, B2HV, B2DV, B3SV, B3HV, B3DV, B4SV, B4HV, B4DV
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

10


SPECIFICATIONS

Input Power

2.2-5366KW

Ratio

1.25 - 450

Input Speed

Up to 2000r/min

Output Speed

1.7-1200r/min

Output Torque

up to 470000Nm

Shaft Structure

Right angle shaft, 90 degree shaft

Gear Type

Helical Bevel gear


BUSINESS TERMS

Minimum Order Quantity

1pcs

Price

200 ~ 10000 USD

Payment Terms

T/T or other

Supply Ability

10000pcs per month

Delivery Time

20~40 days

Packaging Details

Standard export wooden case


MODELS
Horizontal: Bevel helical Right angle gear units gearbox gearmotor reducer
B2SH, B2HH, B2DH, B2HM, B2DM, B3SH, B3HH, B3DH, B3HM, B3DM, B4SH, B4HH, B4DH, B4HM, B4DM
Vertical: Bever-helical gear units Right angle gearbox 90 degree shaft mounted reducer
B2SV, B2HV, B2DV, B3SV, B3HV, B3DV, B4SV, B4HV, B4DV


APPLICAIATIONS
Belt conveyor
Bucket elevator
Agitator
Hoisting gear
ball mills
Paper machine
Dryer


BASIC DESIGNS

Horizontal Mounting Position
Bevel -Helical Gear unit
Type: B2….B3….B4…
2 - 4 Stage Transmission, IN=1.25-450

B..SH


1

B..HH


2

B..DH


3

B…HM,B…DM


4

Vertical Mounting Position
Bevel-helical Gear Unit
Types B2..V, B3..V, B4..V
2-4 stage Transmission, IN=6.3-450

B..SV

5

B….HV

6
