| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| Experience | 30+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
Gearbox Information

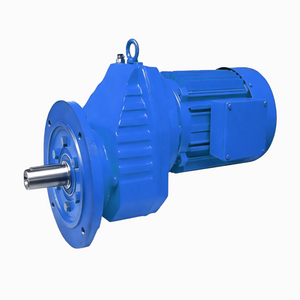

| Product Name | Sew Helical Gear Speed Reducers for Motors |
| Model Number | R17~R167/ RF17-RF167/RS17-RS167 |
| Input Power | 0.18~160KW |
| Ratio | 3.37~164.42 |
| Output Torque | 85~18000 N.m |
| Heat Treatment | Carburizing and quenching |
| Gear Material | 20CrMnTi |
Housing Material | HT200/HT250 high-strength cast iron |
Shaft Material | 40Cr |
Surface Hardness of Gears | HRC58-62 |
Brand of Bearings | HRB heavy-duty bearing, C&U bearing |
Machining Precision of Gears | DIN6 (Ground ) |
Lubricating Oil | Gear oil |
Input Power Rating And Max Torque
| Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure | R/RF/RS | ||||||||||||
Input power rating (kw) | 0.18-0.75 | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.18-7.5 | 0.18-11 | 0.55-22 | 0.55-22 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
Ratio | 3- 75 | 3-135 | 3-135 | 3-167 | 4-186 | 4-165 | 5-195 | 5-246 | 4-264 | 5-245 | 5-223 | 5 -163 | 8-196 |
Max torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
Gear Unit Weight
| Size | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
Weight(kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 400 | 700 |
Reduecer Features:
Highly Standard Modular Designed
Quality material ensures the product reliability
High Strength, Compact Dimension
Long Service Life
Low Noise
High Efficiency
Large radial loading ability
Axial load ability of up to 5% of radial load
Transmission Efficiency: 2 stage (ratio: 5-24.8) = 96%
3 stage (Ratio: 27.2-264) = 94%
Application Examples:
1. Belt conveyor drives
2. Bucket elevator drives
3. Agitator drives
4. Hoisting gear drives
5. Travelling gear drives
6. Paper machine drives
7. Dryer drives
8. Water screw drives
About Us
Zhejiang Baffero Driving Equipment Co., Ltd. is a leading gear reducer manufacturer with over 26 years of experience, specializing in precision helical gear speed reducers. The company operates with 300 workers, 5% dedicated to R&D, and employs advanced automation to ensure quality and cost efficiency. Certified with ISO9001 and CE, it serves diverse industries including textiles and food processing.
Over more than 34 years, by holding the concept of human oriented and scientific innovation, we have always been devoted to talent storing and research and development of new products, continuously invested in research and development, striving to provide first-class transmission equipment for customers. With outstanding quality, all products bearing the mark of BAFFERO have become the first choice of customers and have been sold far to Europe, America, Southeast Asia, etc.
FAQ
1. How to choose a speed reducer which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter, etc.
2. What information shall we give before placing a purchase order?
a. Type of the gearbox, ratio, input and output type, input flange, mounting position and motor information.
b. Housing color
c. Purchase quantity
d. Other special requirements.
3. What industries are your gearboxes being used?
Our transmission gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalater, automatic storage equipment, metallurgy, tobacco, environment protection, logistics and etc.
4. Do you sell motor together?
Yes, but we don’t manufacture motor, we have several stable motor suppliers who have been cooperating with us for long time, they provide us high quality motors.
