Product Description :
BAFFERO Cycloidal gear reducer, speed reducers and gearmotors are the premier in-line drives. The X series and our related products that utilize cycloidal gearing technology deliver the most robust solution in the most compact footprint. The main power train is comprised of an eccentric roller bearing that drives a wheel around a set of internal pins, keeping the reduction high and the rotational inertia low. The wheel incorporates a curved tooth profile instead of the more traditional involute tooth profile, which removes shear forces at any point of contact. This design introduces compression forces, instead of those shear forces that would exist with an involute gear mesh. That provides a number of performance benefits such as high shock load capacity (>500% of rating), minimal friction and wear, lower mechanical service factors, among many others. The cycloidal design also has a large output shaft bearing span, which provides exceptional overhung load capabilities without requiring any additional expensive components.
Technical information :
Cycloidal Reducer
Power range:0.12—90KW
Transmission ration range:7—650000
Output torque(Kn.m):top to 30
Features & Benefits
Quiet, efficient and reliable operation with high torque density and compact sizes
Interchangeable cast iron housings in foot, flanged or face mount configurations
Available free-shaft, quill hollow shaft, C-face adaptors, shovel base, and top-mount inputs
Mininimal vibration, low noise, low backlash and extended operational life
The best product warranty with 12 months backs up the superb Cyclo product reputation
Advantage :
1: Wide variety of inputs available , Including C-Face, Free shaft , Gearmotors and Brake motor
2:Superior seal design using wear sleeves and pressure-rated seals
3: All Rotation components are fully hardened ,vacuum degassed bearing grade steel, for consistent ,reliable performance
4:High power destiny . All reduction contained in compacting ring gear housing
5:Rugged ,shock-resistant cast iron housing .Optional dectile iron also available
6:unique oil sight gauge for simple, visible lubrication indication
7:Unmatched reliability ,Exceptional performance
Brand Name | BAFFERO |
Model Number | X1~X11 |
Certification | BV/ISO/SGS/CE |
Place of origin | China |
Character：
Gear Precision grade | 6(ISO 1328) |
Gear surface hardness | HRC58-62 |
Gear material | 20CrMnTi |
Shaft material | 40Cr |
Housing material | Main aluminium alloy ;Cast iron |
Bearing brand and lifetime | HRB ;NSK;SKF |
Color | Blue; Gray |
Business terms：
Minimum order quantity | 1 Pcs |
Price | Negotiation |
Payment terms | T/T;L/C /Western Union |
Supply ability | 15,000pcs per month |
Delivery Time | 10 to 15days |
Packaging details | Wooden cases |
Application :
Conveyors
Foot machinery
Mixer
Automotive plants
Recycling machines
Poultry plants
Sawmills and wood mills
Waste waster treatment
Steel Mills
Construction Equipment
Paper mills
Processing plants

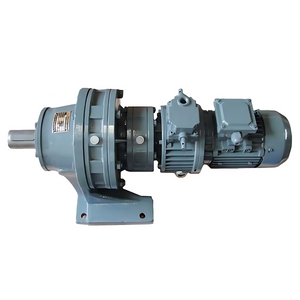

High Torque Low Noise Cast Iron Cycloidal Gear Motor for Conveyor/Mixer/Construction Equipment
