CHARACTERISTICS

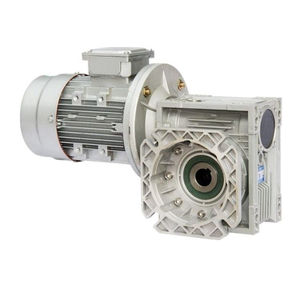

NMRV / NRV Sizes: 025-030-040-050-063-075-090-110-130-150
Available versions: fitted for motor coupling, with input shaft, with torque limiter
Rated Power: up to 18,5 kW
Cases material: NMRV025-090 are aluminium alloy, NMRV110-150 are cast iron
Ratios: 5 and 100
Max torque: 1.550 Nm and admissible radial loads max 18.000 N
Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, NRV+NMRV, NRVpower+NMRV
OVERVIEW
| Gearing Arrangement | Worm |
Brand Name | BAFFERO |
Certification | BV/ISO9001/SGS/CE |
Place of Origin | China |
Ratio | 5~100 |
Housing Material | Aluminium alloy, Cast iron |
Bearing Brand | C&U,NSK, SKF |
Oil Seal Brand | NAK, SKF |
Color | Blue, Silver, or other |
Warranty | 12 months |
PACKAGING & DELIVERY
Package Type: Inner pack use plastic bag and carton;
Outer Pack use Standard wooden case or based on customer's request.
Delivery time: 1~100pcs within 10days, >100pcs to be negotiated.
Port: Ningbo, Shanghai, or other.
APPLICATIONS
Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass.
