| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | China |
Gearbox Information

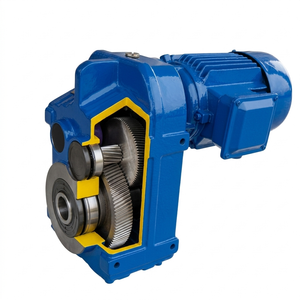

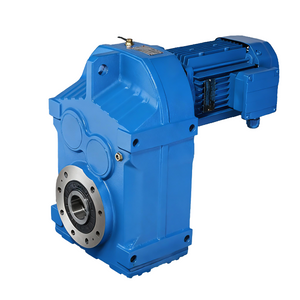

| Product Name | Parallel Shaft Speed Reducer |
| Model Number | F37- F157/FF37-FF157/FA37-FA157 |
Output Speed | 0.16-1028 r/min |
Rated Power | 0.18-200KW |
Output Torque | 200~18000N.m |
Gear Type | Helical |
Ratio | 3.81 - 198.14 |
Gear Precision Level | DIN6 |
Housing Material | HT200/ HT250 high-strength cast iron |
Gear Material | 20CrMnTi |
Input / Output Shaft Material | 40Cr |
Input Power and Torque (MAX)
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating (kw) | 0.183 | 0.18-3 | 0.18-5.5 | 0.37-5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
(Ratio) | 3.81-128.51 | 5.06-170.27 | 5.18-199.70 | 4.21-196.46 | 4.20-243.46 | 4.12-270.68 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-198.14 |
Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear Unit Weight
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Weight (KG) | 12 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
Main Application Areas
Material handling applications
Chain conveyors
Engineeringapplications
Stamping presses
Extruders
Screw conveyors
Gantry cranes.
Available Variants
Simple design, suitable for applications with limited installation space, also available as a low-backlash gearbox
1) Mounting
Foot mounting

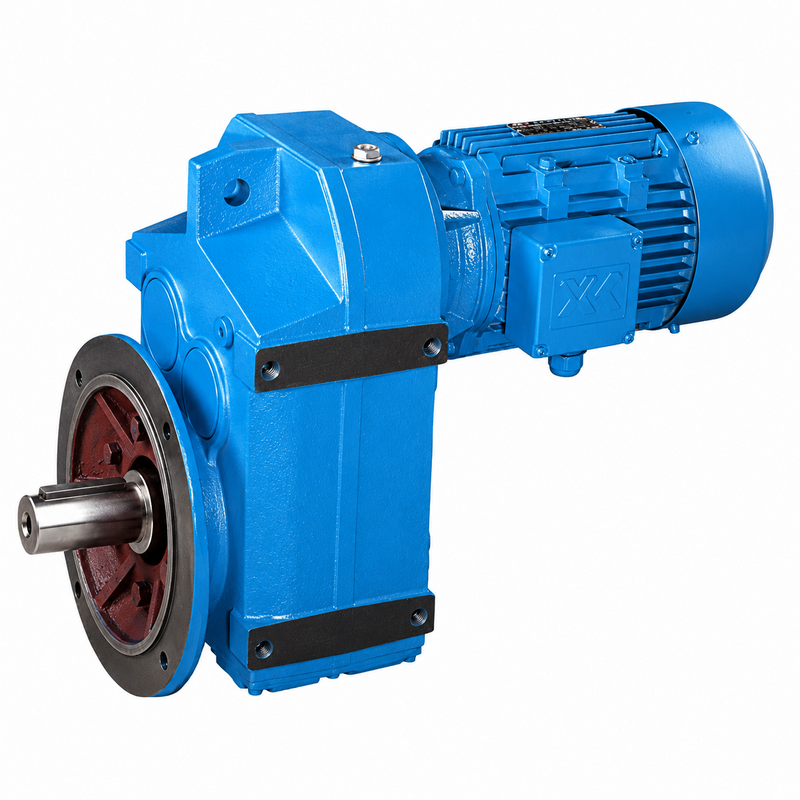

Flange mounting (F)
Torque arm (hollow shaft) mounting (T)
2) Input design
B5 or B14 flange
shaft input
3) Output shaft types
Solid shaft
Hollow shaft with key connection (A)
Shrink disc (H), Splined hollow shaft (V)
TorqLOC
F Series Parallel Shaft Helical Gear Reducer – FAQ
The F Series Parallel Shaft Helical Gear Reducer is a compact, high-performance transmission solution designed for demanding industrial applications. With its parallel shaft structure, it provides high torque output, space-saving installation, and stable operation, making it ideal for modern automation systems.
1. How do I choose the right F series gear reducer quickly?
Provide the following:
Motor power (kW)
Input speed (rpm)
Output speed or ratio
Mounting type
2.What is the machining accuracy of your gearbox?
Gear accuracy: GB/T10095 Grade 6
This ensures:
Smooth transmission
Low vibration
Low noise
3. Can your F series gearbox replace SEW or Bonfiglioli?
Yes, our gear reducers are:
Dimension-compatible
Performance-equivalent
Send us your old model or nameplate for 1:1 replacement
4. Need technical confirmation or drawing support?
Send us:
Power / Speed / Torque
Drawing or application
We will provide solution + quotation within 12–24 hours
5. What bearings and oil seals do you use?
1)Bearings:
C&U
HRB (Harbin)
ZWZ
LYC
2) Oil seals:
NSK (Taiwan)
Reliable components ensure stable performance
Still not sure which model fits your application?
Send us your requirements now — we will recommend the best solution with price within 2 hours.
