Technical Data :
Size : N..200 ~885 (22 SIZES)
Gear ratio range : i = 1: 3.0~10,000
Nominal torque range : T2 = 1500~420,000N.m
Structure : Inline /Right angle
Mounting Types : Foot mounted / Flange mounted
Output shaft options : Solid / Hollow with shrink disc / Spline solid or Hollow shaft
Accessory : Torque arm , IEC Flange
Advantage of N Series Planetary Gearmotor & Unit :
High torque density
Extreme speed reduction and high output torque
Low maintenance cost
Extremely customizable
High customization level
Flexibility
ATEX per explosive atmosphere 2G/2D
Main Options

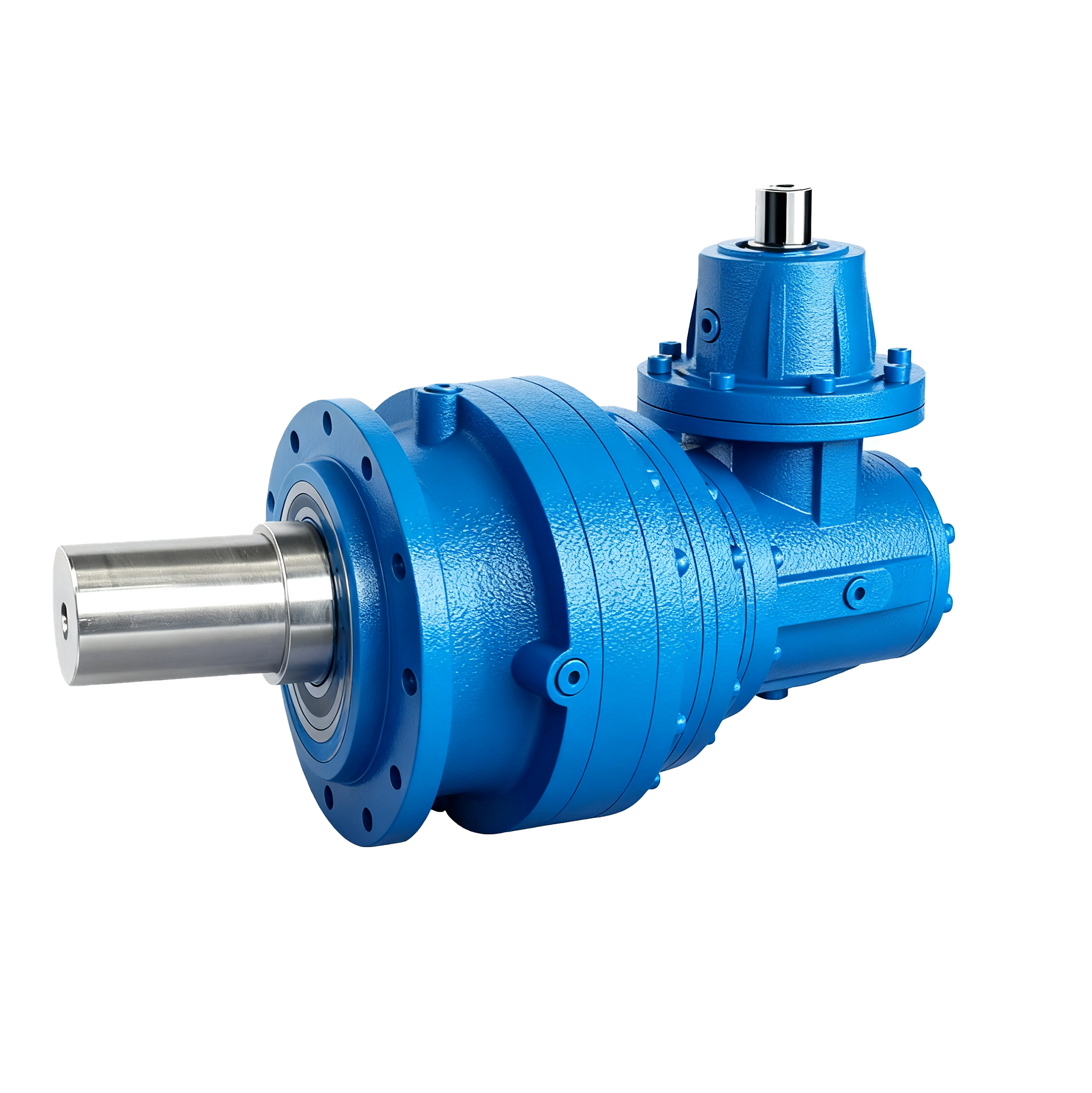

In line/right angle version
Independent cooling unit
Patented integrated cooling solution
Taconite seals
ATEX certification for explosive environments
Input
Input with solid shaft

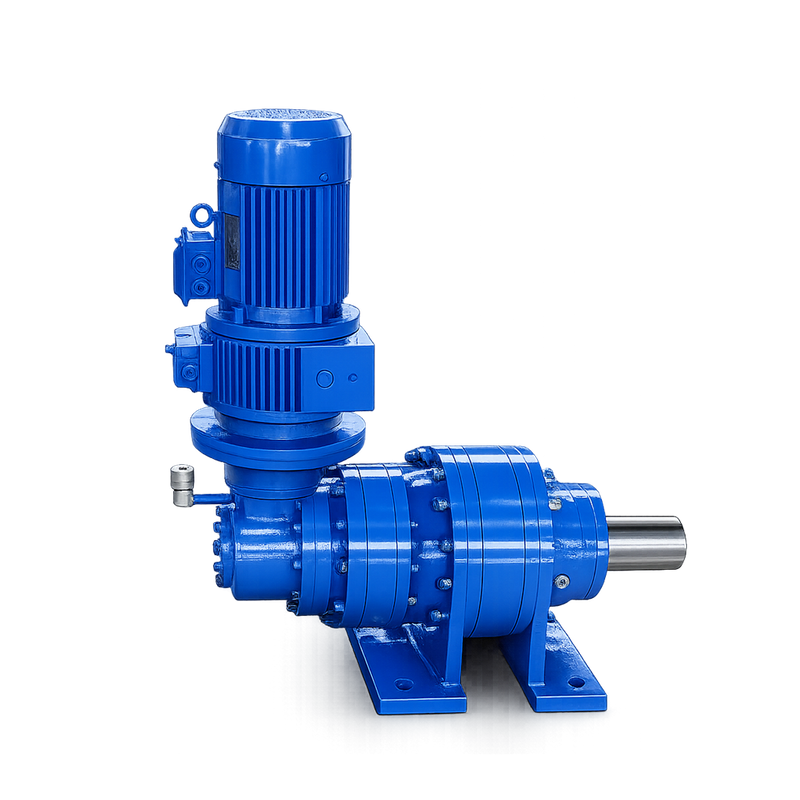

Input with e-motor coupling:
- M, ME, MX [compact asynchronous]
- BN, BE, BX [IEC asynchronous]
- BSR [IEC reluctance]
- BS [IEC single phase]
N Series Planetary Gearbox - FAQ
BAFFERO N series planetary gearmotor & gear unit is an outstanding solution for all heavy-duty applications where compactness is not an option. Thanks to its modular design, the N Series can be customized to match an extremely wide range of applications. BAFFERO’S expertise in planetary technology ensures high-quality product design and manufacturing procedures.
1. Can you supply motor + gearbox (gearmotor)?
Yes, we provide complete solutions:
IEC standard motors
Variable frequency motors
Explosion-proof motors
Brake motors
2. Do you support OEM or customization?
Yes, we support:
Logo & brand customization
Special flange & shaft dimensions
Non-standard voltage & frequency
Anti-corrosion / heavy-duty design
3. What heat treatment and hardness do your gears have?
Gear surface hardness: HRC58–62
Core hardness: HRC33–40
4. What material is the gearbox housing made of?
Standard models: HT200 / HT250 cast iron
Planetary series: QT450 ductile iron
Need Technical Confirmation or Drawing Support?
Send us:
Power / Speed / Torque
Drawing or application
We will provide solution + quotation within 2 hours
About Us
Zhejiang Baffero Driving Equipment Co., Ltd. is a professional gearbox manufacturer with over 30 years of experience in transmission equipment. The company specializes in the design and production of planetary gearboxes, helical gear reducers, and industrial gear units.
Certified with ISO9001 and CE standards, Baffero ensures strict quality control and reliable performance. Its products are widely used in metallurgy, mining, cement, and material handling industries, and exported to Europe, Southeast Asia, and global markets.
