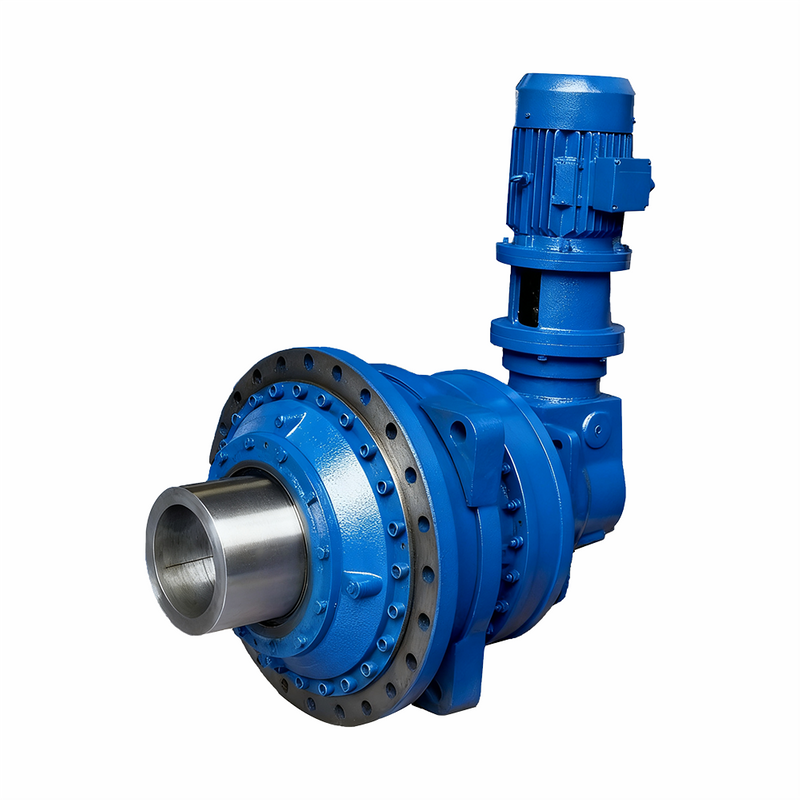

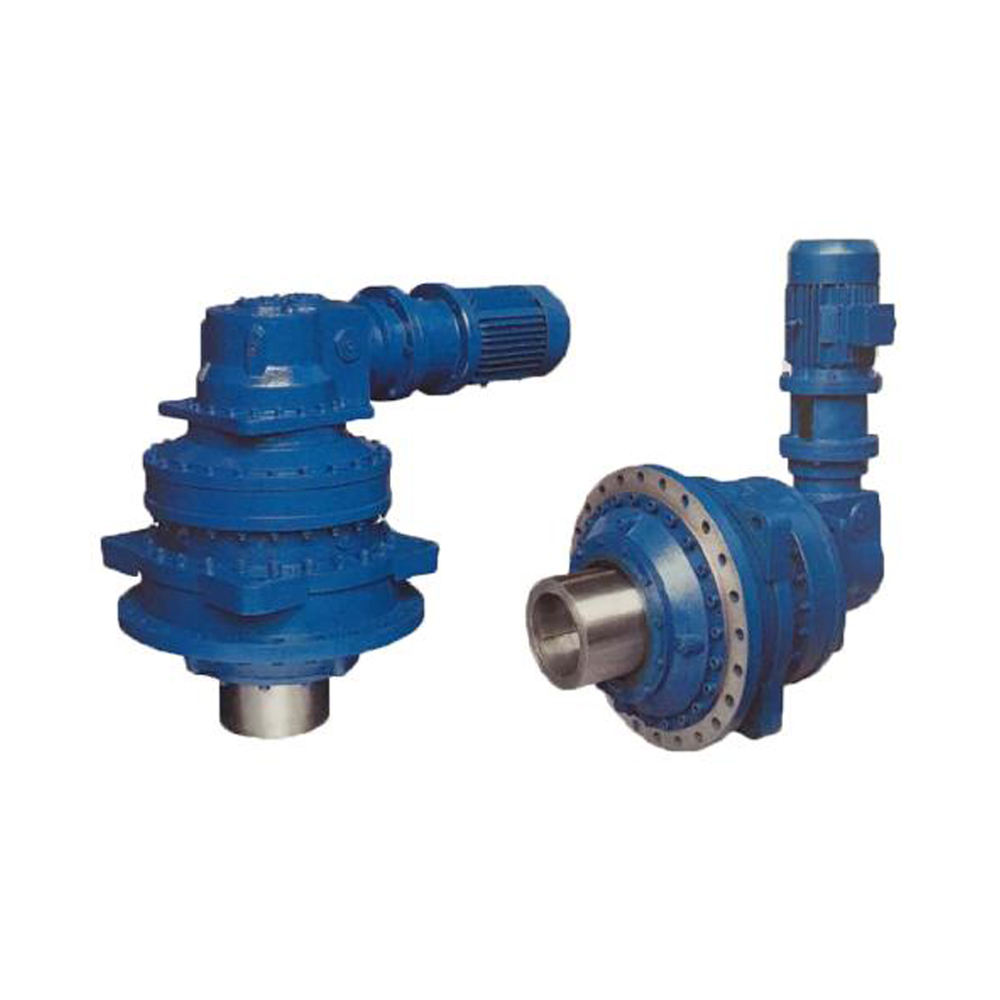

DP series Planetary gearbox :
DP Planetary gearbox is standardized gear unit solutions for higher power rating ranges in the proven FLENDER quality. With 27 sizes and seven basic types the DP series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1. .And it widely used for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc .
Common Information :
| BRAND NAME | BAFFERO |
MODEL | DP 9...26 |
CERTIFICATION | CE / SGS / BV |
PLACE OF ORIGINAL | CHINA |
Characters：
| Gear Precision | DIN6 (ISO1328) |
Gear Arrangement | Planetary gear |
Gearbox Casing Material | Cast Iron |
Gear Material | 20CrMnTi |
Gear Hardness | HRC58 ~62 |
Shaft | 40Cr and 20CrMnTi |
Color | As requirement |
Gear Heat treatment Processing | Carburizing and Quenching |
Business terms：
| M O Q | 1PCS |
Price | Negotiation |
Payment terms | T/T, L/C,DP or Western union |
Supply ability | 10000 Pcs per a month |
Delivery time | 10days |
Package detail | Plywood case |
Technical data :
Power range:0.37—12000KW
Transmission ration range:25—4000
Output torque(Kn.m):top to 2600
Features
◆ High modular design.
◆ Compact design and dimension, light weight.
◆ Wide range of ratio, high efficiency, stable running and low noise level.
◆ Several planet wheels run with load at the same time and distribute the power to realize the combination and separation of moving.
◆ Realize the coaxial transmission easily.
◆ Rich optional accessories.
Product design
◆ Planetary stage: 2 stage or 3 stage.
◆ Input mode: N standard (coaxial mode), S 1st stage helical gear shaft, L 1st bevel gear shaft, K 1st bevel-helical gear shaft.
◆ Output mode: solid shaft (with key, with involute splines), hollow shaft (with shrink disc, with involute splines).
Application examples
Belt conveyor drives
Bucket elevator drives
Agitator drives
Hoisting gear drives
Travelling gear drives
Paper machine drives
Dryer drives
Water screw drives
BAFFERO Transmission will help you
● Providing correct gearbox and combined gearbox to meet your application needs.
● Lowering maintenance cost and lifting operation efficiency.
● Improving production capacity and boosting economic profitability.
