Brand Information
Gearbox Information
Features & Benefits
Modular design
Interchangeable cast iron housings in foot, flanged or face mount configurations
Universal mounting arrangements
Available free-shaft, quill hollow shaft, C-face, shovel base, and top-mount inputs
Internal components manufactured from hardened, vacuum-degassed, bearing grade steel
Minimal vibration, low noise, low backlash and extended operational life
The product warranty
The 12 month warranty backs up the superb BAFFERO product reputation
Specifications
Sizes: 22 sizes (N200~885)
Torque Rating: 1,500N.m~420,000N.m
HP Rating: 1 to 235 HP
Ratio Range: 3:1 to 7569:1
Mounting: Foot, Flange, Face Mount
Motor Standards: NEMA, IEC, JIS, UL, CSA, CE
Key benefits
High torque density
Extreme speed reduction and high output torque
Low maintenance cost
Extremely customizable
High customization level
Flexibility
ATEX per explosive atmosphere 2G/2D
Main options
In line/right angle version
Independent cooling unit
Patented integrated cooling solution
Taconite seals
ATEX certification for explosive environments
Standard Specifications:
Reducer | Reduction: Lubrication: | Internal planetary gear mechanism with trochoidal curved tooth profile. Grease or oil lubricated models available. |
Seals: | Nitrile material, dual lipped, double output seals available. | |
Material: | Rugged cast iron or ductile housings. | |
Paint Color: | Blue, Munsell color number 6.5PB 3.6/8.2 | |
Ambient Conditions | Installation Location: Ambient Temperature: | Indoors (Minimal dust and humidity) 14°~104° F (-10º ~ 40º C) |
Ambient Humidity: | Under 85% | |
Elevation: | Under 3,281 ft. (1000 meters) | |
Atmosphere: | Well ventilated location, free of corrosive gases, explosive gases, vapors and dust. |
Your benefits (advantages of our planetary gearbox) :
Housing
Heavily loaded housing parts are made out of spheroidal graphite cast iron, all other parts are out of grey cast iron. Other materials on request
Gear teeth
Sun and planet gears have spur gear teeth and are case-hardened and ground. Annulus gears are mostly quenched and tempered and shaped or ground, depending on size. Bevel gears are case-hardened and, depend- ing on size, lapped, HPG-cut or ground. The gears and gear shafts of the primary gear stages have helical teeth and are case- hardened and ground.
A gear unit design which is finite-life fatigue-resistant can be sufficient for certain applications, for example, sporadic operation (lock-gate drives) or low output speeds (n2< 4 min-1).
Bearing arrangements
Gears and shafts are exclusively supported by amply dimensioned rolling bearings.
Input side
The shafts are designed for taking up, for example, couplings or pulleys.
Output side
In addition to standard designs it is possible to design hollow and solid shafts also with involute splines,
Application :
1:Cement and Mining
2:Cranes
3:Marine and Shipbuilding
4:Oil and Gas
5:Power Generation
6:Chemicals and pharmaceuticals
7:Rubber and Plastic
8:Pulp and paper
9:Water and Wastewater
10:Sugar
11:Food and Beverage
12:Railway Vehicles
13:Passenger Transport
14:Wind Power
15:Turbo
Product Description

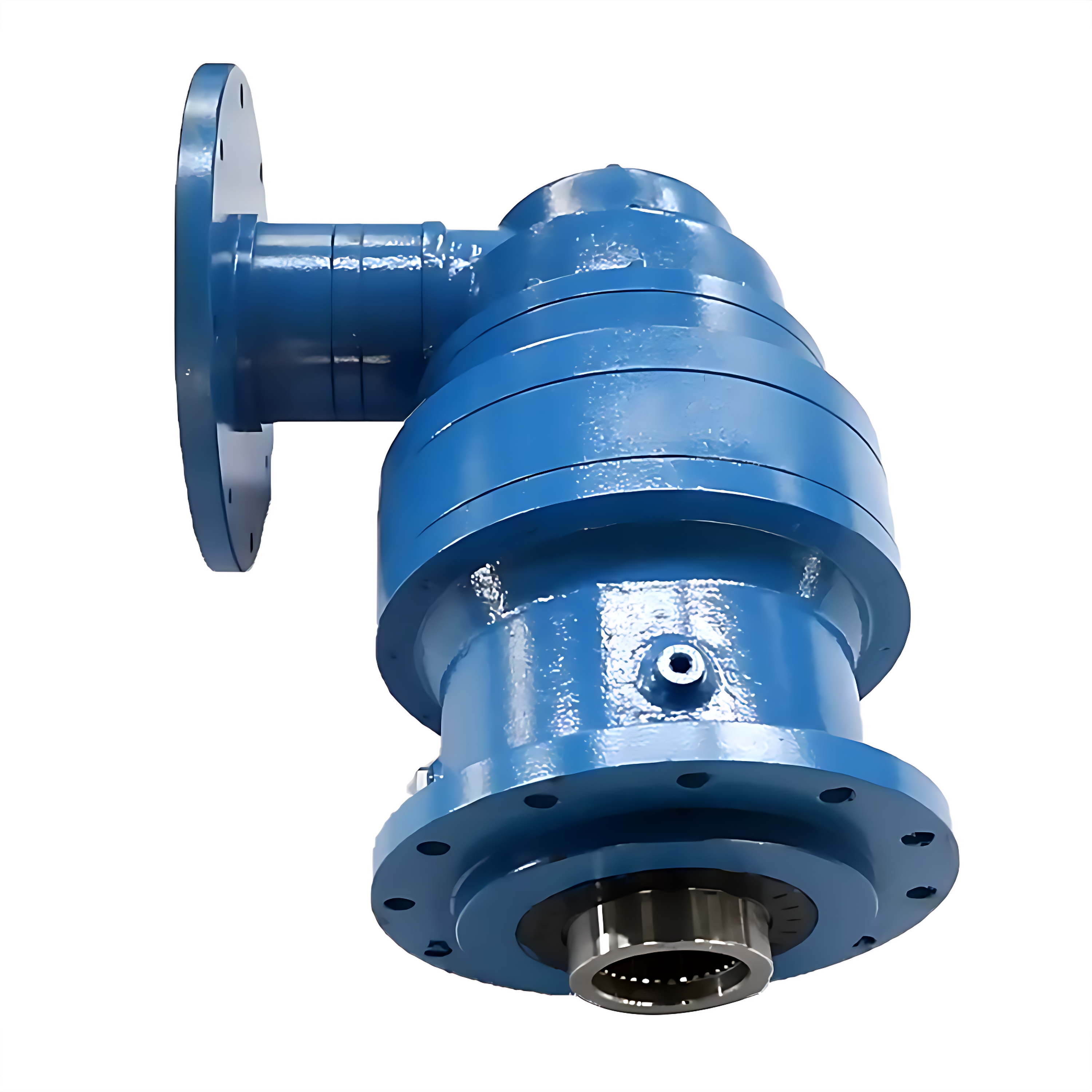

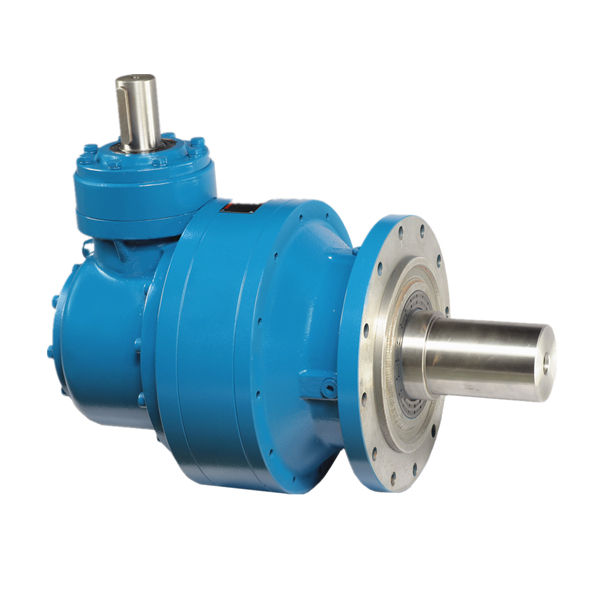

Baffero N series right angle planetary gearmotor & gearbox complete range of modular design planetary gearboxes for industrial applications. It combines high performance with low cost and compact size, excellent reliability, simple installation and reduced maintenance. BAFFERO’s industrial planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications. These in-line or right-angle planetary gearboxes are available in male and female shaft configurations. The male shaft solution (splined or cylindrical) is able to withstand strong radial or axial loads on the output shaft.
