| Quantity: | |
|---|---|
Brand Information
Brand | Baffero |
Experience | 35+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
Certification | CE/ ISO9001/ BV/ SGS |
Shipping Port | 10000 Pcs per a month |
Delivery time | Shanghai or Ningbo |
Place of Origin | China |
Gearbox Information

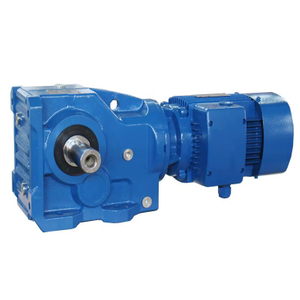

| Product Name | Helical Worm Gear Reduction |
| Model Number | S37-S97 |
| Input Power | 0.18~22KW |
| Ratio | 10.27~244.74 |
| Output Torque | 90-4000N.m |
| Gear Precision | 5-6 (ISO1328) |
Gear Arrangement | Helical-worm |

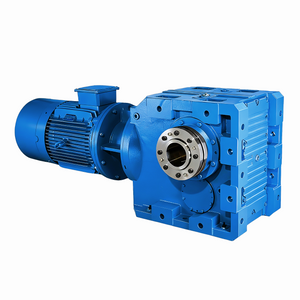

Gearbox Casing Material | Cast Iron |
Gear Material | 20CrMnTi |
Gear Hardness | HRC58 ~62 |
Shaft | 40Cr and 20CrMnTi |
Color | Blue, grey or other. |
Gear Heat treatment Processing | Carburizing and Quenching |
Mounting type | Foot, flange, torque arm, hollow /solid shaft |
Input Power Rating and Max Torque
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
Structure | S SA SF SAF SAT SAZ | ||||||
Input power rating (kw) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
(Ratio) | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.5-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
Max torque (N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
S Series Helical-Worm Gear Units (Two-stage) than R Series Helical Reducers
Efficiency: Significantly higher than single-stage helical reducers or worm reducers.
Noise: Extremely low operating noise.
Mounting: More flexible mounting options（torque arm）
Available Variants of Helical-Worm Speed Reducer
Mounting: Foot, flange, or torque arm.
Input: B5/B14 flange or solid shaft.
Output: Solid or hollow shaft.
Hollow Shaft Types: Keyed, shrink disk, splined, or TorqLOC®.
S Series Helical Worm Gear Reduction - FAQ
The S series gear reducer from Zhejiang Baffero (Zhejiang Baffero Driving Equipment Co., Ltd.) combines helical and worm gear design, offering compact structure and high efficiency. It is widely used in conveyors, mixers, and industrial automation systems, providing reliable power transmission solutions.
1. What is an S Series Helical Worm Gear Reducer?
The S series helical-worm gear reducer is a right-angle output transmission device that adopts a two-stage composite drive consisting of helical gears and worm gears. Its core characteristics are: low rotational speed, low torque, and suitability for low-power motors.
2. What applications are S Series gearboxes suitable for?
S Series gearboxes are widely used in:
Conveyor & Material handling
Mining & Quarry
Crusher & Cement
Automatic production line
Transport & Packaging
Food processing & Beverage
Construction & Metal processing
Plastic & Chemical industry
3. How to choose the right S Series gear reducer?
To select the correct model, please provide:
Motor power (kW)
Required output speed (RPM)
Output torque (Nm)
Application details
Our engineering team can recommend the most suitable solution.
4. Why Choose Our S Series Gear Reducers?
35+ Years Manufacturing Experience
CE & ISO 9001 Certified
Stable Quality for Global Markets
Custom Solutions Available
Fast Delivery & Technical Support
Looking for the right S Series Gear Reducer?
Contact us now for fast selection, competitive pricing, and technical support.
