Tracked construction machinery operates in some of the most demanding environments in the industrial world. Excavators climb unstable ground, compact track loaders push heavy materials across uneven terrain, and crawler carriers travel through mud, rocks, and construction debris. These machines must generate massive traction force at low speed while maintaining reliability in harsh working conditions. A Hydraulic Planetary Gearbox plays a central role in making this possible. By converting hydraulic motor speed into high torque output and distributing load across multiple gears, planetary drives provide the strength, durability, and compact structure required by modern tracked vehicles. Understanding why this drivetrain configuration has become the standard helps equipment manufacturers and operators better appreciate how reliable travel drive systems are designed.
The drivetrain requirements of tracked construction equipment differ significantly from those of wheeled vehicles or stationary industrial machines. Track drives must generate large tractive forces while withstanding difficult operating conditions.
Tracked vehicles rarely move quickly. Instead, they operate at relatively slow speeds while pushing or carrying extremely heavy loads. Excavators, for example, must slowly reposition themselves while supporting the weight of the boom, bucket, and working materials.
This means the drive system must produce very high torque while maintaining stable control at low rotational speeds. Hydraulic motors alone cannot provide this torque efficiently, which is why a reduction gearbox is required to multiply torque before it reaches the drive sprocket.
Construction environments frequently introduce sudden load changes. Machines encounter rocks, uneven soil, steep slopes, and abrupt stops when operators reposition equipment. These shock loads can create torque spikes in the drivetrain.
Gear systems used in these machines must distribute mechanical stress evenly to avoid premature failure.
Tracked vehicles have very compact undercarriage designs. The travel drive system must fit within tight spaces near the track frame without interfering with suspension components or track rollers.
Planetary gearbox configurations are particularly well suited for this type of compact installation.
Planetary drive systems provide structural advantages that align closely with the needs of tracked construction vehicles.
A planetary gearbox places multiple gears around a central axis, allowing high reduction ratios within a small physical footprint. This design provides significant torque multiplication without requiring a long gearbox housing.
For construction equipment manufacturers, this compact structure simplifies undercarriage design and allows travel drives to fit within limited installation spaces.
Unlike traditional gearboxes that rely on a single gear pair, planetary gear systems distribute load across several planet gears simultaneously. This load sharing spreads the mechanical stress across multiple contact points.
As a result, the gearbox can handle higher torque levels while reducing wear on individual gear teeth.
Planetary gearboxes integrate well with hydraulic motors to form complete travel drive assemblies. These integrated units combine motor, gearbox, and brake systems into a compact package that simplifies installation on construction machinery.
This modular approach improves drivetrain efficiency and simplifies equipment design.
Hydraulic drive systems are widely used in mobile construction equipment because they provide smooth control, variable speed, and strong power output.
Hydraulic motors typically operate at higher speeds than what is needed at the track sprocket. A reduction gearbox converts this speed into the torque required to move the vehicle.
Planetary gear stages multiply torque while maintaining compact dimensions, making them ideal for hydraulic drive applications.
Modern tracked machines often use integrated travel drive assemblies that combine hydraulic motors with planetary gear reducers. This integration reduces the number of mechanical components and simplifies system alignment.
Fewer separate components also improve reliability and reduce installation complexity.
Many travel drive systems incorporate braking mechanisms directly within the planetary drive assembly. These braking systems help maintain control when machines operate on slopes or when sudden stops are required.
Integrating braking and gearbox functions improves safety and system efficiency.
Construction machinery must operate continuously in harsh environments where dust, water, and vibration are common.
Planetary gearboxes used in mobile equipment are designed with strong housings that protect internal components from external forces. High-strength materials help maintain gear alignment even under heavy loads.
Robust bearing systems also support radial and axial loads generated during machine operation.
Construction sites expose machinery to mud, dust, sand, and water. Effective sealing systems prevent contaminants from entering the gearbox and damaging gears or bearings.
Advanced seal designs help maintain lubrication integrity while protecting internal components.
Tracked vehicles experience continuous vibration during operation. Reliable lubrication systems ensure that gears remain properly lubricated even under severe operating conditions.
This reduces friction, heat generation, and long-term wear.
Although other gearbox types exist, they rarely meet the unique demands of tracked construction equipment.
The undercarriage of a tracked vehicle contains rollers, idlers, and suspension components that leave very little room for large mechanical assemblies. Planetary gearboxes provide high torque within a compact structure that fits within this restricted space.
Tracked machines frequently experience sudden increases in torque when climbing slopes or pushing heavy loads. Gear systems must withstand these spikes without mechanical failure.
Planetary gearboxes distribute these loads effectively, improving drivetrain durability.
Construction machines rarely operate under constant speed. Frequent stops, starts, and directional changes place additional stress on drivetrain components.
Planetary drives handle these repeated load cycles more effectively than many other gearbox configurations.
Selecting the correct travel drive system requires careful evaluation of several engineering factors.
The required torque output depends heavily on machine size and weight. Larger excavators or crawler cranes require higher torque gearboxes to move the vehicle effectively.
Reduction ratio determines the relationship between motor speed and track speed. Engineers must balance travel speed with the torque required for traction and load movement.
Travel drive assemblies must integrate properly with the vehicle frame, braking system, and track sprocket. Proper mechanical alignment ensures efficient power transmission and long-term reliability.
Although excavators are the most recognizable tracked machines, planetary travel drives are used in many other heavy-duty mobile applications.
Compact track loaders operate in tight construction spaces where maneuverability and strong pushing power are essential. Planetary drives help these machines generate the torque needed for demanding tasks.
Large crawler cranes and drilling machines require powerful travel systems capable of moving heavy equipment safely across construction sites.
Tracked machines used in forestry and mining operations face extremely challenging terrain. Reliable planetary drive systems ensure these machines can operate safely and efficiently.
ZHEJIANG BAFFERO DRIVING EQUIPMENT CO., LTD. has more than three decades of experience in developing industrial transmission equipment. Since 1991, the company has focused on designing high-quality reducers used in demanding industrial environments.

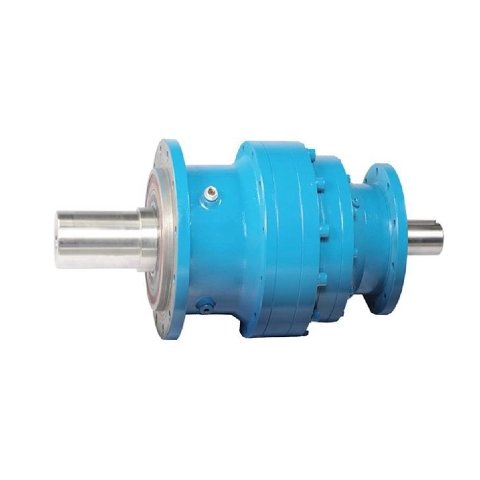

BAFFERO planetary gear reducers are designed with modular architecture, allowing them to adapt to different machine platforms and torque requirements. This flexibility helps equipment manufacturers design travel drive systems for various tracked vehicle models.
Construction machinery requires gearboxes capable of operating in challenging environments. BAFFERO planetary drives feature strong housings, durable bearings, and advanced sealing systems designed to withstand dust, vibration, and heavy loads.
Different vehicle manufacturers require different mounting configurations and drivetrain layouts. BAFFERO provides customized gearbox solutions that integrate effectively with hydraulic motors and travel drive assemblies.
Vehicle Requirement | Why It Is Critical | Planetary Drive Response | Practical Benefit for Machine Builders |
High traction torque | Moves heavy machines at low speed | Multi-stage torque multiplication | Stronger pulling power |
Compact installation | Limited undercarriage space | Coaxial planetary structure | Easier vehicle integration |
Shock load resistance | Uneven terrain and obstacles | Load sharing across planet gears | Reduced gear stress |
Contamination protection | Mud, dust, water exposure | Sealed gearbox housing | Improved durability |
Long service life | Continuous heavy-duty operation | Robust bearings and lubrication | Lower maintenance cost |
Tracked construction vehicles operate in some of the toughest working environments in modern industry. These machines require drivetrain systems that can deliver high torque, withstand heavy shock loads, and fit within compact undercarriage structures. Planetary gear technology meets all of these requirements through efficient torque transmission, compact design, and strong mechanical durability. For equipment manufacturers seeking reliable travel drive systems, a planetary drive gearbox developed by ZHEJIANG BAFFERO offers a dependable solution for demanding mobile machinery applications. Contact us to learn more about our planetary gearbox technologies and how they can support your tracked equipment designs.
The planetary design provides high torque density and compact structure, allowing the gearbox to deliver strong traction while fitting within the limited space of a tracked vehicle undercarriage.
Planetary reduction systems multiply torque efficiently and distribute loads across multiple gears, which improves durability when machines operate on uneven terrain.
Yes. Because torque is shared across several planet gears, the gearbox can absorb sudden load spikes more effectively than many traditional gear systems.
Hydraulic planetary drives are widely used in construction equipment, mining machinery, forestry vehicles, crawler cranes, drilling rigs, and road-building machines.
