| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| Experience | 35+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
Gearbox Information

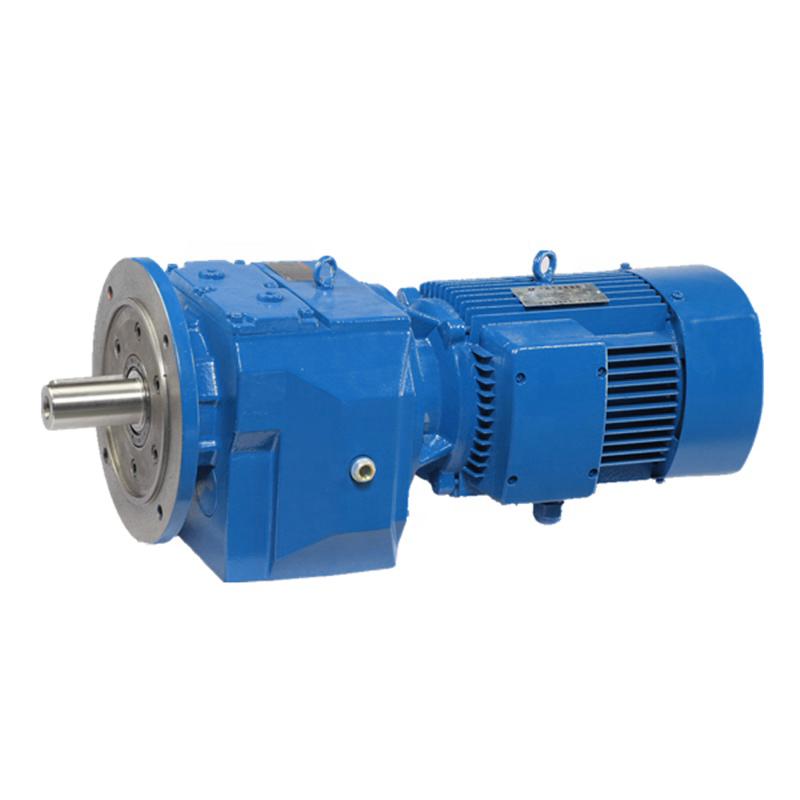

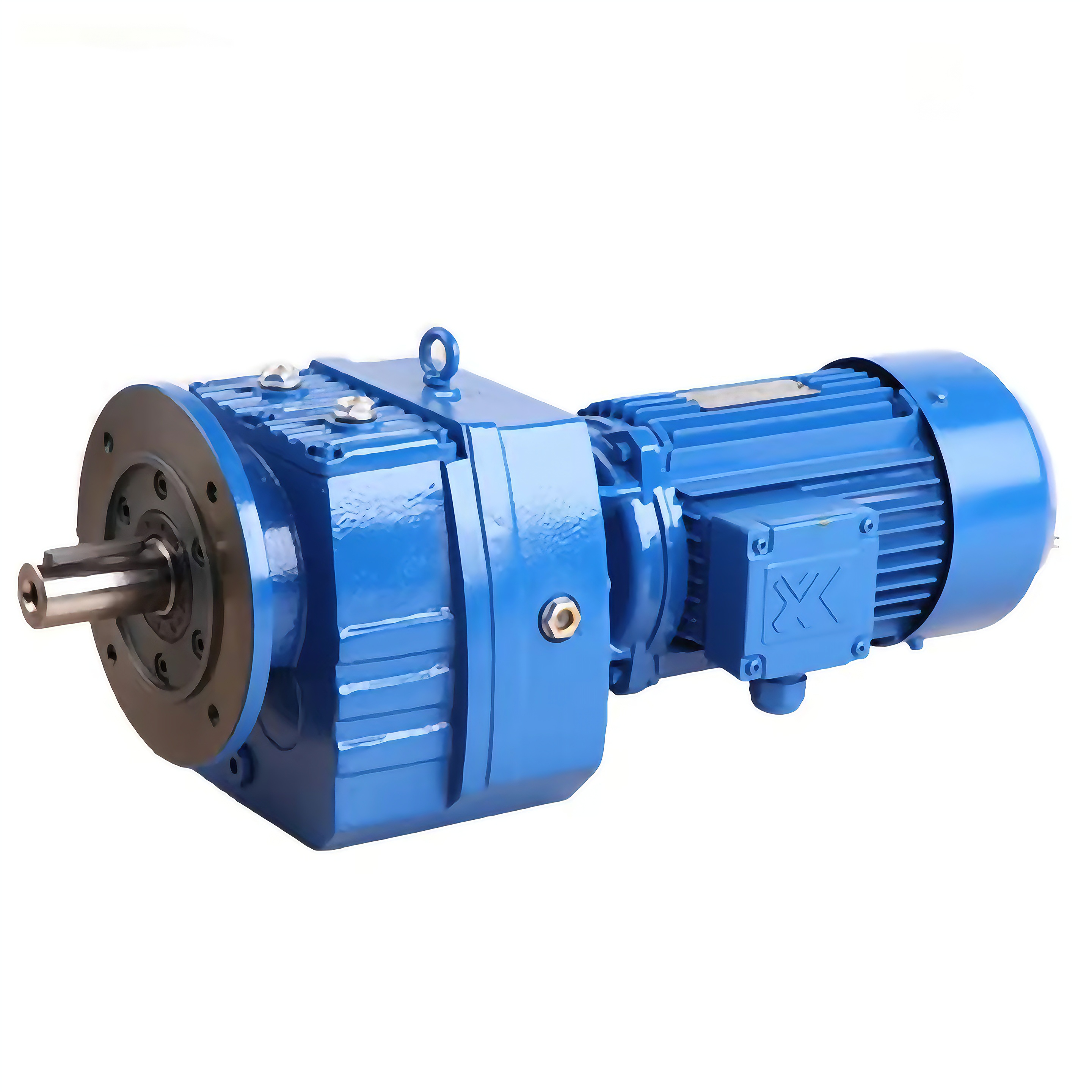

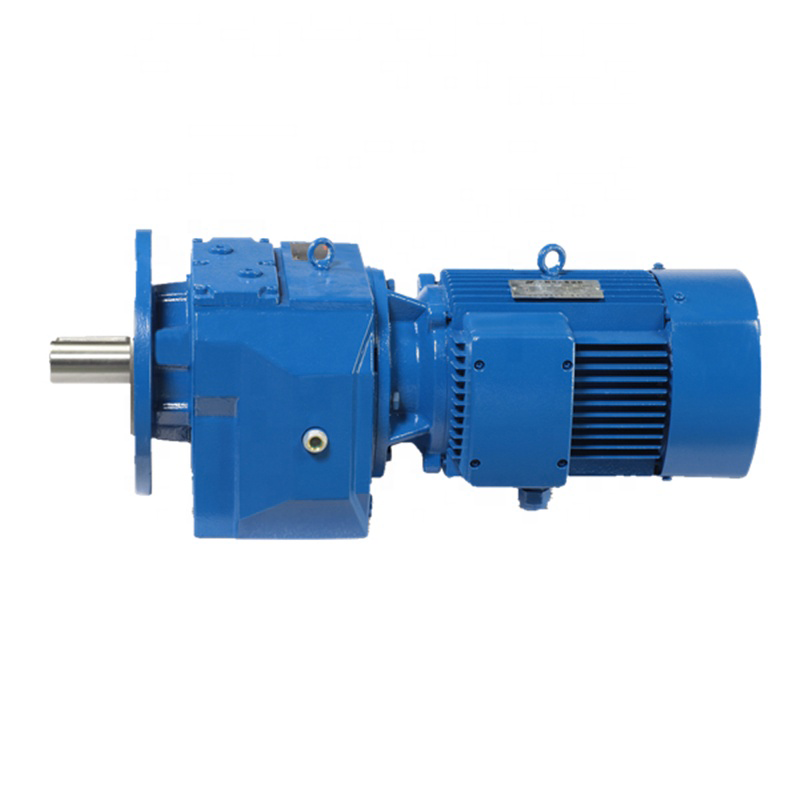

| Product Name | Helical gear reduction motor |
| Model Number | R17~R167/RF17-RF167/RS17-RS167/RM17~RM167 |
| Input Power | 0.18~160KW |
| Ratio | 3.37~264.42 |
| Output Torque | 85~18000 N.m |
| Heat Treatment | Carburizing and quenching |
| Gear Material | 20CrMnTi |
Housing Material | HT200/HT250 high-strength cast iron |
Shaft Material | 40Cr |
Surface Hardness of Gears | HRC58-62 |
Brand of Bearings | HRB heavy-duty bearing, C&U bearing |
Machining Precision of Gears | DIN6 (Ground ) |
Lubricating Oil | Gear oil |
Input Power Rating And Max Torque
| Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure | R/RF/RS/RM | ||||||||||||
Input power rating (kw) | 0.18-0.75 | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.18-7.5 | 0.18-11 | 0.55-22 | 0.55-22 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
Ratio | 3- 75 | 3-135 | 3-135 | 3-167 | 4-186 | 4-165 | 5-195 | 5-246 | 4-264 | 5-245 | 5-223 | 5 -163 | 8-196 |
Max torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
Gear Unit Weight
| Size | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
| Weight(kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 400 | 700 |
Reduecer Features:
Highly Standard Modular Designed
Quality material ensures the product reliability
High Strength, Compact Dimension
Long Service Life
Low Noise
High Efficiency
Large radial loading ability
Axial load ability of up to 5% of radial load
Transmission Efficiency: 2 stage (Ratio: 5-24.8) = 96%
3 stage (Ratio: 27.2-264) = 94%
Applications of R Reries Gearbox
Conveyor Systems
Food & Beverage Industry
Mining Industry
Chemical Industry
Logistics Automation
Lifting Equipment
OEM and Customized Gearbox Solutions
Including:
Custom gear ratio design
Shaft and flange modification
Motor matching solutions
OEM branding and labeling
Application-based engineering support
R Series Helical Gear Reducer FAQ
R Series Helical Gear Reducer is an inline shaft-mounted transmission solution designed for continuous industrial operation requiring high efficiency, stable torque output, compact structure, and low noise. It is widely used in conveyors, mixers, packaging machinery, lifting equipment, mining systems, food processing, and automated production lines.
Manufactured with precision-ground gears and optimized housing design, R Series gearboxes provide excellent load capacity, smooth transmission performance, and long service life.
1. Can your own brand of gear reducers replace SEW's gear reducers?
Absolutely, including the design style and the materials used for the reducer, it is exactly the same as SEW's. However, our reducers are more cost-effective. If you have previously used SEW reducers, please provide us with the model number, and we will find an exact replacement for you
2. What mounting options are available?
Foot-mounted
Flange-mounted
Inline installation
Supports multiple mounting positions (M1–M6)
3. What output shaft types are available?
Solid shaft
Hollow shaft
Custom shaft size and keyway supported
4. Why choose your company as supplier?
35+ years manufacturing experience
Strict quality control system
Competitive factory price
Fast response (within 2 hours)
Exported to Europe, USA, Southeast Asia
CE & ISO Certified
Fast Delivery
Need a Gearbox Selection or Quotation?
Send us the following information:
Required output torque
Motor power (kW)
Input speed / Output speed
Reduction ratio
Mounting type
Application industry
Quantity required
Our engineers will recommend the suitable model within 2 hours.
About Zhejiang Baffero
Zhejiang Baffero Driving Equipment Co., Ltd. is a leading manufacturer specializing in high-performance power transmission solutions. Based in Zhejiang, China, we integrate R&D, precision manufacturing, and global sales to provide robust industrial gearboxes.
Our core expertise lies in HB Series high-power gearboxes, DP / NSeries planetary units, and R/K/F/S modular geared motors. Utilizing advanced CNC technology and modular design, we deliver reliable, efficient, and cost-competitive drive solutions for industries such as mining, material handling, and automation worldwide.
