Brand Information
Product Information

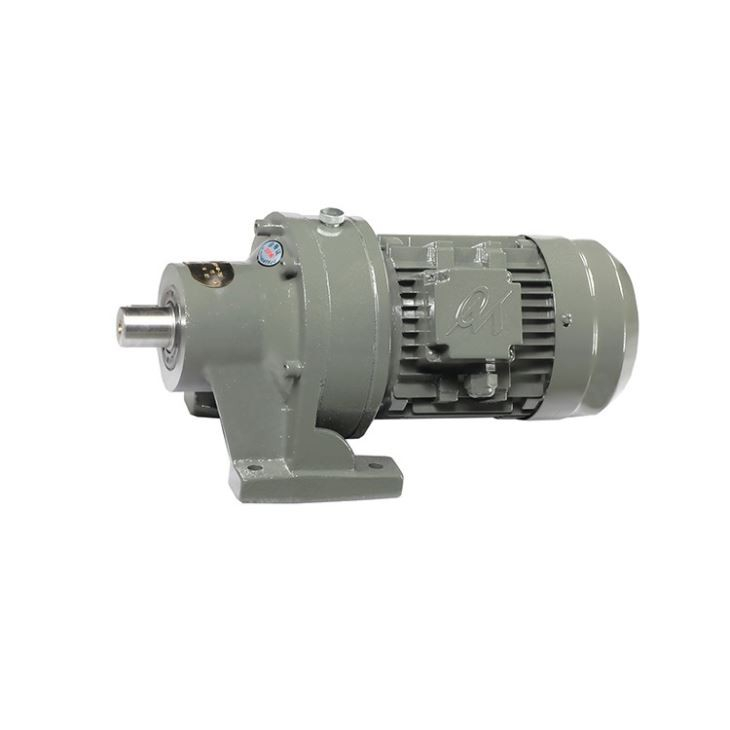

| Product Name | Cycloidal Gear Motor |
| Model Number | X2~X11 |
| Torque | 70 Nm to 20,000 Nm |
| Inout Power | 0.18 to 120KW |
| Ratios | 9~87 (single) 121~5133 (double) |
Gear Precision Grade | 6(ISO 1328) |
Gear Surface Hardness | HRC58-62 |
Gear Material | 20CrMnTi |
Shaft Material | 40Cr |
Housing Material | Main aluminium alloy ;Cast iron |
Bearing Brand | HRB ;NSK;SKF |
| Packing | Standard export packing |
Color | Blue; Gray |
Allowable Torque of Cycloid Speed Reducer
| Model | X2 | X3 | X4 | X5 | X6 | X7 | X8 | X9 | X10 | X11 |
Torque (N.m) | 150 | 250 | 500 | 1000 | 2000 | 2700 | 4500 | 7100 | 12000 | 20000 |
Features of Cycloid Cycloidal Gear Box
High reduction ratio up to 5311:1 with over 90% efficiency
Compact coaxial design with small installation space
Smooth operation with low vibration and low noise
Hardened alloy steel components for long service life
Easy maintenance with simple structure and lubrication system
Applications of Cycloidal Gear Reducer
Sewage Treatment
Steel Industry
Textile Industry
Conveyor machinery
Paper making equipment
Chemical Industry
Cooling Tower
Hoisting equipment
Sucrose Production
Cement Industry
Ropeway cable car
Curved Tooth Profile VS Traditional Involute Tooth Profile
The wheel incorporates a curved tooth profile instead of the more traditional involute tooth profile, which removes shear forces at any point of contact. This design introduces compression forces, instead of those shear forces that would exist with an involute gear mesh.
That provides a number of performance benefits including:
High shock load capacity (>500% of rating)
Minimal friction and wear, maintenance costs can be reduced
Lower mechanical service factors, among many others
X series Cycloidal Gearbox - FAQ
BAFFERO Cycloidal gear reducer, speed reducers and gearmotors are the premier in-line drives. The X series and our related products that utilize cycloidal gearing technology deliver the most robust solution in the most compact footprint. The main power train is comprised of an eccentric roller bearing that drives a wheel around a set of internal pins, keeping the reduction high and the rotational inertia low. The wheel incorporates a curved tooth profile instead of the more traditional involute tooth profile, which removes shear forces at any point of contact
1.How to choose the right cycloidal gear reducer?
To select the correct model, please provide:
Motor power (kW or HP)
Input speed (rpm)
Required output speed or gear ratio
Output torque requirement
Mounting type (foot or flange)
2. What are the motors compatible with this reducer？
Aluminum-housed motor
Explosion proof motor
Reduce motor
Brake motor
DC motor
Any type of motor can be equipped
3. Why choose Zhejiang Baffero as supplier?
35+ years manufacturing experience
ISO9001 & CE Certified
Competitive factory price
OEM & custom solutions
Full range of gear reducers
Fast response (within 2 hours)
Exported to Europe, USA, Southeast Asia
Reliable gearbox supplier for long-term cooperation
