Parallel Shaft Helical Gear Unit

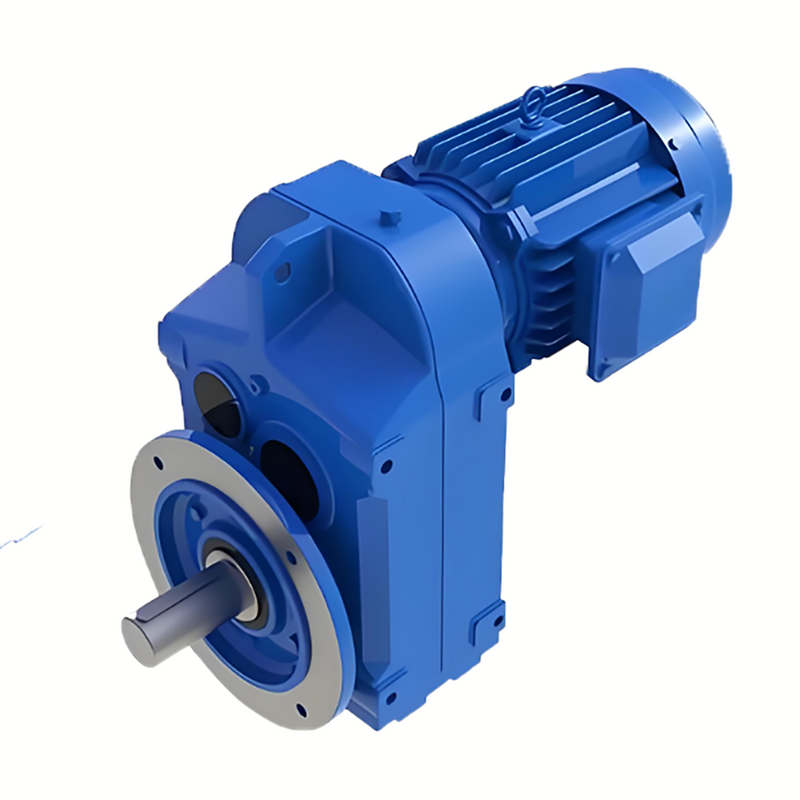

Product Name: F series parallel shaft helical gear unit
Brand Name: BAFFERO
Model Number: F37-F157
Certification: CE/ ISO9001/BV/SGS
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button



Product Name: F series parallel shaft helical gear unit

Brand Name: BAFFERO

Model Number: F37-F157

Certification: CE/ ISO9001/BV/SGS

Place of Origin: Zhejiang, China (Mainland)



Applicable Industries:

Gearing Arrangement: Helical

Output Torque: UP TO 18000N.m

Input Speed: 1400rpm(4pole)

Output Speed: 0.11-373rpm

Gear: Helical

Color: RAL5009 blue or other color

Housing Material: Iron Casting

Oil: Gear Oil

Customization: Acceptable

MOQ: 1 set

Motor Connection: Flange or Direct Connection

Mounting Type: Foot Mounted or Flange Mounted

Supply Ability: 5000 Pieces per Month

Packaging: Standard export plywood case

Delivery: standard export packing and wood pallets packing




All BAFFERO gear materials used 20CrMnTi, carburized, tooth surface hardness of 58-62HRC, after grinding teeth up to 6 accuracy, to ensure product reliability and low noise. F series gear reducer reduce from 0.18KW-200KW, the output torque up to18000N.M, speed ratio from (with 4-pole motor) 3.81-273, can be divided into two-stage transmission (transmission efficiency up to 96%), Three-stage transmission (transmission efficiency of up to 94%); with 6-pole or 8-pole motor can get lower output speed; For lower output speed can be used in combination of two-stage reducer, you can get a lower Output speed (more than ten thousand speed ratio). Above, such as the input coupled with continuous variable speed transmission can achieve more requirements. There are two types installation vertical and horizontal, the output shaft form solid mandrel, hollow shaft (or non-standard production), can be installed in different directions can be used. In addition, the gear box can be equipped with different types of motor (ordinary motor, explosion-proof motor, variable frequency motor, brake motor, etc.) F series parallel shaft helical gear reductor is widely used in food grain machinery, printing and packaging machinery, three-dimensional garage equipment, environmental protection machinery, transportation equipment, chemical equipment, metallurgical mining equipment, steel power equipment, etc.
