Parallel Shaft Speed Reducer

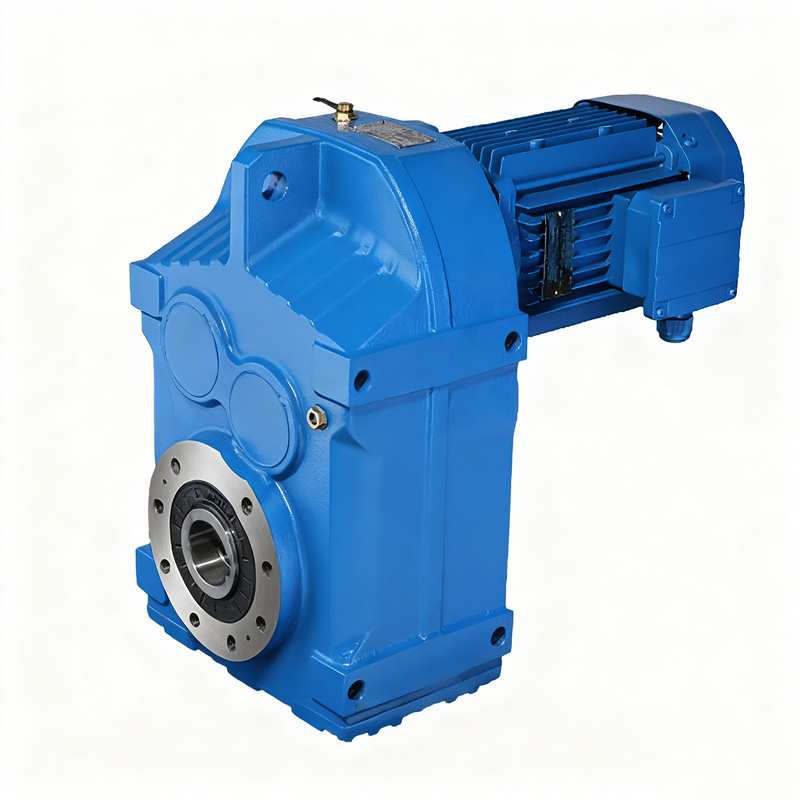

F series parallel shaft helical gearbox
1.Parallel Output
2.compact structure
3.wide transmission torque

All gear materials used 20CrMnTi, carburized, tooth surface hardness of 58-62HRC, after grinding teeth up to 6 accuracy, to ensure product reliability and low noise. Reducer reduce from 0.18KW-200KW, the output torque up to18000N.M, speed ratio from (with 4-pole motor) 3.81-273, can be divided into two-stage transmission (transmission efficiency up to 96%), Three-stage transmission (transmission efficiency of up to 94%); with 6-pole or 8-pole motor can get lower output speed; For lower output speed can be used in combination of two-stage reducer, you can get a lower Output speed (more than ten thousand speed ratio). Above, such as the input coupled with continuous variable speed transmission can achieve more requirements. There are two types installation vertical and horizontal, the output shaft form solid mandrel, hollow shaft (or non-standard production), can be installed in different directions can be used. In addition, the gear box can be equipped with different types of motor (ordinary motor, explosion-proof motor, variable frequency motor, brake motor, etc.). F series parallel shaft helical gear reducer is widely used in food grain machinery, printing and packaging machinery, three-dimensional garage equipment, environmental protection machinery, transportation equipment, chemical equipment, metallurgical mining equipment, steel power equipment, etc.

BRAND INFORMATION

FEATURES
1. Parallel output, compact structure, stable work, low noise, long service life
2. Installation: base installation, hollow shaft installation, flange installation, torque arm installation, small flange installation.
3. The basic two-level input and output rotation in the same direction.
4. The output mode: hollow shaft output or solid shaft output.
5. The average efficiency: two stage = 96 %, three stage = 94%, F series + R series combination of the average efficiency = 85%.

TECHNICAL PARAMETERS
structure type:
F-shaft extension, foot-mounted;
FF-shaft extension, flange connection
FA-hollow shaft
FS-axis input

INPUT POWER AND TORQUE (MAX)

F SERIES GEAR UNITS ARE AVAILABLE IN THE FOLLOWING DESIGNS
