Brand Information
Brand Name |
BAFFERO |
| Experience |
35+Years |
MOQ |
1 Set |
Warranty |
12 months |
Delivery Time |
25 Days |
Certification |
CE/ ISO9001/ BV/ SGS |
| Shipping Port |
Shanghai or Ningbo |
Place of Origin |
Zhejiang, China (Mainland) |
General Information
Model |
B3SH3-B3SH26 |
Input Power |
2.2-5366KW |
| Ratio |
1.25 - 450 |
| Input Speed |
Up to 2000r/min |
| Output Speed |
1.7-1200r/min |
| Output Torque |
Up to 470000Nm |
Gear Arrangement |
Helical Bevel gear |
Gear Precision |
DIN6 |
Gear Hardness |
HRC58 ~62 |
| Shaft Structure |
Right angle shaft, 90 degree shaft |
| Gear Type |
Helical Bevel gear |
Gear Heat treatment Processing |
Carburizing and Quenching |
Technical Data
| Gear Unit Type |
Stages |
Ratio |
Rated torque(KNm) |
Helical gear unit H |
1,2,3 and 4-stage |
1.25 - 450 |
1 - 900 |
Helical gear unit B |
2,3 and 4-stage |
5 - 400 |
1 - 900 |

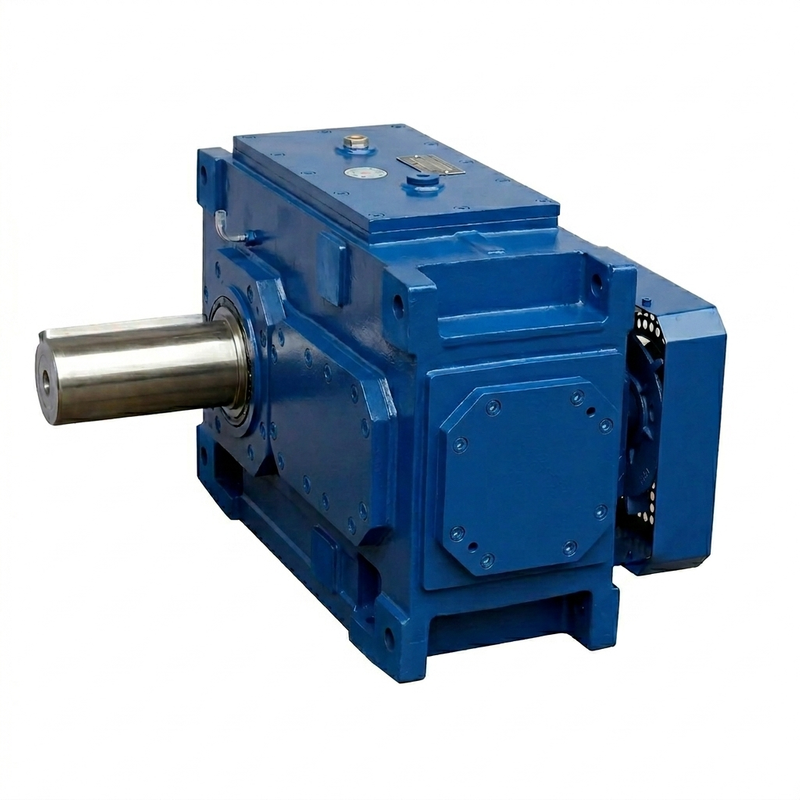

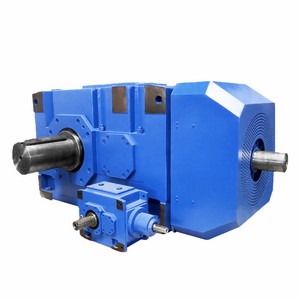

B series is Right angle helical gearmotor, which is standardized gear unit solutions for higher power rating ranges condition. It uses the Modular design system and High-stainless cast iron case.
1. Compacted structure and higher strength.
2. Reliable operation, higher transmission efficiency.
3. Providing the output shaft with Flange disc, which can meet mounting requirement of narrow space.
MOUNTING TYPES
Gear unit not only can horizontal Mounted ,but also can Vertical Mounted.
It can mounted as clients’ requirement.
Motor bell housing, Torque arm are parts of our standard product range.
NOISE BEHAVIOUR
New concepts were applied to clearly improve the noise emission of the gear units
Designing noise-absorbing case
Achieving exceptionally large contact ratios
All the gears have been grinded
THERMAL CONDUCTION
Gear units not only have a high efficiency but also have a favorable thermal conduction.
Through enlarged housing surface areas;
As large fans incorporating a new type of air conduction fan cowl are being used
Selection of gear unit is based on a lower maximum oil temper ature. By that, the operational reliability will be increased and the cost of maintenance reduced due to longer oil change intervals
STORING
Gear units have been designed according to a new unit construction principle, which reduce the variety of components.
LUBRICATION
Oil Dip and Splash Lubrication (Additional Compensation Oil Tank)
Forced Lubrication (Additional Oil Pump)
COOLING
Natural Cooling
Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
OUR SERIVICES
With an installed fleet of more than 500,000 high speed gearboxes and more than 28 years of experience, BAFFERO will become your alliance partner for the maintenance of your equipment at the highest technological level of performance and durability.
Highly skilled service engineers available in 24 hours
Delivery in shortest time
