| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
Experience | 35+Years |
| MOQ | 1Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | China |
Product Information

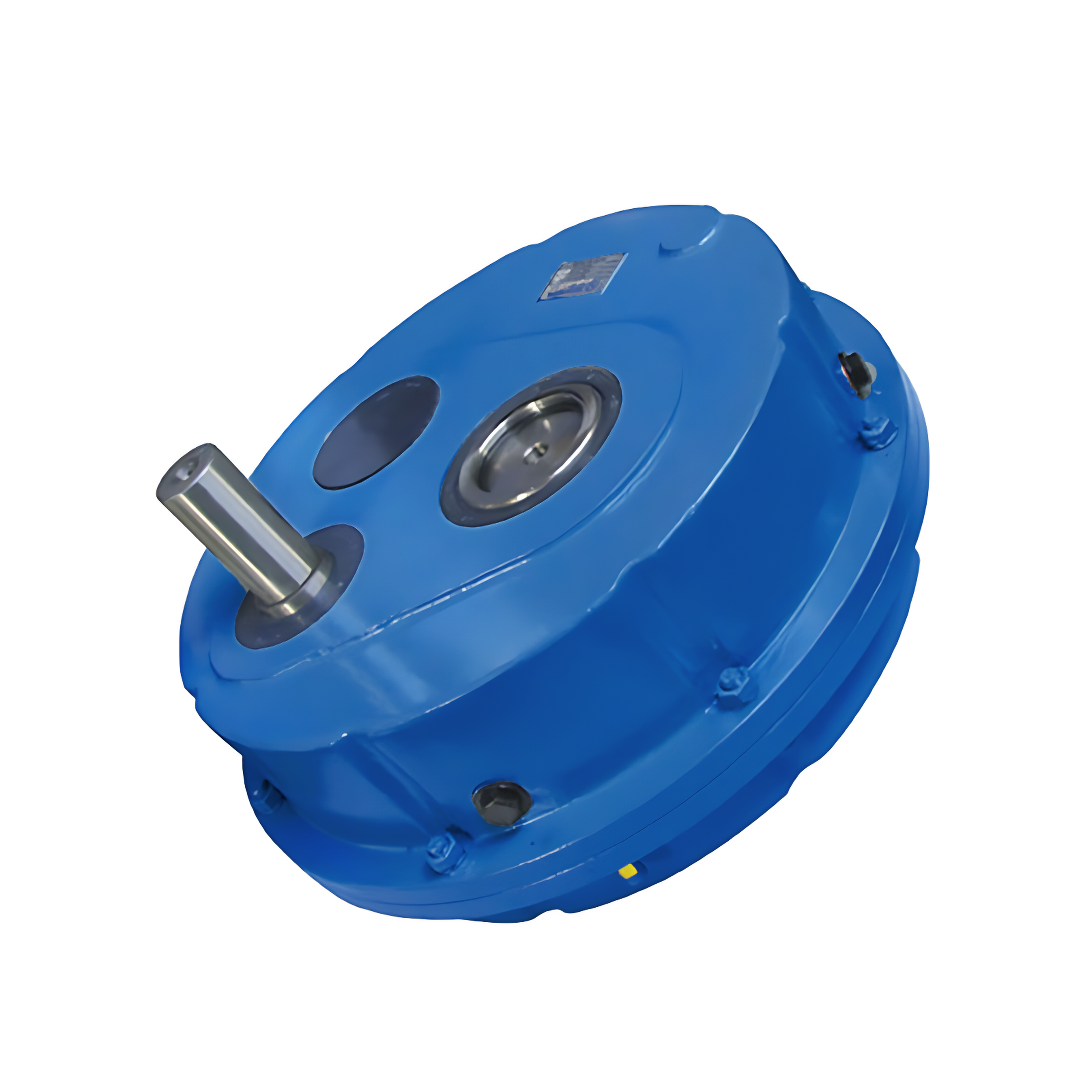

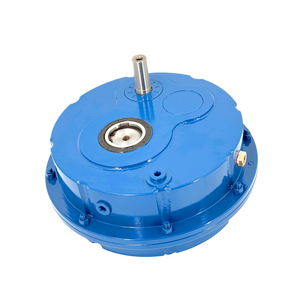

| Product Name | Shaft Mounted Helical Gearbox |
| Model Number | DXG30-DXG125 |
Ratio | 5, 7.5, 10, 12.5, 15, 20, 25, 31 |
Output Speed | 16-280rpm |
Rated Power | 1.6-193KW |
Output torque | 150-16000N.m |
Gear type | Helical |
| Input Type | Keyed Solid Shaft Input |
| Output Type | Keyed Hollow Shaft Output |
| Shaft Material | 40Cr |
| Gear Material | 20CrMnTi |
| Gear Heat treatment Processing | Carburizing and Quenching |
| Gear Hardness | HRC58 ~62 |
| Gear Precision level | ISO6 |
| Oil Seal | NAK brand |
| Bearing | NSK, SKF, FAG, HRB, ZWZ, LYC |
| Spare Parts | Torque arm, Optional Backs |
Mounting type | Torque arm, shaft mounted |
Optional accessory | Backstop |
Permitted Torque
Model | DXG30 | DXG35 | DXG40 | DXG45 | DXG50 | DXG60 | DXG70 | DXG80 | DXG100 |
Permitted torque | 180Nm | 420Nm | 950Nm | 1400Nm | 2300Nm | 3600Nm | 5100Nm | 7000Nm | 11000Nm |
Features of Shaft Mounted Helical Gear Speed Reducers
Absolute reliability and low maintenance for the quarry and mine applications
Sturdy ductile iron housing suitable for outdoor installation
Up to three optional output shaft bore diameters
Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
Dimensions are same with Bonfiglioli(TA Series)
Double lips oil seal combines the functions of seal and dust-proof
Widely used in belt conveyor and pulley drive system
Applications of Shaft Mounted Helical Gearbox
Conveyor & Material handling
Mining & Quarry
Crusher & Cement
Automatic production line & Mixer
Transport & Packaging
Food machine & Beverage
Construction & Metal processing
Plastic & Chemical industry
Maintence
After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
TA Series Bucket Elevator Gear Reducer - FAQ
The DXG series has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.
1. Why choose a shaft mounted helical gearbox from Zhejiang Baffero?
35 +Years Manufacturing Experience
ISO9001 & CE Certified
Full range of gear reducers
OEM & custom solutions
Global export experience
More competitive factory prices
2. How do I choose the right speed reducer for my application?
Please provide us:
Motor power
Input speed
Output speed or ratio
Torque requirement
Mounting type
Our engineers will recommend the best shaft mounted Gearbox for your application.
3. What heat treatment and hardness do your gears have?
Gear surface hardness: HRC58–62
Core hardness: HRC33–40
Gears are treated with carburizing and quenching, ensuring high strength, low noise, and long-lasting durability.
Not Sure Which Model Fits Your Elevator?
Tell us your requirements — we will recommend the right gearbox solution within 2 hours.
We Can Help You With:
Gearbox model selection
Torque & ratio calculation
Matching motor recommendation
Installation drawing support
About Us
Zhejiang Baffero Driving Equipment Co., Ltd. is a high-tech enterprise dedicated to the development and manufacturing of gear reducers since 1991. With strong R&D capability and advanced production equipment, the company delivers both standard and customized solutions.
All products comply with ISO9001 quality management system and CE certification, ensuring high efficiency, durability, and stable performance for heavy-duty applications worldwide.
