| Quantity: | |
|---|---|
Brand Information
Brand | Baffero |
Experience | 34+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
Certification | CE/ ISO9001/ BV/ SGS |
Shipping Port | 10000 Pcs per a month |
Delivery time | Shanghai or Ningbo |
Place of Origin | China |
Gearbox Information

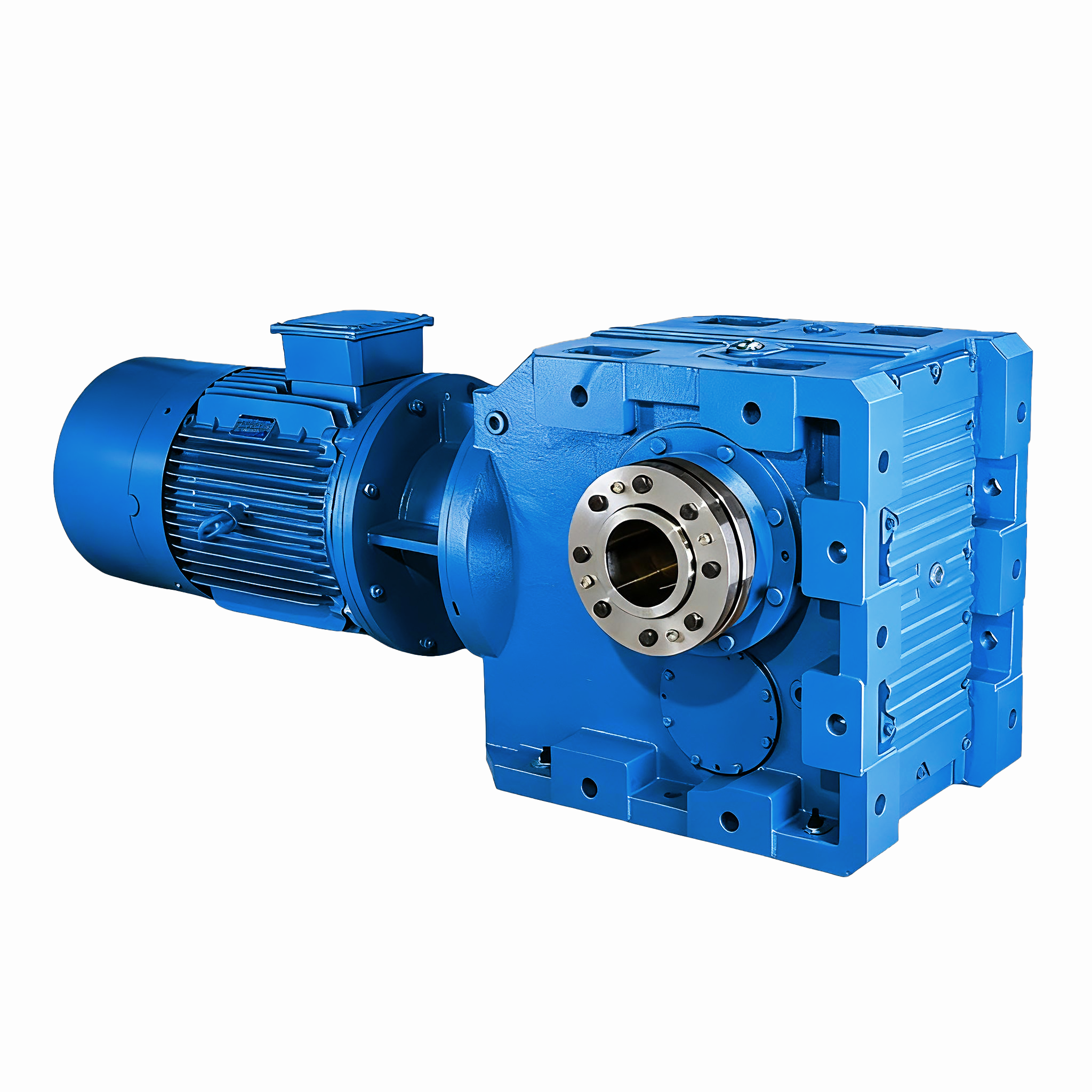

| Product Name | Helical Worm Gear Reduction |
| Model Number | S37-S97 |
| Input Power | 0.18~22KW |
| Ratio | 10.27~244.74 |
| Output Torque | 90-4000N.m |
| Gear Precision | 5-6 (ISO1328) |
Gear Arrangement | Helical-worm |
Gearbox Casing Material | Cast Iron |
Gear Material | 20CrMnTi |
Gear Hardness | HRC58 ~62 |
Shaft | 40Cr and 20CrMnTi |
Color | Blue, grey or other. |
Gear Heat treatment Processing | Carburizing and Quenching |
Mounting type | Foot, flange, torque arm, hollow /solid shaft |
Input Power Rating and Max Torque
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
Structure | S SA SF SAF SAT SAZ | ||||||
Input power rating (kw) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
(Ratio) | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.5-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
Max torque (N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
What is the Cast iorn helical worm gearbox?
S series helical-worm speed reducer adopts the helical gearworm wheel type to make the structure more reasonable.The series not only has higher transmission efficency and loading capability than those of single-stage worm wheel transmission, but also reduces space.Moreover,udner the close volume,the series can obtain higher transmission ratio and is more favorable for equipment setting. The product can be combined with various reducers and variators to meet the different requiements.
Cast Iron Helical Worm Gearbox - FAQ
The S Series helical worm gear reducer is a compact transmission device combining helical gears and worm gear technology, designed to deliver smooth operation and reliable performance in industrial applications.
1. How to choose the right S Series gear reducer?
To select the correct model, please provide:
Motor power (kW)
Required output speed (RPM)
Output torque (Nm)
Application details
2. What is the noise level of your gearbox?
Noise level: 65–75 dB
3. Applications of S Series Gear Reducers
Conveyor Systems
Mixing Equipment
Food Processing Machinery
Packaging Lines
Wastewater Treatment
Not Sure Which Model to Choose?
Tell us your requirements,
Our engineering team can recommend the most suitable solution.
About Zhejiang Baffero
Zhejiang Baffero Driving Equipment Co., Ltd. is a trusted gearbox supplier with 35+ years of manufacturing experience, offering high-quality and cost-effective power transmission solutions. With ISO9001 and CE certifications, we ensure stable quality, fast delivery, and competitive pricing. Our full range of gear reducers is designed to meet diverse industrial needs, helping customers improve efficiency and reduce maintenance costs.
