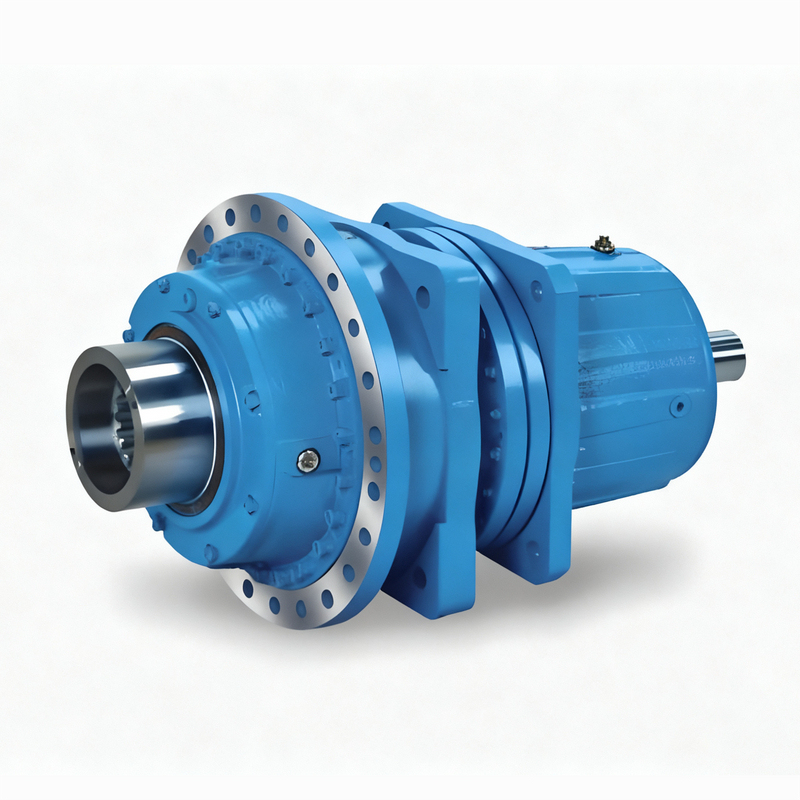

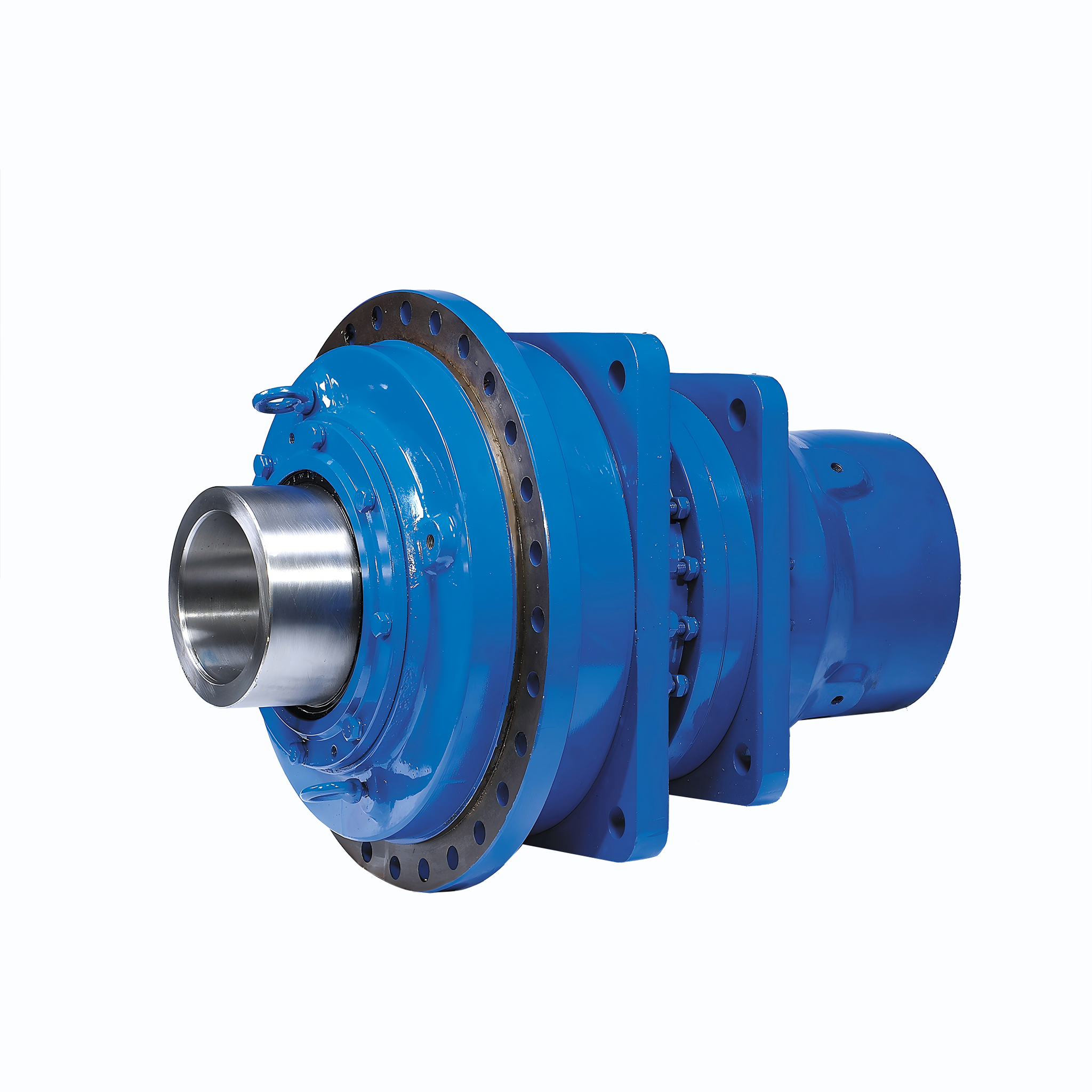

P Series FLENDER Parallel High Torque Shaft Planetary Gearbox

FLENDER Type High Torque Parallel Shaft Planetary Gearbox

FLENDER Type Planetary Gearbox

Input Power: 0.37~12934KW
Ratio: 25~280
Output Torque: 22000~2600000 N.m
Output Speed: 2.7~60r/min
Output Shaft: Hollow shaft , Solid shaft
Mounting: Foot mounted, Flange mounted, Torque arm mounted
Certification: CE/ ISO9001/ BV/ SGS

Quantity:
Availability:





Inquire Add to Basket

Product Description

Brand Information

Brand Name	BAFFERO
Experience	35+Years
MOQ	1 Set
Delivery Time	25 Days
Warranty Time	12 Months
Certification	CE/ ISO9001/ BV/ SGS
Supply Ability	10000 Pcs per a month
Shipping Port	Shanghai or Ningbo
Place of Origin	China

Gearbox Information

Geabox Name	DP Series Planetary Gearbox
Gearbox Model	DP2N9~DP2N36; DP3N9~DP3N36
Input Power	43~12934KW(2-Stage); 6.2~1953KW(3-Stage)
Input Speed	750; 1000; 1500
Output Torque	22000~2600000(2-stage); 22000~1920000(3-stage)
Gear Precision	DIN6 (ISO1328)
Gear Arrangement	Planetary gear
Gearbox Casing Material	Cast Iron
Gear Material	20CrMnTi
Gear Hardness	HRC58 ~62
Shaft	40Cr and 20CrMnTi
Color	As requirement
Gear Heat treatment Processing	Carburizing and Quenching

DP Series Planetary Gear Reducer Design

1) Planetary Stage

2 stage(DP2N9~36, DP2L9~36, DP2S9~36, DP2K9~36)
3 stage

2) Input Mode

N standard (coaxial mode)
S 1st stage helical gear shaft
L 1st bevel gear shaft
K 1st bevel-helical gear shaft.

3) Output Mode

Solid shaft with key
Solid shaft with involute splines
Hollow shaft with shrink disc
Hollow shaftwith involute splines

Features

High modular design.
Compact design and dimension, light weight.
Wide range of ratio, high efficiency, stable running and low noise level.
Several planet wheels run with load at the same time and distribute the power to realize the combination and separation of moving.
Realize the coaxial transmission easily.
Rich optional accessories.

Application Examples

Belt conveyor drives
Bucket elevator drives
Agitator drives
Hoisting gear drives
Travelling gear drives
Paper machine drives
Dryer drives
Water screw drives

DP Series Planetary Gearbox - FAQ
DP Planetary gearbox is standardized gear unit solutions for higher power rating ranges in the proven FLENDER quality. With 27 sizes and seven basic types the DP series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1. it widely used for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc .

1. What are the available cooling equipment options？

Fan
Cooling coil
Tube cooler (water-cooled)
Cooling fan (external air-cooling device)

2. How to select the right DP gearbox?

Please provide:

Required output torque
Motor power (kW)
Gear ratio
Installation method
Working condition
Application industry

If you have previously purchased gear reducers from other Italian brands, such as Flender, please feel free to provide us with the specific model number, and we will select the most suitable gear reducer for your equipment.

3. When should I choose DP series instead of N series planetary gearboxes?

If your required output torque exceeds 100,000 N.m, or your equipment operates under extremely heavy loads, the DP series is generally a better choice.
