Power: 0.37~12934KW
Ratio: 25~280
Torque: 22000~2600000N.m
Speed: 2.7~60r/min
Shaft: Hollow shaft , Solid shaft
Mounting: Foot mounted, Flange mounted, Torque arm mounted
Certification: CE/ ISO9001/ BV/ SGS
| Quantity: | |
|---|---|

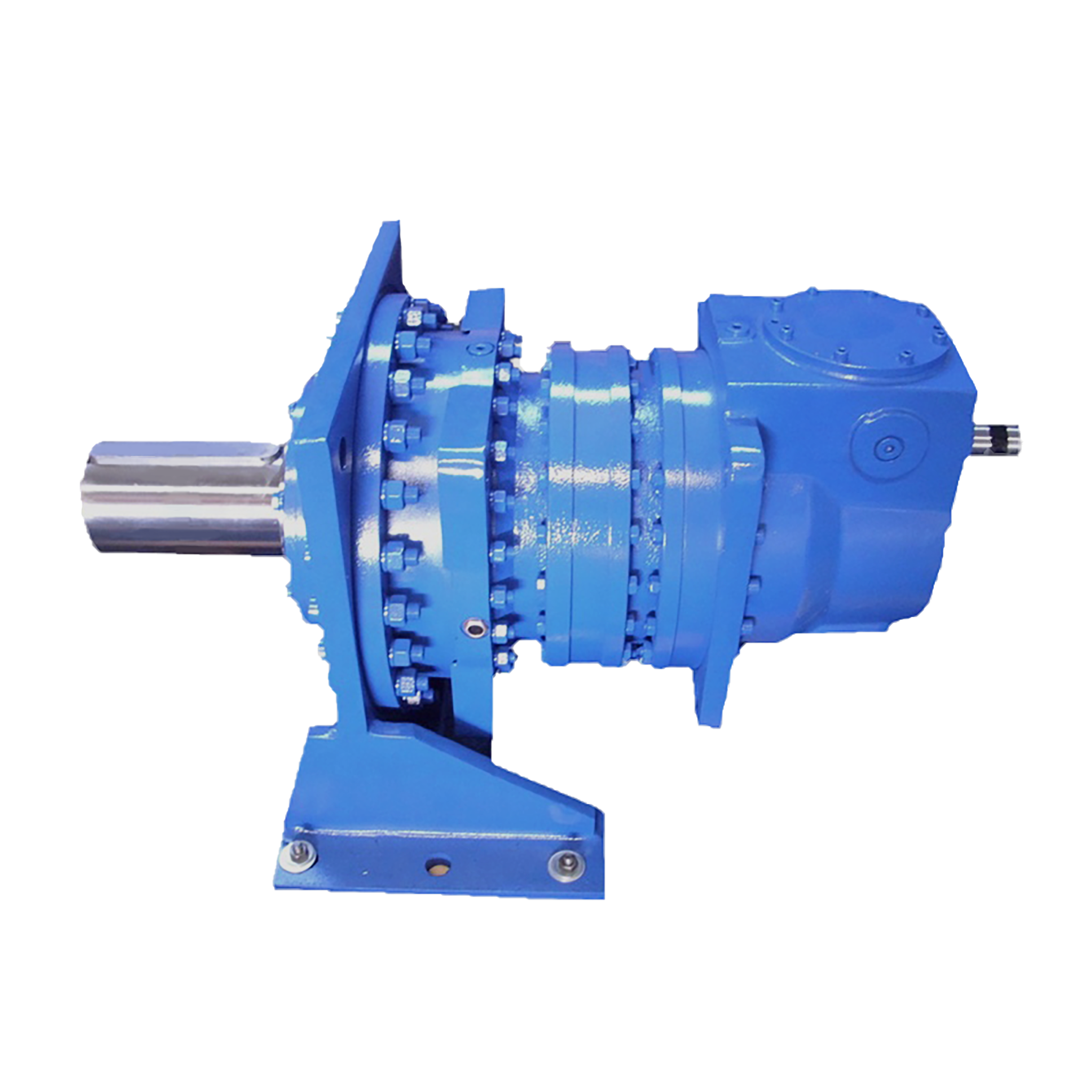

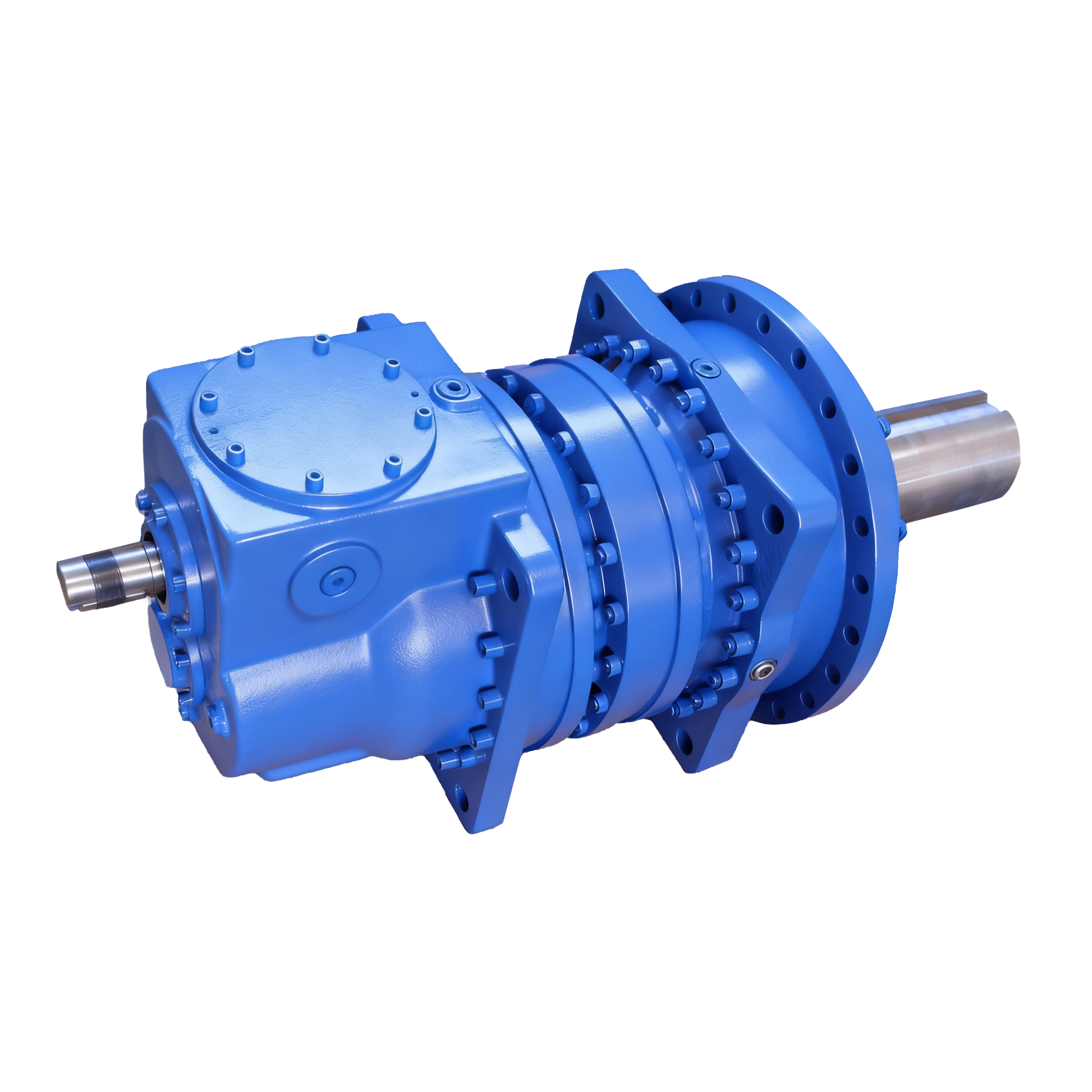

The DP Series Foot Mounted Parallel Shaft Planetary Gearmotor is engineered to deliver exceptional mechanical power transmission for the most demanding industrial environments. By combining an optimized parallel shaft design with an advanced planetary gear transmission structure, this unit achieves outstanding radial and axial load capacities. It is purpose-built to generate immense output torque, reaching up to 2,600,000 Nm for two-stage configurations and 1,920,000 Nm for three-stage setups. Every gear undergoes rigorous carburizing and quenching processes, achieving a surface hardness of HRC58-62, which ensures long-lasting wear resistance under continuous friction. Furthermore, the gear machining precision meets the strict DIN6 (ISO1328) standards. This translates into low backlash, minimal vibration, and a notably quiet operational hum even under maximum capacity. This precise engineering significantly boosts overall transmission efficiency and extends the operational lifespan of your entire equipment setup.
| Brand Name | BAFFERO |
| Experience | 35+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Supply Ability | 10000 Pcs per a month |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
| Geabox Name | DP Series Planetary Gearbox |
| Gearbox Model | DP2N9~DP2N36; DP3N9~DP3N36 |
| Input Power | 43~12934KW(2-Stage); 6.2~1953KW(3-Stage) |
| Input Speed | 750; 1000; 1500 |
| Output Torque | 22000~2600000(2-stage); 22000~1920000(3-stage) |
| Gear Precision | DIN6 (ISO1328) |
| Gear Arrangement | Planetary gear |
| Gearbox Casing Material | Cast Iron |
| Gear Material | 20CrMnTi |
| Gear Hardness | HRC58 ~62 |
| Shaft | 40Cr and 20CrMnTi |
| Color | As requirement |
| Gear Heat treatment Processing | Carburizing and Quenching |
Industrial operations that process heavy, abrasive, or massive volumes of materials require drive systems that will not falter under pressure. The DP Series is carefully adapted for these exact scenarios, offering specialized configurations for complex applications across multiple sectors.
Mining and Cement: Essential for driving roller presses, apron conveyors, tube mills, rotary kilns, and bucket excavators. The gearmotor maintains steady rotation against the heavy resistance of crushed stone and raw minerals.
Cranes and Lifting Equipment: Provides the critical controlled torque needed for slewing gear systems and heavy-duty trolleys, ensuring safe and precise positioning of massive suspended loads.
Chemicals and Pharmaceuticals: Ideal for large-scale agitators and mixers. The consistent, low-vibration output prevents fluid separation issues and handles highly viscous chemical mixtures efficiently.
Beyond these standard uses, our engineering team provides deep OEM customization services. Whether you need non-standard speed ratios, specialized output shafts, or unique hydraulic motor connections, the gearmotor can be tailored to match the specific physical and mechanical constraints of your facility.
Equipment integration should be straightforward, which is why the DP Series is built around a highly modular component architecture. This versatile design philosophy allows the gearmotor to be assembled with various standardized parts, enabling direct interchangeability with equivalent products from major international brands. By utilizing these modular configurations, procurement managers can significantly reduce their spare parts inventory pressure and shorten overall delivery lead times.
Optional configurations to simplify your equipment integration include:
Hollow Shaft & Solid Shaft: Multiple shaft options available in 40Cr and 20CrMnTi materials to match your existing coupling setups.
Shrink Disc: Provides a secure, keyless interference fit for high-torque transmission without fretting wear.
Flange Output: Ensures stable, direct mounting to driven machines.
IEC Motor Adapter: Standardized flanges that accept globally available electric motors, lowering replacement costs.
Hydraulic Motor Connection: Readily adaptable for mobile machinery or environments where hydraulic power is preferred.
The physical foundation of the DP Series is its exceptionally rigid cast iron casing. When you inspect the exterior, the thick-walled construction and strategically placed cooling fins project a sense of absolute industrial durability. This heavy-duty structural design is specifically engineered to resist extreme impact loads and sudden operational shocks common in crushing and grinding applications.
The rigid housing provides several critical operational advantages:
Higher Impact Resistance: The dense cast iron absorbs and dissipates kinetic energy from sudden jams or heavy material drops.
Better Load Distribution: The internal geometry maintains precise gear alignment, preventing localized stress concentrations on the 20CrMnTi alloy gears.
Stable Operation Under Shock Loads: Minimizes casing deflection, keeping the internal DIN6 precision gears meshing perfectly even during torque spikes.
Suitable for Continuous Industrial Operation: The thermal mass of the housing aids in heat dissipation, preventing oil degradation during 24/7 continuous duty cycles.
The DP Series Planetary Gearbox is designed for heavy-duty industrial applications requiring extremely high torque, compact installation space, and reliable power transmission. Compared with standard planetary gearboxes, the DP series offers a significantly larger load capacity and higher output torque. It is the preferred solution for mining machinery, material handling systems, steel processing plants, cement factories, and large-scale conveyor networks.
If your required output torque exceeds 100,000 N.m, or your equipment operates under extremely heavy, fluctuating loads, the DP series is generally the better choice. Its parallel shaft integration provides the extra mechanical leverage and structural rigidity needed for extreme conditions.
Yes. We support extensive OEM manufacturing. Our engineering team can adjust customized ratios, modify output shafts, adapt different motor inputs, and design specialized mounting configurations to fit your exact spatial and mechanical requirements.
To select the correct model and ensure optimal performance, please provide our technical team with the following details:
Motor power (kW)
Required output speed (RPM)
Output torque (Nm)
Application details (environmental conditions, duty cycle, and driven equipment type)
Our engineering team will analyze these parameters and recommend the most suitable, energy-efficient solution for your project.
Securing a dependable source for heavy industrial transmission equipment is vital for maintaining continuous production lines. Zhejiang Baffero stands out as a trusted partner for global procurement teams, offering comprehensive support from initial design consultation to final delivery.
Zhejiang Baffero provides:
35+ years manufacturing experience: Decades of accumulated engineering knowledge applied to every unit we produce.
ISO9001 & CE certified production: Every gearmotor is manufactured under strict international quality protocols.
OEM non-standard gearbox customization: We build gearboxes tailored to your specific operational blueprints, not just off-the-shelf items.
Fast quotation within 2 hours: Receive detailed technical proposals and pricing swiftly to keep your projects on schedule.
Export experience to global markets: Smooth logistics and compliance handling for international shipments.
Contact us now for technical support and quotation.
