| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
Experience | 34+Years |
| MOQ | 1Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | China |
Quick details

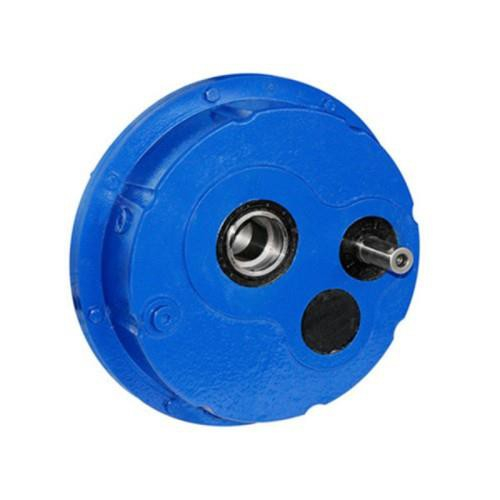

| Product Name | Shaft Mounted Helical Gearbox |
| Model Number | DXG30-DXG125 |
Ratio | 5, 7.5, 10, 12.5, 15, 20, 25, 31 |
Output Speed | 16-280rpm |
Rated Power | 1.6-193KW |
Output torque | 150-16000N.m |
Gear type | Helical |
Mounting type | Torque arm, shaft mounted |
Gear Precision level | DIN6 |
Optional accessory | Backstop |
Color | Blue, grey or other. |
Permitted Torque
Model | DXG30 | DXG35 | DXG40 | DXG45 | DXG50 | DXG60 | DXG70 | DXG80 | DXG100 |
Permitted torque | 180Nm | 420Nm | 950Nm | 1400Nm | 2300Nm | 3600Nm | 5100Nm | 7000Nm | 11000Nm |
The DXG series has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.
Applications
Conveyor & Material handling
Mining & Quarry
Crusher & Cement
Automatic production line & Mixer
Transport & Packaging
Food machine & Beverage
Construction & Metal processing
Plastic & Chemical industry
Maintence
After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
FAQ
1. How to choose a speed reducer which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter, etc.
2. What information shall we give before placing a purchase order?
a. Type of the gearbox, ratio, input and output type, input flange, mounting position and motor information.
b. Housing color
c. Purchase quantity
d. Other special requirements.
3. What industries are your gearboxes being used?
Our transmission gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalater, automatic storage equipment, metallurgy, tobacco, environment protection, logistics and etc.
4. Do you sell motor together?
Yes, but we don’t manufacture motor, we have several stable motor suppliers who have been cooperating with us for long time, they provide us high quality motors.
