| Quantity: | |
|---|---|
Brand Information

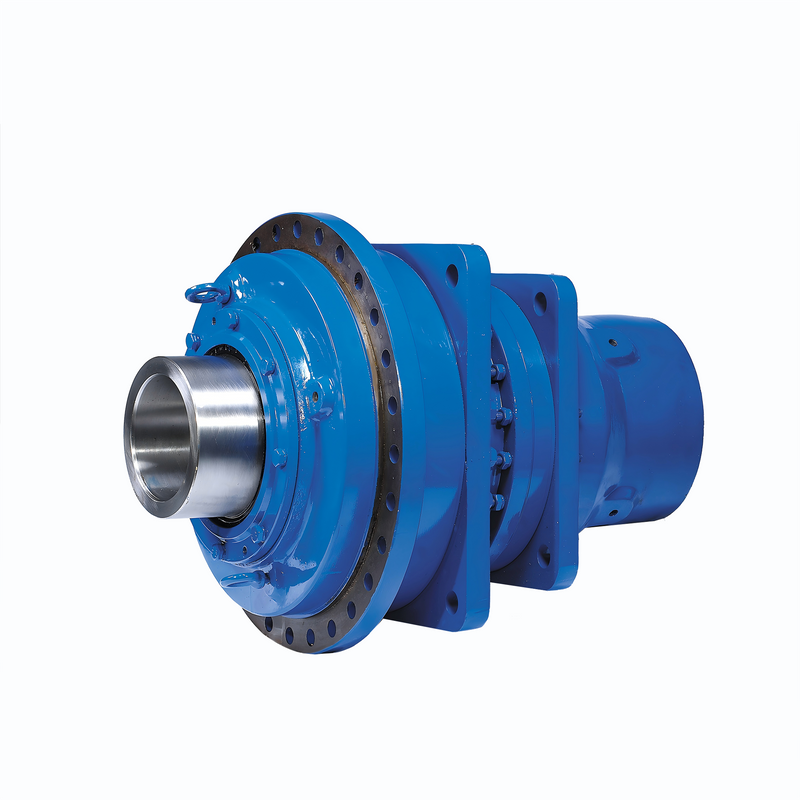

| Product Name | DP Series Inline Planetary Gearbox |
| Model Number | DP2N9~DP2N36; DP3N9~DP3N36 |
| Input Power | 0.8~12934KW |
| Ratio | 25~280 |
| Output Torque | 22000~1920000 N.m |
| Output Speed | 2.7~60r/min |
| Output Shaft | Hollow shaft , Solid shaft |
| Mounting | Foot mounted, Motor brackt, Torque arm |
| Gear Precision | DIN6 (ISO1328) |
Gear Arrangement | Planetary gear |
Gearbox Casing Material | Cast Iron |
Gear Material | 20CrMnTi |
Gear Hardness | HRC58 ~62 |
Shaft | 40Cr and 20CrMnTi |
Color | As requirement |
Gear Heat treatment Processing | Carburizing and Quenching |
DP Series Planetary Gear Motor Application
Widely used for industry equipment
Metallurgy
Building Material
Chemical
Mining
Oil
Transportation
Papermaking
Sugar making
Engineering Machines
Planetary Gear Speed Reducer Feature
Greatest power capacity and highest reliability
High efficiency and performance(The transmission efficiency is 98%.)
Finely spaced transmission ratios with up to 53 steps
Maximum flexibility when selection the motor due to conformity with all international motors and interface standards
Five output shaft versions for easy connection to the work machines
Available as an individual gear unit or as an integrated drive system .
DP Series Planetary Gear Motor - FAQ
DP planetary gearbox is standardized gear unit solutions for higher power rating ranges in the proven FLENDER quality. With 27 sizes and seven basic types the DP series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.
1. How to select a right DP series planetary gearbox?
Please provide us:
Motor power
Input speed
Output speed or ratio
Torque requirement
Mounting type
We will recommend the best model for you.
2. What is the difference between DP and N series planetary gearbox
Compared to the N‑series planetary, the DP is larger in size and has higher load capacity. For applications that require a planetary gearbox with a rated output torque greater than 100,000 N·m, DP is the only choice.
3. What is the advantage of choosing Zhejiang Baffero?
35+ years gearbox manufacturing experience
Strong OEM capability
Stable export quality
Fast delivery support
Professional technical team
Competitive factory pricing
Need a DP Series Planetary Gear Reducer?
Contact us now to get factory direct pricing and technical support. Bulk orders and OEM services are available
