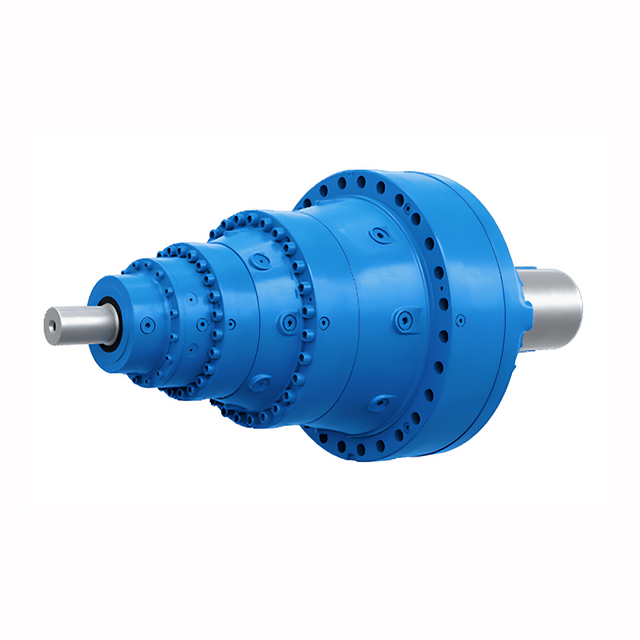

High torque inline gearboxes represent the pinnacle of coaxial power transmission technology, delivering exceptional torque density and precise motion control for demanding industrial applications. Our inline planetary gearbox series combines advanced helical planetary gear technology with compact inline configuration, ensuring optimal efficiency and reliability across automation, robotics, and machine tool operations. Engineered with precision-ground gearing and reinforced bearing systems, these inline speed reducer gearboxes deliver consistent performance even in high-cycle, high-load environments where space constraints and operational precision are critical.
Our comprehensive range of high torque inline gearbox solutions addresses diverse industrial motion control requirements. The P-Series High Torque Planetary Gear Units feature modular construction with backlash ≤ 3 arcmin, making them ideal for servo applications demanding ultra-precise positioning. For applications requiring higher reduction ratios, our High Torque Ratio Gearbox Planetary Gear Motor integrates seamlessly with various motor types while maintaining efficiency ratings up to 96% per stage.
The product portfolio extends to specialized configurations including hollow shaft planetary gear units for direct mounting applications, parallel shaft planetary gearmotors for heavy-duty operations, and right-angle planetary gear units where 90-degree power transmission is required. Our high torque planetary reducer models incorporate hardened alloy steel gearing with surface treatment reaching 840 HV, ensuring extended service life even under continuous operation. Whether you need a 2 1 inline gearbox for standard applications or a 3 1 inline gearbox for higher reduction requirements, our modular design allows flexible configuration to match your exact specifications.
Superior Torque Density: Our coaxial helical inline gearbox design distributes load across multiple planetary gears, transmitting three times the torque of conventional spur gearboxes in a comparably sized housing. This multi-planet load distribution minimizes stress concentrations and dramatically extends component lifespan.
Exceptional Efficiency Performance: Precision-ground helical gearing achieves 96-98% efficiency per reduction stage, significantly reducing energy consumption and heat generation. The inline motor gearbox configuration maintains straight-line power flow, minimizing internal friction losses compared to right-angle alternatives.
Low Backlash Precision: Case-hardened and ground gear teeth ensure backlash as low as 1-3 arc-minutes, essential for CNC machinery, robotic manipulators, and automated positioning systems requiring repeatable accuracy. Our patented input bearing system guarantees perfect concentricity throughout the operational cycle.
Compact Installation Footprint: The inline reversing gearbox series features coaxial shaft alignment, enabling space-efficient integration where mounting space is limited. IP65-rated housing options with reinforced sealing protect internal components in harsh industrial environments including high dust, moisture, and temperature variations.
As a leading inline helical gearbox manufacturer, we serve diverse sectors requiring precision motion control. In automation and robotics, our inline 2 speed gearbox solutions enable rapid acceleration and deceleration cycles with minimal overshoot. CNC machine tools benefit from the ultra-low backlash characteristics, ensuring dimensional accuracy in complex machining operations.
The packaging industry relies on our units for high-speed filling, labeling, and material handling systems where consistent timing and synchronization are paramount. Material handling conveyors utilize the high torque capacity for moving heavy loads while maintaining energy efficiency. Medical equipment manufacturers specify our gearboxes for diagnostic imaging systems and surgical robotics requiring smooth, vibration-free operation. Semiconductor manufacturing equipment depends on the clean-room compatible variants with food-grade lubrication and stainless steel construction.
Choosing the optimal high torque inline gearbox requires evaluating several critical parameters. First, determine your required reduction ratio based on motor speed and desired output RPM. Calculate the continuous output torque by considering both steady-state loads and peak acceleration requirements, applying appropriate service factors for shock loads or frequent start-stop cycles. Consider ambient operating temperature ranges, as extreme conditions may necessitate synthetic lubricants or upgraded sealing systems.
Installation space constraints will dictate whether you need foot mounting, flange mounting, or hollow bore configurations. For applications with significant overhung loads or thrust forces, verify that bearing capacities meet your specific requirements. Our engineering team recommends reviewing detailed technical specifications including efficiency curves, thermal ratings, and mounting dimensions. To access comprehensive product datasheets, CAD models, and application engineering support, visit our technical resources section where you can download complete installation and maintenance manuals.
What is the typical efficiency range for inline planetary gearboxes?
Our inline planetary gearbox series achieves 96-98% efficiency per reduction stage under optimal loading conditions. Multi-stage configurations maintain cumulative efficiency of 92-95%, significantly outperforming worm gear alternatives which typically range from 50-90% efficiency.
How do I determine the correct service factor for my application?
Service factors account for operational variables including shock loads, duty cycle, ambient temperature, and starting frequency. A standard industrial application typically requires a 1.4 service factor, while applications with heavy shock loads or 24/7 operation may need 1.8-2.0. Our technical team can assist with precise calculations based on your specific operating conditions.
Can inline gearboxes handle both radial and axial loads?
Yes, our reinforced bearing configurations are specifically designed to accommodate combined radial and axial loads common in conveyor and material handling applications. Models with taper roller bearings provide exceptional moment load capacity while maintaining compact dimensions.
What maintenance intervals are recommended?
Under normal operating conditions with proper initial lubrication, our sealed units require minimal maintenance. We recommend visual inspection every 2,000 operating hours and lubricant replacement every 10,000 hours or annually, whichever occurs first. For detailed maintenance procedures specific to your model, consult the technical documentation available on our applications page.
Selecting the right inline speed reducer gearbox is crucial for optimizing your system performance and minimizing total cost of ownership. Our application engineering team brings decades of experience in motion control system design and can provide customized solutions for complex integration challenges. Whether you need assistance with thermal analysis, mounting configurations, or motor matching calculations, we're here to ensure your success.
Request detailed technical specifications, CAD models in multiple formats, or schedule a consultation with our engineers to discuss your unique requirements. For immediate assistance with product selection, custom modifications, or technical inquiries, please contact our team today. We're committed to delivering precision-engineered solutions that exceed your performance expectations and operational requirements.
