Power: 0.8~12934KW
Ratio: 25~280
Torque: 22000~1920000N.m
Speed: 2.7~60r/min
Shaft: Hollow shaft , Solid shaft
Mounting: Foot mounted, Motor brackt, Torque arm
Certification: CE/ ISO9001/BV/SGS
| Quantity: | |
|---|---|
As a professional industrial gearbox manufacturer, BAFFERO brings over 35 years of expertise to the design and production of power transmission solutions. Our commitment to rigorous quality control and efficient supply chain management ensures that your operational needs are met with fast delivery and reliable technical support.

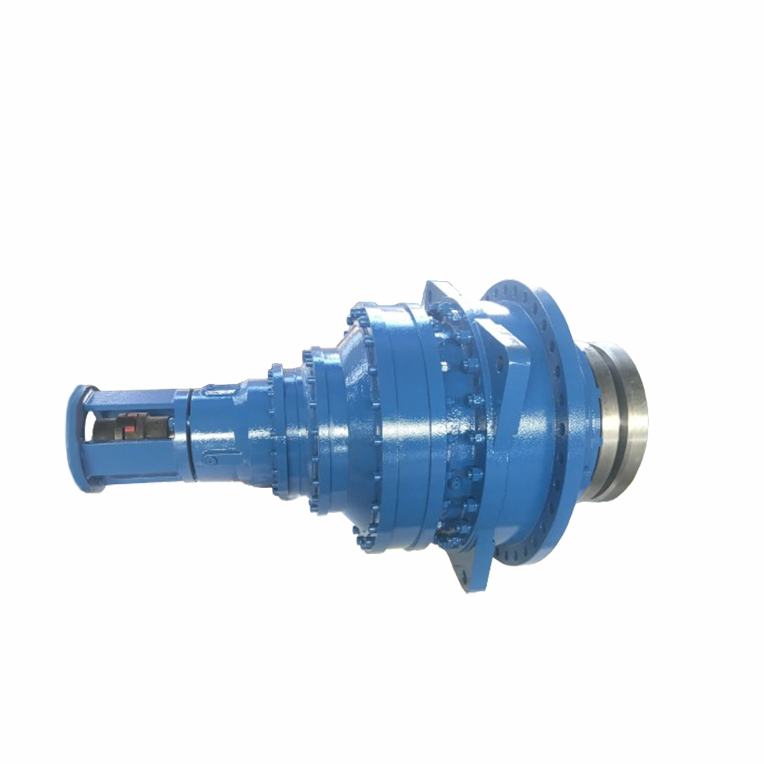

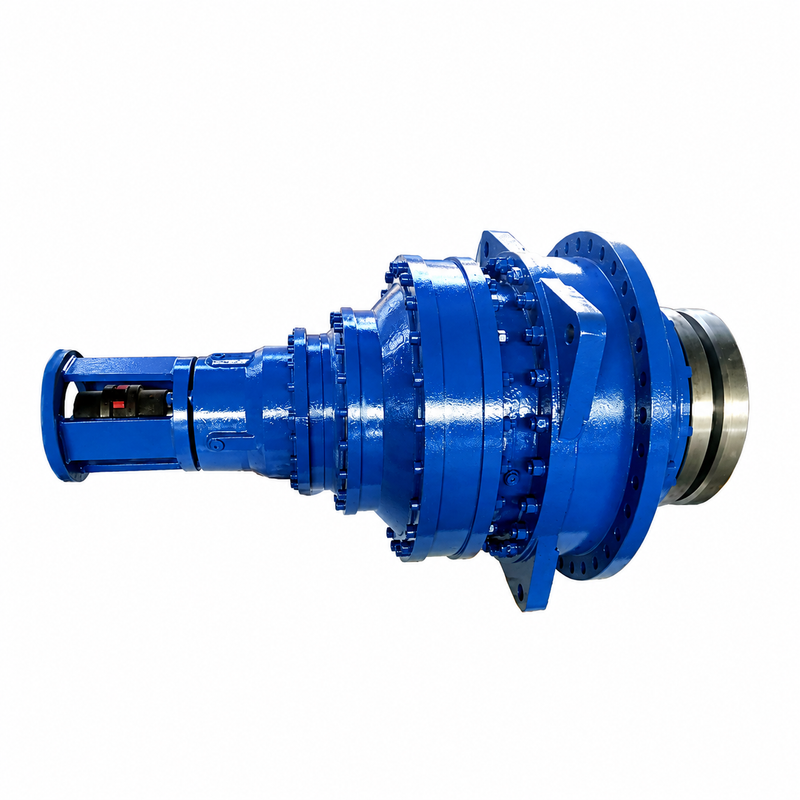

The DP Series Cast Iron Coaxial Planetary Gear Speed Reducer is engineered for heavy-duty applications requiring exceptional torque output and long-term stability. Featuring a robust cast iron casing and precision-machined gears, this series offers a wide range of ratios and output speeds, making it highly adaptable for demanding industrial environments and complex equipment configurations.
| Product Name | DP Series Inline Planetary Gearbox |
| Model Number | DP2N9~DP2N36; DP3N9~DP3N36 |
| Input Power | 0.8~12934KW |
| Ratio | 25~280 |
| Output Torque | 22000~1920000 N.m |
| Output Speed | 2.7~60r/min |
| Output Shaft | Hollow shaft , Solid shaft |
| Mounting | Foot mounted, Motor brackt, Torque arm |
| Gear Precision | DIN6 (ISO1328) |
Gear Arrangement | Planetary gear |
Gearbox Casing Material | Cast Iron |
Gear Material | 20CrMnTi |
Gear Hardness | HRC58 ~62 |
Shaft | 40Cr and 20CrMnTi |
Color | As requirement |
Gear Heat treatment Processing | Carburizing and Quenching |
Designed for continuous operation under severe conditions, the DP series provides reliable power transmission across various heavy industries. Its high torque capacity and shock load resistance make it the ideal choice for critical equipment setups, significantly reducing the risk of unexpected downtime.
Mining and cement: Ideal for apron conveyors, bunker dischargers, and scratchers, providing consistent driving force even in dusty and high-load environments.
Steel Production: Engineered for pilger rolling mills and reversing rolling mills, ensuring precise speed control and enduring extreme operational stress.
Food and beverage: Suitable for heavy-duty industrial mixers, delivering stable output for consistent product quality.
Other fields of application: Widely utilized in chain conveyors and material handling systems, offering long-term reliability.
To ensure seamless integration into your existing machinery and reduce installation complexity, the DP Series offers a variety of mounting configurations. This versatility allows engineers to select the most efficient setup for their specific mechanical requirements.
Cylindrical shafts with parallel keys for standard, reliable connections.
Cylindrical shafts with splines for high-torque, heavy-duty transmission.
Hollow shafts with shrink disc for backlash-free, secure friction fits.
Hollow shafts with splines for compact and robust integration.
Flanged shafts designed for direct and stable equipment mounting.
The durability and efficiency of our Cast Iron Coaxial Planetary Gear Speed Reducer stem from rigorous gear processing technologies. We utilize premium 20CrMnTi materials and advanced heat treatment to maximize gear life and optimize overall transmission performance.
Sun and planet gears: Sun and planet gears have spur gear teeth and are case-hardened and precision-ground to ensure smooth engagement and high load-bearing capacity.
Annulus gears: Annulus gears are mostly quenched and tempered and shaped or ground, depending on specific size and torque requirements, to maintain structural integrity.
Bevel gears: Bevel gears are case-hardened and, depending on size, lapped, HPG-cut or ground, ensuring efficient power redirection and reduced noise levels.
Primary gear: The gears and gear shafts of the primary gear stages have helical teeth and are case-hardened and ground, providing superior contact ratios and efficient torque transfer.
The DP series includes not only the highly integrated planetary gear motor but also maximum conformity with all international motor standards, ensuring that quality and performance bear a sensible relationship to life cycle costs and price. Furthermore, specialized options such as temperature control, explosion protection, taconite seals, a design for extreme temperatures down to -40℃, and various mounting options guarantee optimal availability and fail-safe operation even under demanding conditions.
To ensure optimal performance and compatibility, please provide our engineering team with the following details:
Based on these parameters, we will recommend the most suitable and cost-effective model for your project.
Both DP and HB series reducers are suitable for applications requiring very high torque output. Compared to the traditional H/B series helical/bevel gearboxes, the DP series features a relatively smaller volume, a more compact coaxial design, and easier installation in space-constrained environments.
Partnering with BAFFERO means securing a reliable source for high-performance transmission equipment. Our core advantages include:
Send us your motor power, ratio, mounting type, and application details.
We will evaluate your requirements and recommend the best power transmission solution within 2 hours.
Zhejiang Baffero is a proud member of the China Transmission Association. Since 1991, our company has been dedicated to the development, manufacturing, and global sales of premium speed reducers. For over 35+ years, we have committed ourselves to continuous product development and talent reservation, adhering to the concept of people-oriented and technological innovation. We consistently provide our customers with first-class and reliable transmission equipment designed to enhance operational efficiency.
Our main product lines include planetary gear reducers, industrial helical gearboxes, elevator drives, and other specialized series products. These are widely used in metallurgy, mining, lifting and conveying engineering, environmental engineering, petrochemicals, plastics, food packaging, and other heavy industries. With excellent quality, competitive pricing, and a stellar reputation, BAFFERO products have become the preferred choice of industrial clients and are successfully exported to Europe, Southeast Asia, and other key global markets.
