| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | China |
Gearbox Information

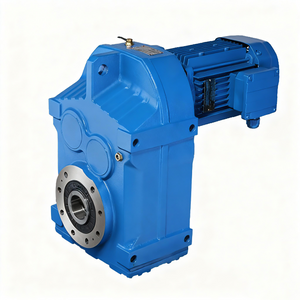

| Product Name | Parallel shaft helical gear reducer |
| Model Number | F37- F157 |
Output Speed | 0.16-1028 r/min |
Rated Power | 0.18-200KW |
Output Torque | 200~18000N.m |
Gear Type | Helical |
Ratio | 3.81 - 198.14 |
Gear Precision Level | DIN6 |
Housing Material | HT200/ HT250 high-strength cast iron |
Gear Material | 20CrMnTi |
Input / Output Shaft Material | 40Cr |
Input Power and Torque (MAX)
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating (kw) | 0.183 | 0.18-3 | 0.18-5.5 | 0.37-5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
(Ratio) | 3.81-128.51 | 5.06-170.27 | 5.18-199.70 | 4.21-196.46 | 4.20-243.46 | 4.12-270.68 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-198.14 |
Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear Unit Weight
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Weight (KG) | 12 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
Main Options
Backstop
Low backlash type
Lateral holes for side mounting
F Series Gear Reducer FAQ
The F Series Parallel Shaft Helical Gear Reducer is a compact, high-performance transmission solution designed for demanding industrial applications. With its parallel shaft structure, it provides high torque output, space-saving installation, and stable operation, making it ideal for modern automation systems.
1. How do I choose the right F series gear reducer quickly?
Provide the following:
Motor power (kW)
Input speed (rpm)
Output speed or ratio
Mounting type
2. What heat treatment and hardness do your gears have?
Gear surface hardness: HRC58–62
Core hardness: HRC33–40
3. What is your gear manufacturing process?
Our process includes:
Forging → Rough machining → Normalizing → Gear hobbing → Carburizing → Grinding → Finishing
4. What industries are F series gear reducers used in?
F series parallel shaft helical gear reducers are widely used in conveying systems, food processing, wastewater treatment, packaging machinery, metallurgy, and chemical industries.
They are especially suitable for applications requiring compact structure and high torque output.
5. What certifications do you have?
CE Certification
ISO9001 Quality System
Third-party inspection (SGS available)
6. Do you support customization?
Yes:
Shaft size
Flange size
Special ratio
Mounting type
Send us:
Power / Speed / Torque
Drawing or application
We will provide solution + quotation within 12–24 hours
