| Quantity: | |
|---|---|
Brand Information
| Brand Name | BAFFERO |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SGS |
| Shipping Port | Shanghai or Ningbo |
Place of Origin | China |
Gearbox Information

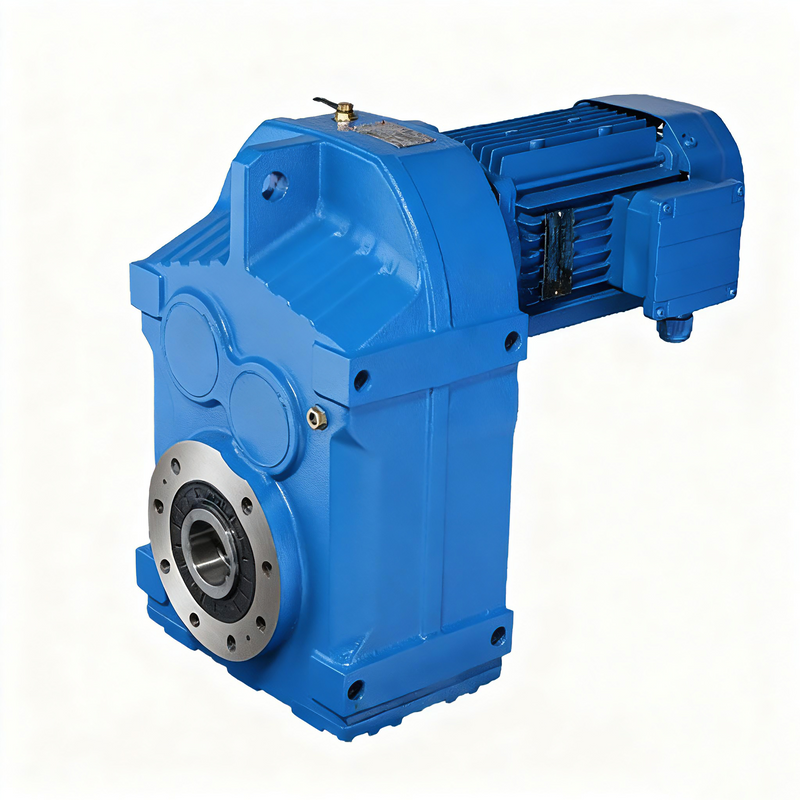

| Product Name | Parallel Shaft Speed Reducer |
| Model Number | F37- F157/FF37-FF157/FA37-FA157 |
Output Speed | 0.16-1028 r/min |
Rated Power | 0.18-200KW |
Output Torque | 200~18000N.m |
Gear Type | Helical |
Ratio | 3.81 - 198.14 |
Gear Precision Level | DIN6 |
Housing Material | HT200/ HT250 high-strength cast iron |
Gear Material | 20CrMnTi |
Input / Output Shaft Material | 40Cr |
Input Power and Torque (MAX)
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating (kw) | 0.183 | 0.18-3 | 0.18-5.5 | 0.37-5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
(Ratio) | 3.81-128.51 | 5.06-170.27 | 5.18-199.70 | 4.21-196.46 | 4.20-243.46 | 4.12-270.68 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-198.14 |
Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear Unit Weight
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Weight (KG) | 12 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
Main Options
Backstop
Low backlash type
Lateral holes for side mounting
F Series Parallel Shaft Helical Gear Reducer – FAQ
The F Series Parallel Shaft Helical Gear Reducer is a compact, high-performance transmission solution designed for demanding industrial applications. With its parallel shaft structure, it provides high torque output, space-saving installation, and stable operation, making it ideal for modern automation systems.
1. How do I choose the right F series gear reducer quickly?
Provide the following:
Motor power (kW)
Input speed (rpm)
Output speed or ratio
Mounting type
2.What is the machining accuracy of your gearbox?
Gear accuracy: GB/T10095 Grade 6
This ensures:
Smooth transmission
Low vibration
Low noise
3. Can your F series gearbox replace SEW or Bonfiglioli?
Yes, our gear reducers are:
Dimension-compatible
Performance-equivalent
Send us your old model or nameplate for 1:1 replacement
4. Need technical confirmation or drawing support?
Send us:
Power / Speed / Torque
Drawing or application
We will provide solution + quotation within 12–24 hours
5. What bearings and oil seals do you use?
1)Bearings:
C&U
HRB (Harbin)
ZWZ
LYC
2) Oil seals:
NAK (Taiwan)
Reliable components ensure stable performance
About Us
Zhejiang Baffero Driving Equipment Co., Ltd. is a leading gear reducer manufacturer established in 1991, specializing in high-efficiency planetary gearmotors. With 300 employees, 5% R&D staff, ISO9001 and CE certification, the company ensures quality through advanced automation and strict procurement standards. Its products serve food, chemical, and textile industries, offering wide ratios and durable cast iron housings.
