Power: 0.37~12934KW
Ratio: 25~280
Torque: 22000~2600000N.m
Speed: 2.7~60r/min
Shaft: Hollow shaft , Solid shaft
Mounting: Foot mounted, Flange mounted, Torque arm mounted
Certification: CE/ ISO9001/ BV/ SGS
| Quantity: | |
|---|---|

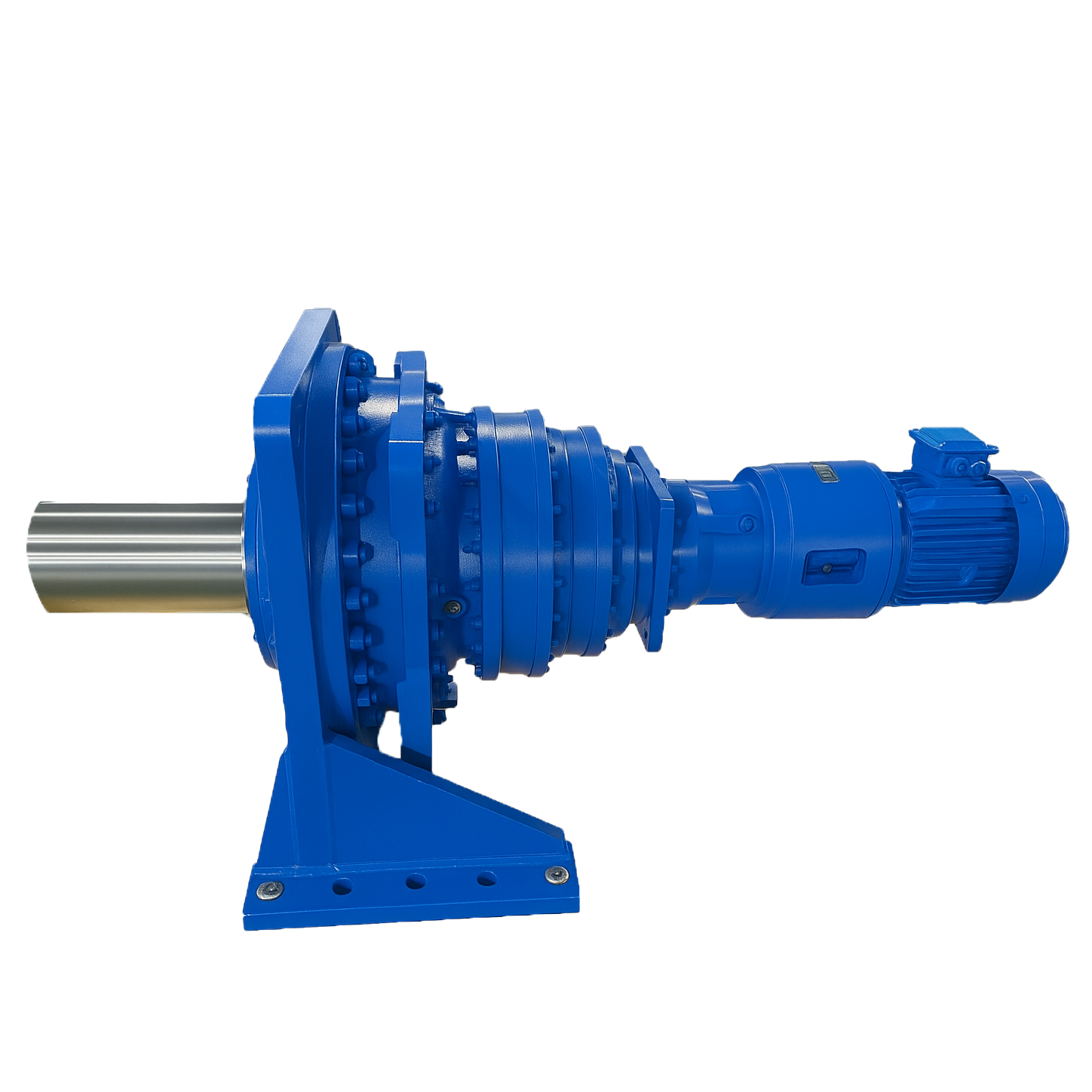

The Brevini Parallel Shaft Planetary Gear Box Motor, specifically engineered within our DP Series, represents a pinnacle of industrial power transmission. Designed to handle extreme radial and axial loads, this heavy-duty unit ensures unwavering kinetic delivery even under the most punishing operational environments. When you run your hands along the rugged cast iron casing, you can feel the substantial physical heft and structural integrity built to withstand severe mechanical stress. The internal components, machined from premium alloy steel, emit the distinct, clean metallic scent of precision engineering. By integrating optimized heat dissipation fins and advanced bearing solutions, this gearbox provides exceptional thermal capacity, allowing for continuous, round-the-clock operation without the risk of overheating. Every unit is meticulously assembled to deliver a low-decibel, vibration-controlled performance that facility managers rely on to maintain critical production schedules.
| Brand Name | BAFFERO |
|---|---|
| Experience | 35+Years |
| MOQ | 1 Set |
| Delivery Time | 25 Days |
| Warranty Time | 12 Months |
| Certification | CE/ ISO9001/ BV/ SG |
| Supply Ability | 10000 Pcs per a month |
| Shipping Port | Shanghai or Ningbo |
| Place of Origin | China |
| Geabox Name | DP Series Planetary Gearbox |
|---|---|
| Gearbox Model | DP2N9~DP2N36; DP3N9~DP3N36 |
| Input Power | 43~12934KW(2-Stage); 6.2~1953KW(3-Stage) |
| Input Speed | 750; 1000; 1500 |
| Output Torque | 22000~2600000(2-stage); 22000~1920000(3-stage) |
| Gear Precision | DIN6 (ISO1328) |
| Gear Arrangement | Planetary gear |
| Gearbox Casing Material | Cast Iron |
| Gear Material | 20CrMnTi |
| Gear Hardness | HRC58 ~62 |
| Shaft | 40Cr and 20CrMnTi |
| Color | As requirement |
| Gear Heat treatment Processing | Carburizing and Quenching |
The DP Series is purpose-built to conquer the most demanding industrial sectors. By delivering massive torque output in a compact footprint, it solves critical space constraints while maintaining absolute reliability. Equipment operators and maintenance teams benefit from its predictable performance across various heavy-duty applications:
Adaptability is a cornerstone of the DP Series design. We understand that no two industrial setups are identical, which is why this planetary speed reducer features a highly flexible, modular output interface. This design philosophy ensures seamless compatibility with diverse industrial equipment, significantly reducing installation time and engineering overhead for procurement teams. Optional configurations include:
The foundation of the DP Series' longevity lies in its uncompromising material selection and core craftsmanship. The gearbox casing is cast from high-strength iron, engineered with a geometry that inherently dampens acoustic resonance and mechanical vibration. Inside, the 20CrMnTi alloy steel gears undergo a rigorous carburizing and quenching heat treatment process. This creates a formidable surface hardness of HRC58~62 that resists abrasive wear, while maintaining a ductile core capable of absorbing sudden kinetic spikes.
This rigid, thermally optimized housing provides significantly higher impact resistance and better load distribution across the gear teeth. By keeping internal bearing alignments perfectly true even under extreme stress, it guarantees stable operation under severe shock loads. The strategic placement of cooling fins maximizes surface area, establishing an exceptional thermal capacity that makes the unit entirely suitable for continuous, unyielding industrial operation in harsh climates.
The DP Series Planetary Gearbox is designed for heavy-duty industrial applications requiring extremely high torque, compact installation space, and reliable power transmission. Compared with standard planetary gearboxes, the DP series offers larger load capacity and higher output torque, making it suitable for mining, material handling, steel processing, cement plants, and large conveyor systems. Below are common inquiries from our technical partners and procurement specialists.
If your required output torque exceeds 100,000 N.m, or your equipment operates under extremely heavy, unpredictable loads, the DP series is generally a better choice. Its reinforced bearings and optimized gear geometry are specifically calibrated to prevent fatigue failure in high-stress applications, ensuring your production lines remain active.
Yes. We support extensive OEM manufacturing capabilities. Our engineering facility can modify customized ratios, output shafts, motors, and mounting configurations to align perfectly with your existing infrastructure, eliminating the need for expensive structural modifications on your end.
To select the correct model and mitigate any procurement decision risks, please provide our technical team with the following parameters:
Our engineering team provides comprehensive technical support and selection resources, including detailed parameter sheets and downloadable installation manuals, to recommend the most suitable, cost-effective solution for your facility.
Securing a dependable supply chain for critical transmission components is vital for operational continuity. Zhejiang Baffero provides a streamlined, professional procurement experience designed to meet tight project deadlines and exacting technical specifications. We offer:
Contact us now for dedicated technical support, detailed dimensional drawings, and an immediate quotation.
Zhejiang Baffero Driving Equipment Co., Ltd. is a professional gearbox manufacturer with over 35 years of dedicated experience in heavy-duty transmission equipment. Walking through our production floors, you will witness the meticulous orchestration of advanced CNC machining centers and the low hum of comprehensive load-testing bays. The company specializes deeply in the design, engineering, and production of planetary gearboxes, helical gear reducers, and large-scale industrial gear units.
Certified with ISO9001 and CE standards, Baffero ensures strict quality control and predictable, reliable performance across all product lines. Every gear set is inspected to meet strict DIN6 precision tolerances before leaving our facility. Because of this unwavering commitment to mechanical excellence, our products are widely trusted and utilized in metallurgy, mining, cement processing, and material handling industries. We proudly export our engineered solutions to demanding markets across Europe, Southeast Asia, and the broader global industrial landscape, building lasting partnerships based on trust and performance.
