| Quantity: | |
|---|---|
Brand Information
Product Details

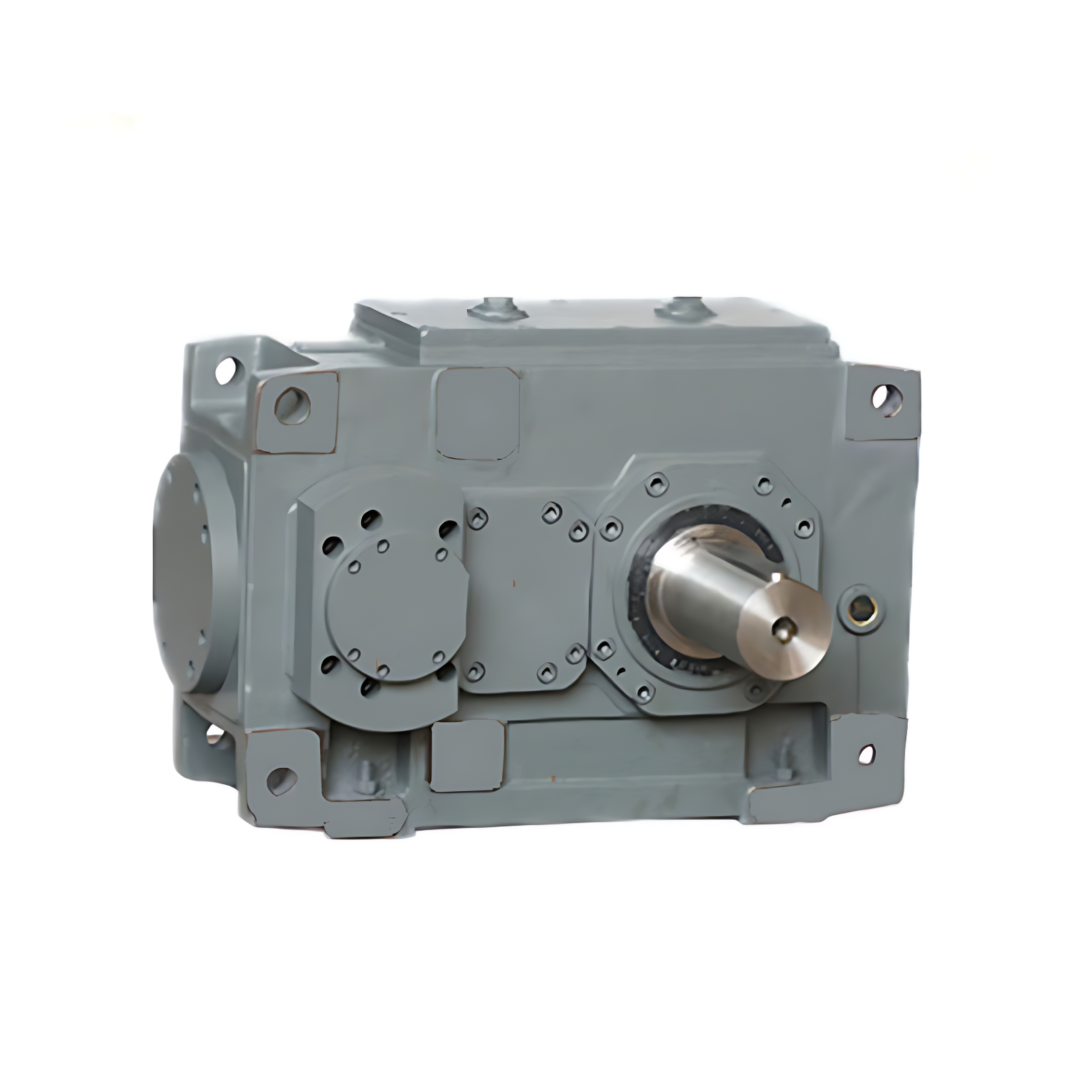

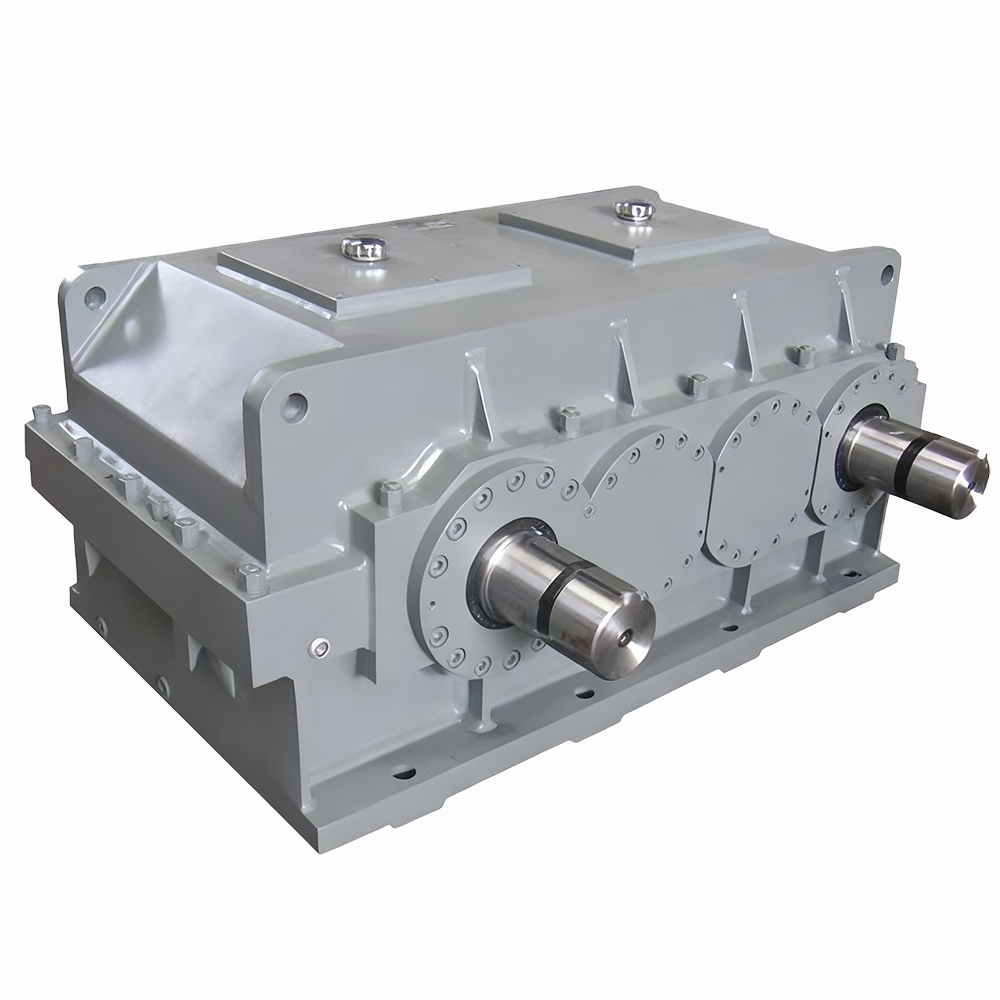

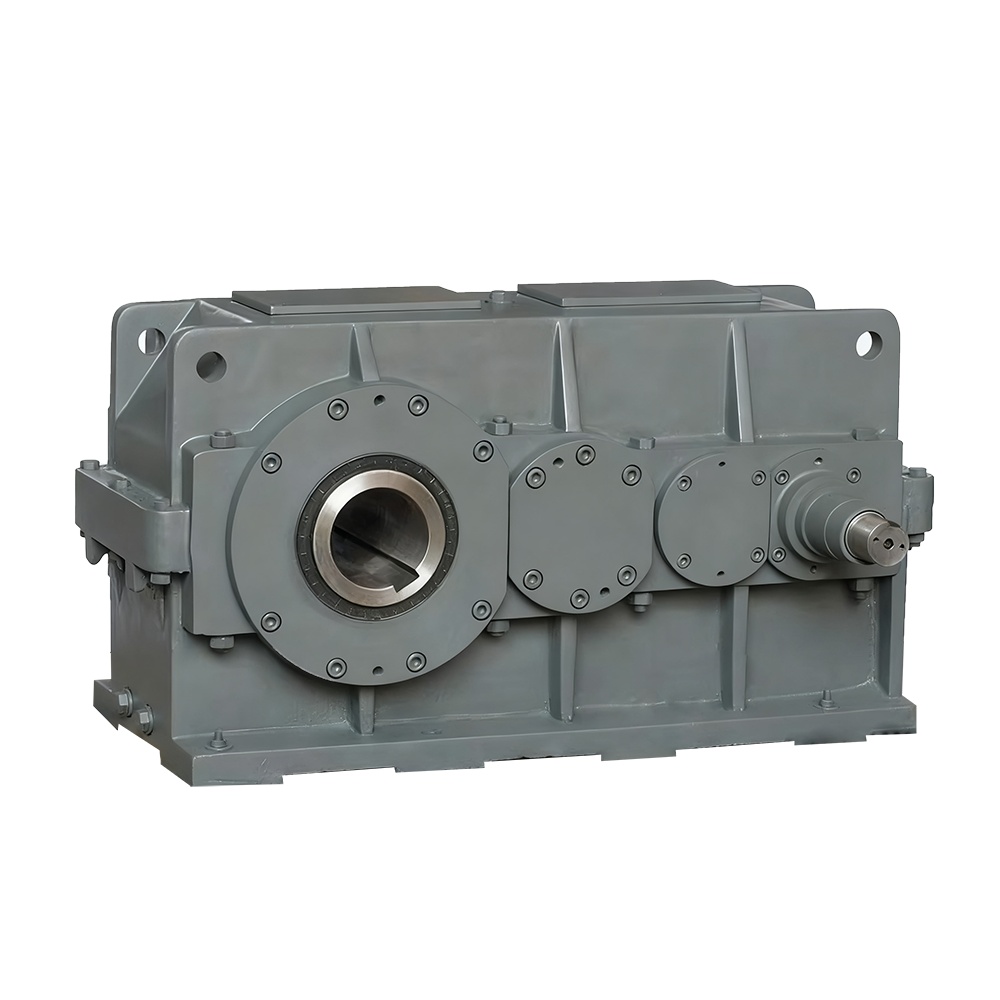

Product Name | High Torque Gearbox |
Model | H1 - H26 |
Gear Arrangement | Helical |
Output Torque | 790~ 470000Nm |
Rated Power | 2.2-5366KW |
Input Speed | Up to 2000r/min |
Output Speed | 1.7-1200r/min |
Ratio | 1.25 - 450 |
Gear Precision | DIN6 |
| Gearbox Casing Material | Cast Iron |
| Gear Material | 20CrMnTi |
| Gear Hardness | HRC58 ~62 |
Gear Heat treatment Processing | Carburizing and Quenching |
TECHNICAL DATA
FEATURES
1. Compacted structure and higher strength.
2. Reliable operation, higher transmission efficiency.
3. Providing the output shaft with Flange disc, which can meet mounting requirement of narrow space.
INSTALLATION
1. Foot Mounted
2. Flange Mounted
3. Shaft Mounted
Main Applications
- Conveyor & Material handling
- Mining & Quarry
- Crusher & Cement
- Automatic production line
- Transport & Packaging
- Food processing & Beverage
- Construction & Metal processing
- Plastic & Chemical industry
FAQ
1. How to choose a speed reducer which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter, etc.
2. What information shall we give before placing a purchase order?
a. Type of the gearbox, ratio, input and output type, input flange, mounting position and motor information.
b. Housing color
c. Purchase quantity
d. Other special requirements.
3. What industries are your gearboxes being used?
Our transmission gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalater, automatic storage equipment, metallurgy, tobacco, environment protection, logistics and etc.
4. Do you sell motor together?
Yes, but we don’t manufacture motor, we have several stable motor suppliers who have been cooperating with us for long time, they provide us high quality motors.
