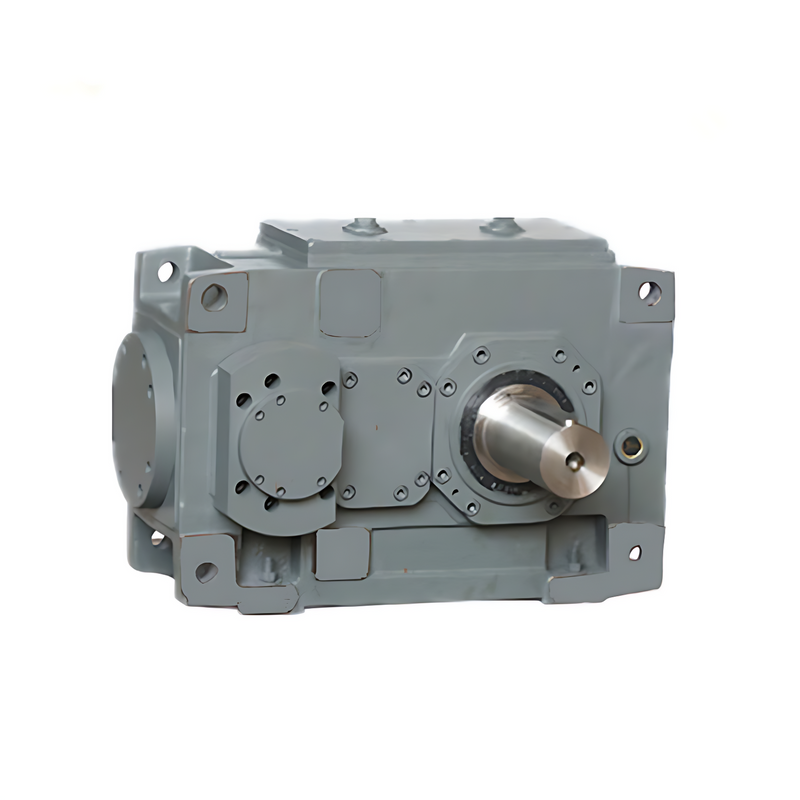

OVERVIEW
| Place of Origin | Zhejiang, China (Mainland) |
Model | H1 - H26 |
Brand Name | BAFFERO |
Gear Arrangement | Helical |
Output Torque | up to 470000Nm |
Rated Power | 2.2-5366KW |
Input Speed | Up to 2000r/min |
Output Speed | 1.7-1200r/min |
Ratio | 1.25 - 450 |
Gear Precision | ISO6 |
Gear Hardness | HRC58 ~62 |
Gear Heat treatment Processing | Carburizing and Quenching |
Warranty | 12 months |
FEATURES
Standard gear unit which can be installed horizontally or vertically
Nominal torque range from TKN = 3,100 Nm to 1,400,000 Nm with 28 sizes
Nominal transition range from i = 1.25 to 450
MAIN APPLICATIONS
harbor and shipping
Coal mining
Cement and construction
Metallurgy
Chemical industry and environmental protection
TECHNICAL DATA
| Technical data | |||
Gear Unit Type | Stages | Ratio | Rated torque(KNm) |
Helical gear unit H... | 1,2,3 and 4-stage | 1.25 - 450 | 1 - 900 |
Helical gear unit B... | 2,3 and 4-stage | 5 - 400 | 1 - 900 |
BASIC TYPES
| Horizontal Mounting Position Helical Gear unit Type: H1….H2….H3….H4… 1~ 4 Stage Transmission, IN=1.25 - 450 | |
H..SH:
| H..HH
|
H..DH:
| H…HM,H…DM
|
Vertical Mounting Position | |
H..SV:
| H….HV.
|
