Inline Helical Gear Reducer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

R series helical gear reducer is designed based on modularization, which bring many difference kinds of combinations, mounting types, and structure designs. The gear reducer is widely used in Conveyor & Material handling, Mining & Quarry, Crusher & Cement, Automatic Production Line, Transport & Packaging, Food processing & Beverage, Construction & Metal processing, Plastic & Chemical industry, etc.


BRAND INFORMATIOM

• Brand: BAFFERO

• Model: R37...167/ RX31-151

• Certification CE / SGS / BV

• Place of Origin CHINA


OVERVIEWS

Gearing Arrangement

Helical

Output Torque

UP TO 18000N.m

Rated Power

0.18-160kw

Input Speed

Less than 2000r/min

Output Speed

0.16-1028r/min

Ratio

1.3 - 196.41

Material of housing

Cast Iron

Material of gear

20CrMnTi with grinding

Material of shaft

40Cr with carburizing and quenching

Mounting Type

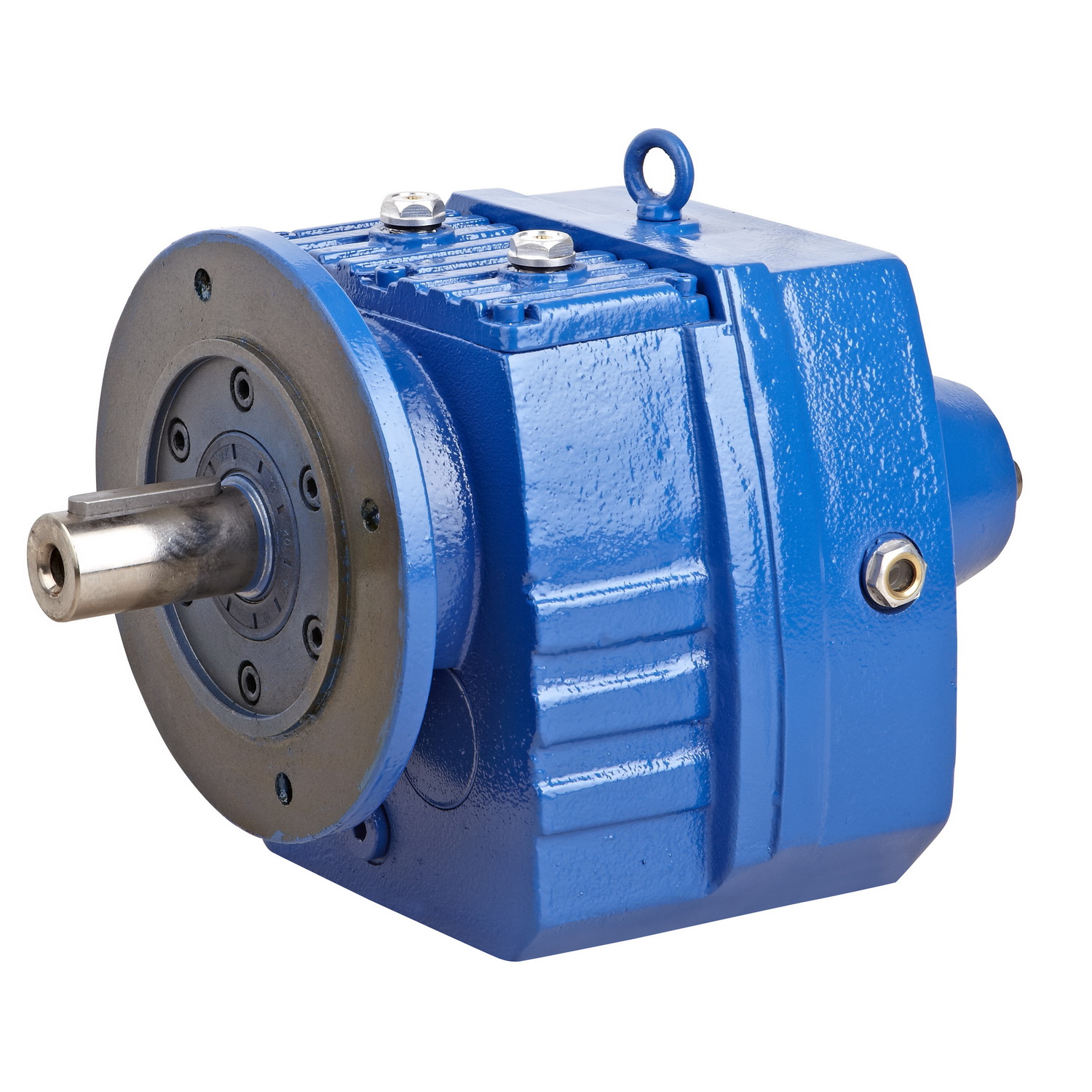

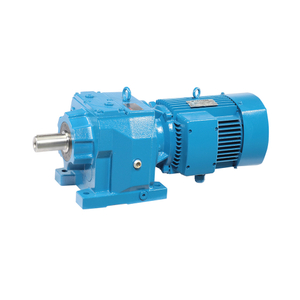

Foot mounted, Flange mounted

Input form

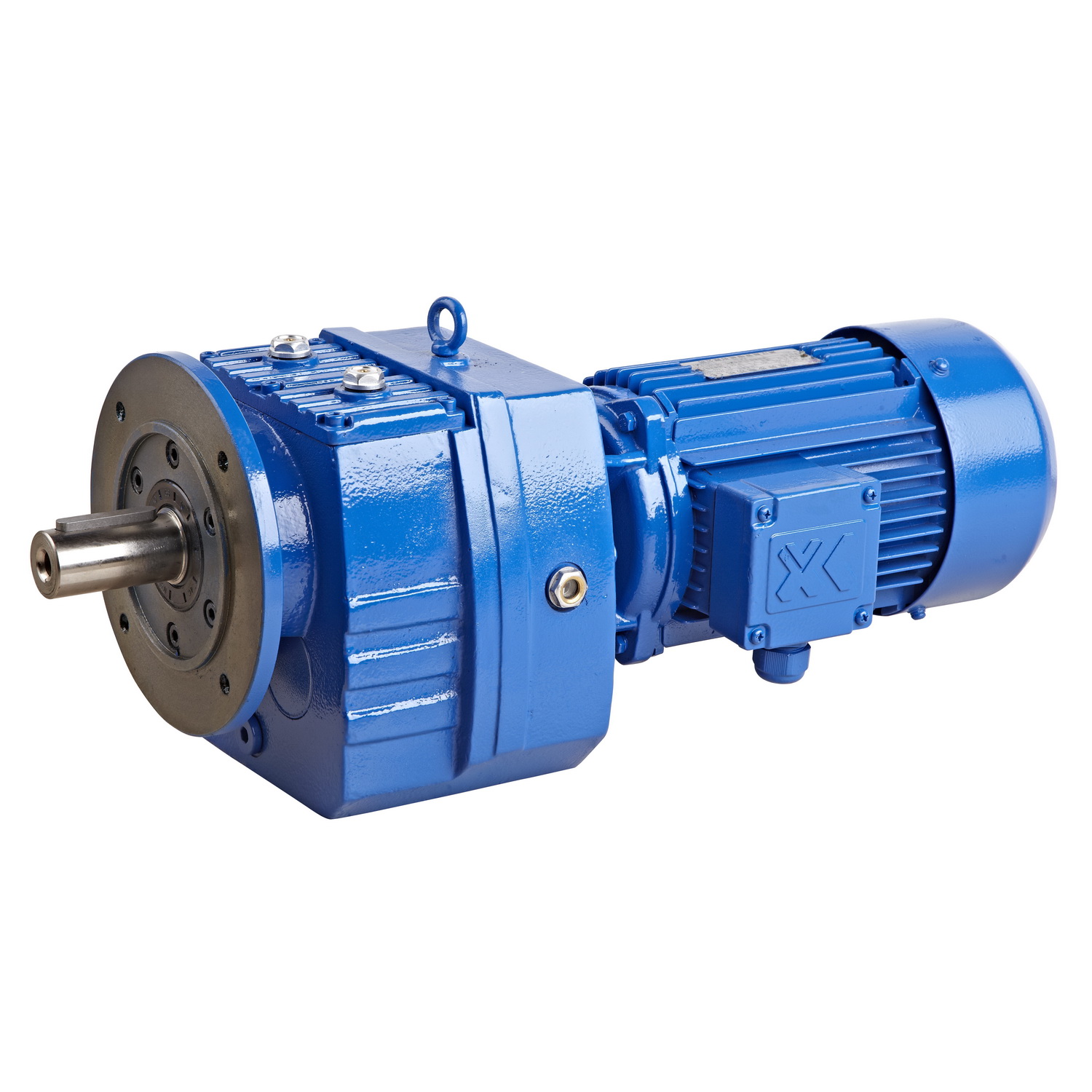

IEC flange, direct with motor, shaft input

Color

Blue RAL5010, Grey or other

Warranty

12 Months


FEATURE:

•Highly Standard Modular Designed
•Quality material ensures the product reliability
•High Strength, Compact Dimension
•Long Service Life
•Low Noise
•High Efficiency

•Large radial loading ability
•Axial load ability of up to 5% of radial load

• Transmission Efficiency: 2 stage (ratio: 5-24.8) = 96%

                             3 stage (Ratio: 27.2-264) = 94%


INPUT POWER RATING AND MAX TORQUE

Size

17

27

37

47

57

67

77

87

97

107

137

147

167

Structure

R RF

Input power rating (kw)

0.18-

0.75

0.18-

3

0.18

3

0.18-

5.5

0.18-

7.5

0.18-

7.5


0.18-

11

0.55-

22


0.55-

30

2.2-45

5.5-55

11-90

11-160

(Ratio)

3.83-

74.84

3.37-

135.09

3.41-

134.82

3.83-

167.65

4.39-

189.69

4.29-

165.48

5.21-

195.24

5.36-

246.54

4.49-

264.42

5.06-

245.5

5.15-

223.34

5.00-

163.46

8.77-

196.41

Max torque (N.m)

85

130

200

300

450

600

820

1550

3000

4300

8000

13000

18000
