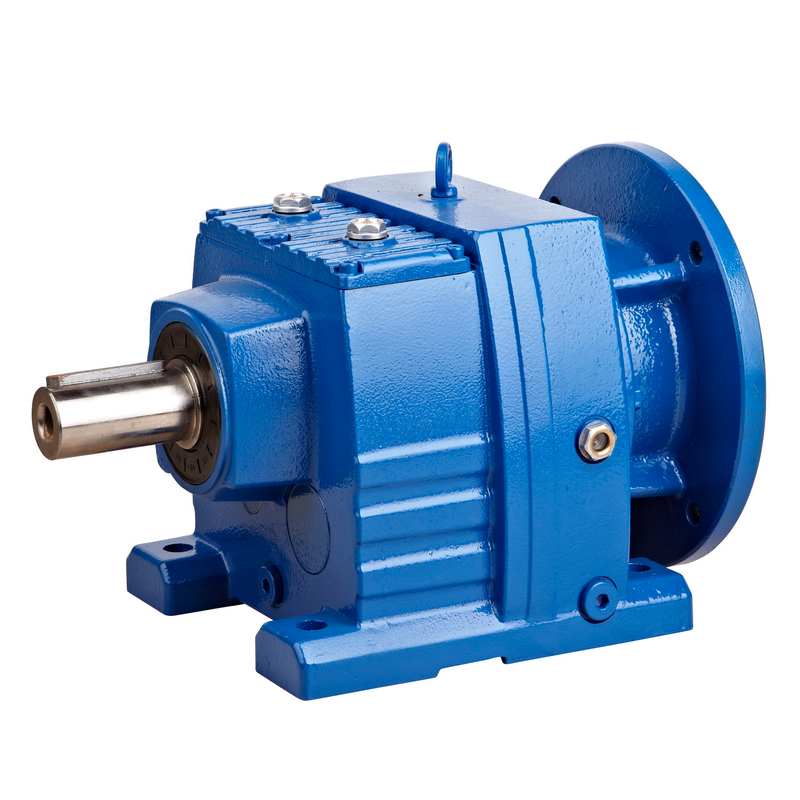

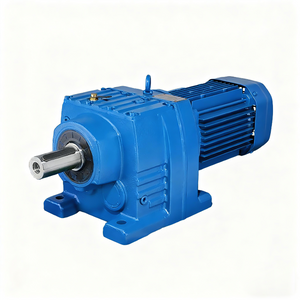

R series helical gear reduction motor is used to reduce the motor speed and improve the output torque. The gear reduction motor are based on the building block design, so it is convenient for them to fit all types of motors or to connect with other power input, and it’s possible for different types of machines to combine or connect. It has been widely used in metallurgy, mining, petroleum, chemical industry, ship, light industry, food, textile, printing and dyeing.
BRAND INFORMATIOM
• Brand: BAFFERO
• Model: R37...167/ RX31-151
• Certification CE / SGS / BV
• Place of Origin CHINA
MAIN APPLICATIONS
• Conveyor & Material handling
• Mining & Quarry
• Crusher & Cement
• Automatic production line
• Transport & Packaging
• Food processing & Beverage
• Construction & Metal processing
• Plastic & Chemical industry
OVERVIEWS
Gearing Arrangement | Helical |
Output Torque | UP TO 18000N.m |
Rated Power | 0.18-160kw |
Input Speed | Less than 2000r/min |
Output Speed | 0.16-1028r/min |
Ratio | 1.3 - 196.41 |
Material of housing | Cast Iron |
Material of gear | 20CrMnTi with grinding |
Material of shaft | 40Cr with carburizing and quenching |
Mounting Type | Foot mounted, Flange mounted |
Input form | IEC input flange, direct with motor, shaft input |
Color | Blue RAL5010, Grey or other |
Warranty | 12 Months |
ADVANTAGES
•High power density
•Compact construction, saves space for mounting, large load-bearing capacity and long service life.
•R37 to R167 Compact optional model
•Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotational speed.
• RM series, specially designed for agitating applications
• Supply Ability: 5000 Sets per Month
AVAILABLE VERSIONS
• Single-stage or multi-stage
• Foot-mounted or flange-mounted
• Foot-mounted and flange-mounted
• Flange-mounted with extended bearing hub
• Transmission Efficiency: 2 stage (ratio: 5-24.8) = 96%
3 stage (Ratio: 27.2-264) = 94%
PACKAGING & DELIVERY
Packaging Details: Standard export plywood case
Port: Ningbo / Shanghai and other China port
