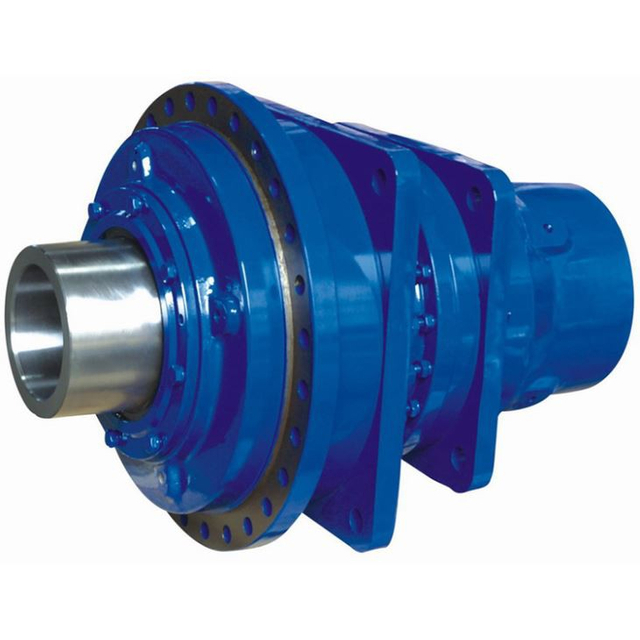

High Torque Inline Planetary Gearbox

Input Power: 0.8~12000KW
Ratio: 25~4000
Output Torque: 200~50000 N.m
Output Speed: 0.19~60r/min
Output Shaft: Hollow shaft , Solid shaft
Mounting: Foot mounted, Flange mounted
Certification: CE/ ISO9001/BV/SGS

Quantity:
Availability:





Inquire Add to Basket

Brand Information

Brand Name	BAFFERO
Experience	30+Years
MOQ	1 Set
Delivery Time	25 Days
Warranty Time	12 Months
Certification	CE/ ISO9001/ BV/ SGS
Shipping Port	Shanghai or Ningbo
Place of Origin	China

Product Details

Gear Precision	DIN6 (ISO1328)
Gear Arrangement	Planetary gear
Gearbox Casing Material	Cast Iron
Gear Material	20CrMnTi
Gear Hardness	HRC58 ~62
Shaft	40Cr and 20CrMnTi
Color	As requirement
Gear Heat treatment Processing	Carburizing and Quenching

Feature :

High modular design.
Compact design and dimension, light weight.
Wide range of ratio, high efficiency, stable running and low noise level.
Several planet wheels run with load at the same time and distribute the power to realize the combination and separation of moving.
Realize the coaxial transmission easily.
Rich optional accessories
Fast after serivce (within 24 hours)

DP series Planetary gearbox :
DP Planetary gearbox is standardized gear unit solutions for higher power rating ranges in the proven FLENDER quality. With 27 sizes and seven basic types the DP series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1. .And it widely used for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc .

Hot Tags: flender right angle planetary gearbox, China, manufacturers, suppliers, factory, customized, low price, High Torque Inline Planetary Gearbox, Right Angle Planetary Gear Units, Hollow Shaft Planetary Gear Units, Planetary Gearbox, High Torque Planetary Gearbox, Flender Right Angle Planetary Gearbox


Explanation of Types	Explanation of above example
Gear unit type DP series planetary gear units	Two planetary gear stages transmission
Number of planetary gear stage Two stages Three stages	Two stage planetary gear unit
Structure: N standard L Bevel Gear stage S Helical Gear stage K bevel-helical gear stage	Helical gear stage
Output shaft: AZ: hollow shaft with shrink disk AH Hollow shaft with involute splines BS Solid shaft with key BH Solid shaft with involute splines	Hollow shaft with shrink disk
Size: 9-36	12
Ratio Up to 4000	80
Mounting position B500-B556 Horizontal V100-B130 Vertical V300-V330 Vertical ……..	Mounting position B512B553 : Horizontal ,input shaft at the right side, torque reaction arm on down side
Direction code of rotation of input shaft for bevel gear stage(Viewing on input shaft): CW : Clockwise CCW: Counter Clockwise	Helical gear stage omitted
Add-on pieces 99 None 96 gear housing base 70 motor bell housing(input) 71 motor bracket 72 motor bracket 73 motor swing-base 74 bell-housing (output) 75 torque arm(one side) 76 torque arm(two side) 77 torsion shaft support	Add-on the gear housing base motor belling housing (input)


Explanation of Types	Explanation of above example
Gear unit type DP series planetary gear units	Two planetary gear stages transmission
Number of planetary gear stage Two stages Three stages	Two stage planetary gear unit
Structure: N standard L Bevel Gear stage S Helical Gear stage K bevel-helical gear stage	Helical gear stage
Output shaft: AZ: hollow shaft with shrink disk AH Hollow shaft with involute splines BS Solid shaft with key BH Solid shaft with involute splines	Hollow shaft with shrink disk
Size: 9-36	12
Ratio Up to 4000	80
Mounting position B500-B556 Horizontal V100-B130 Vertical V300-V330 Vertical ……..	Mounting position B512B553 : Horizontal ,input shaft at the right side, torque reaction arm on down side
Direction code of rotation of input shaft for bevel gear stage(Viewing on input shaft): CW : Clockwise CCW: Counter Clockwise	Helical gear stage omitted
Add-on pieces 99 None 96 gear housing base 70 motor bell housing(input) 71 motor bracket 72 motor bracket 73 motor swing-base 74 bell-housing (output) 75 torque arm(one side) 76 torque arm(two side) 77 torsion shaft support	Add-on the gear housing base motor belling housing (input)
